How to Affordably Add Battery Capacity to EcoFlow Wave 3?

It's well known among Wave 3 portable air conditioner owners that expanding the unit's runtime the official way means buying EcoFlow's own extra cable, built on a proprietary communication protocol, paired with their designated expansion battery, both sold through EcoFlow's official site. The entire package tends to run expensive for what it actually delivers, and the added capacity often leaves owners wanting more, especially anyone using the Wave 3 as a portable air conditioner for car camping trips or extended stretches off-grid, where runtime is the whole point.

Why is Expanding Wave 3 Capacity Through EcoFlow So Expensive?

EcoFlow's expansion path locks you into their ecosystem at every step. The cable uses a proprietary connection method, the battery is a fixed model at a fixed capacity, and there's no meaningful way to shop around once you've decided to add runtime to your Wave 3. That's a workable path if price and capacity aren't a concern, but for most people looking for an EcoFlow Wave 3 external battery, the return on that spending doesn't match what a portable air conditioner setup actually needs for a full day or overnight session away from shore power.

What Is WattLINK and How Does It Change That?

WattLINK cable is WattCycle's answer to that lock-in. After a long stretch of testing and several rounds of product refinement, WattCycle developed a cable that connects cleanly to both the Wave 3 and the Delta 2/3 series, with no special installation steps, no added converter box, no adapters, no splitters, no extra hardware in between the two. Features an industrial-grade 8AWG construction with custom EcoFlow-compatible interfaces (M8 to XT150 plugs) that activate the expansion battery port. You plug it in and it works, which opens the door to pairing the Wave 3 with a third-party battery at a meaningfully larger capacity than EcoFlow's own expansion pack offers, at a lower cost per watt-hour.

What Should You Look for in a Compatible External LiFePO4 Battery?

If you're shopping around rather than sticking with a single recommended product, here are the 5 things actually worth checking before buying an external battery for this kind of setup:

• Matched voltage: The expansion LiFePO4 battery needs to be rated for 48V, matching the EcoFlow Wave 48V system exactly. The Wave 3 runs on a 48V system, 51.2V nominal to be precise. That single number is the reason voltage matching matters before you buy anything to pair with it, since a battery built for a different voltage simply won't work here, no matter how much capacity it claims to offer. A 12V or 24V battery won't work here without an additional voltage-boosting step, which adds cost and complexity you don't need.
• LiFePO4 cell chemistry: Running a portable air conditioner is a sustained load, not a brief burst, and LiFePO4 cells handle that kind of continuous draw with far more thermal stability than other lithium chemistries.
• BMS protection: Look for a battery management system with real, tested protection coverage (over-current, over-voltage, short circuit, thermal cutoff), ideally backed by more than a single line on a spec sheet.
• Charge and discharge balancing quality: Poor balancing between cells shows up as voltage sag under load, which is exactly the situation a running compressor creates. Active balancing outperforms passive balancing here by a wide margin.
• A connector path that actually reaches the Wave 3: Even a great battery is useless for this purpose if there's no cable, like WattLINK, that bridges its terminals to the Wave 3's XT150 port without a converter.

What Fuse or Breaker Protection Does This Setup Need?

As with any high-current DC connection, an inline fuse or breaker sized to the cable's rated capacity belongs between WattLINK and the battery. This isn't a special requirement unique to this pairing, it's the same standard practice you'd follow with any external battery setup, and it protects the wiring on both ends of the connection rather than leaving it exposed to a short circuit.

Which WattCycle Battery Delivers the Best Value for This Setup?

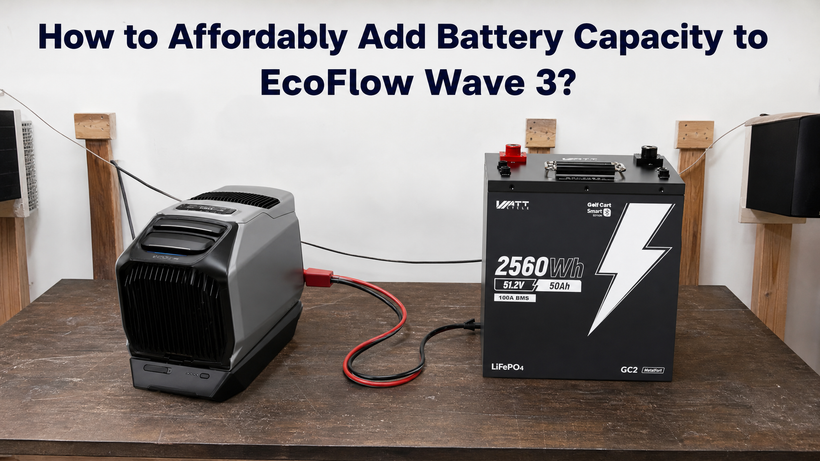

The WattCycle 48V 50Ah battery is built specifically for this kind of pairing. It delivers 2,560Wh at 51.2V nominal, LiFePO4 cells throughout, and it's designed to handle a sustained AC compressor load without the voltage sag that comes with weaker balancing hardware.

For anyone using this alongside a portable air conditioner, size and weight matter just as much as capacity, since you're not bolting this into a fixed compartment the way you might with a home storage setup. The battery uses a standard BCI GC2 footprint (10.4 x 7.2 x 13.02 inches), which means it drops into the same space a GC2 golf cart battery would occupy, no compartment modification needed. At 44 lbs, it's light enough to move between a golf cart, a trolling motor and boat, an RV compartment, or a spot next to your Wave 3 without needing a second person to lift it.

The bundle price is $499.99, which includes the WattLINK cable itself, so there's no separate cable purchase to plan for. We’ve prepared an exclusive offer for you. Use discount code BLOGEXTRA at checkout to get 6% off your order. It’s our way of saying thanks for being a blog reader. After using coupon code BLOGEXTRA, it costs only $469.99.

How Much Can You Actually Save Compared to EcoFlow's Own Add-On Battery?

Here's where the numbers make the case plainly. EcoFlow's own Wave 3 expansion battery costs $699 for 1,024Wh, which works out to roughly $0.68/Wh.

The WattCycle 48V 50Ah bundle, WattLINK cable included, runs $499.99 for 2,560Wh, or about $0.20/Wh. That's a lower upfront price and well over double the capacity in the same purchase.

The WattCycle 48V 100Ah server rack bundle costs at $869.99, but at 5,120Wh, it works out to $0.17/Wh only, the strongest value per dollar of the three options, even though it isn't the cheapest option in absolute terms. Which one makes sense depends on how much runtime you actually need: the 50Ah battery pack undercuts EcoFlow's own accessory on both price and capacity, while the 100Ah 5120Wh option is the better long-term buy for anyone planning to run the Wave 3 heavily rather than occasionally.

More Information about WattLINK

The application of WattLINK goes far beyond connecting EcoFlow Wave 3 portable air conditioners. The same connection method extends across most of EcoFlow's Delta 2 and Delta 3 series, which means the pricing advantage covered above applies just as directly if you're looking to expand Delta series portable power station capacity.

That said, compatibility isn't universal across every EcoFlow model, so it's worth being precise about where this does and doesn't apply before assuming your specific unit qualifies.

If your unit falls outside the compatible list, pairing it with a WattCycle battery through WattLINK isn't a safe or workable option, regardless of how similar the model name sounds to one that is supported.

Safety and Usage Notes

Before connecting any external battery to a compatible power station and portable air conditioner via WattLINK, a few precautions matter more than they might seem to at first glance:

• Always verify polarity with a multimeter before connecting. Reversed polarity is the leading cause of equipment damage in high-current setups like this one.
• Confirm voltage and chemistry match first. Use only LiFePO4 batteries rated at 48V (51.2V nominal). Never mix different chemistries or voltage systems, even if the physical connector happens to fit.
• Match SOC (state of charge) before connecting. Ideally, both units should sit at 100% before you link them. Never connect a fully charged battery directly to a near-empty station.
• If the link pauses, don't force it. Let both devices equalize charge naturally, then reconnect rather than repeatedly forcing the connection.
• Use only WattCycle 48V LiFePO4 batteries with confirmed compatible power stations. Substituting an unverified battery or model removes the safety margin this guide is built around.
• Do not modify either connector cable. Altering a WattLINK cable or the power station's own port voids the safety assumptions both were engineered around.

If you also want to expand the capacity of the Delta series power station, WattCycle guide on how to expand your EcoFlow Delta 2 power station capacity with cheaper LiFePO4 battery. Walks through the connection process in more depth, along with runtime comparisons built specifically around the Delta 2.
