WattCycle V2 48V 12kW All-in-one Split Phase Hybrid Inverter - 120/240V, 24kW Dual MPPT, 250A Charger, Wi-Fi connection

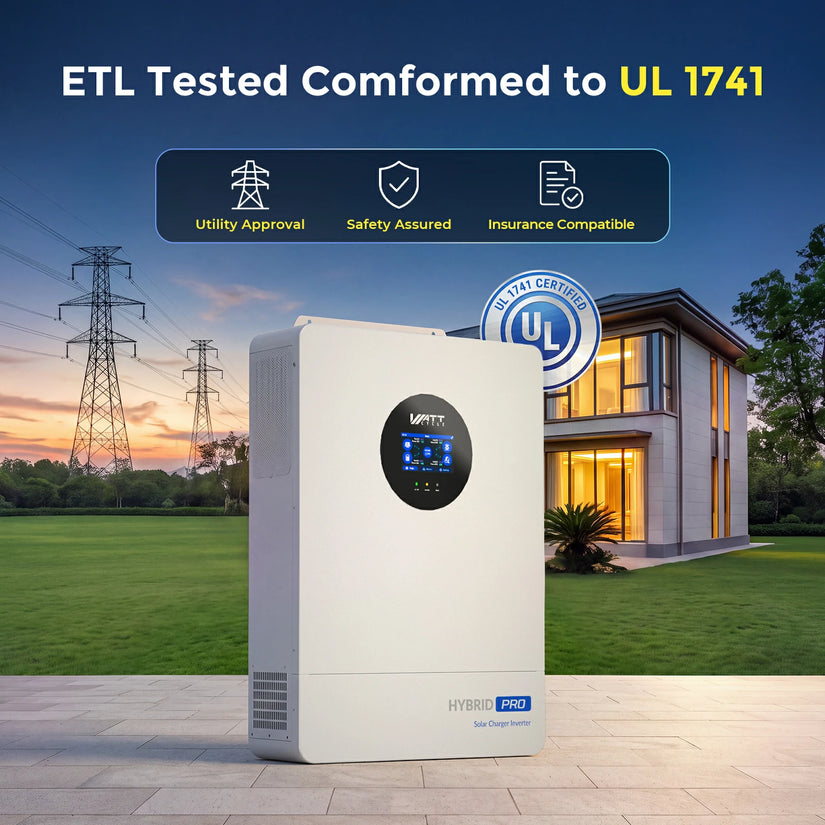

• ✅🎖️ Tested and Certified to UL 1741 by Intertek (ETL)
• The user introduces the WattCycle 48V all-in-one inverter as the core of his future off-grid system.

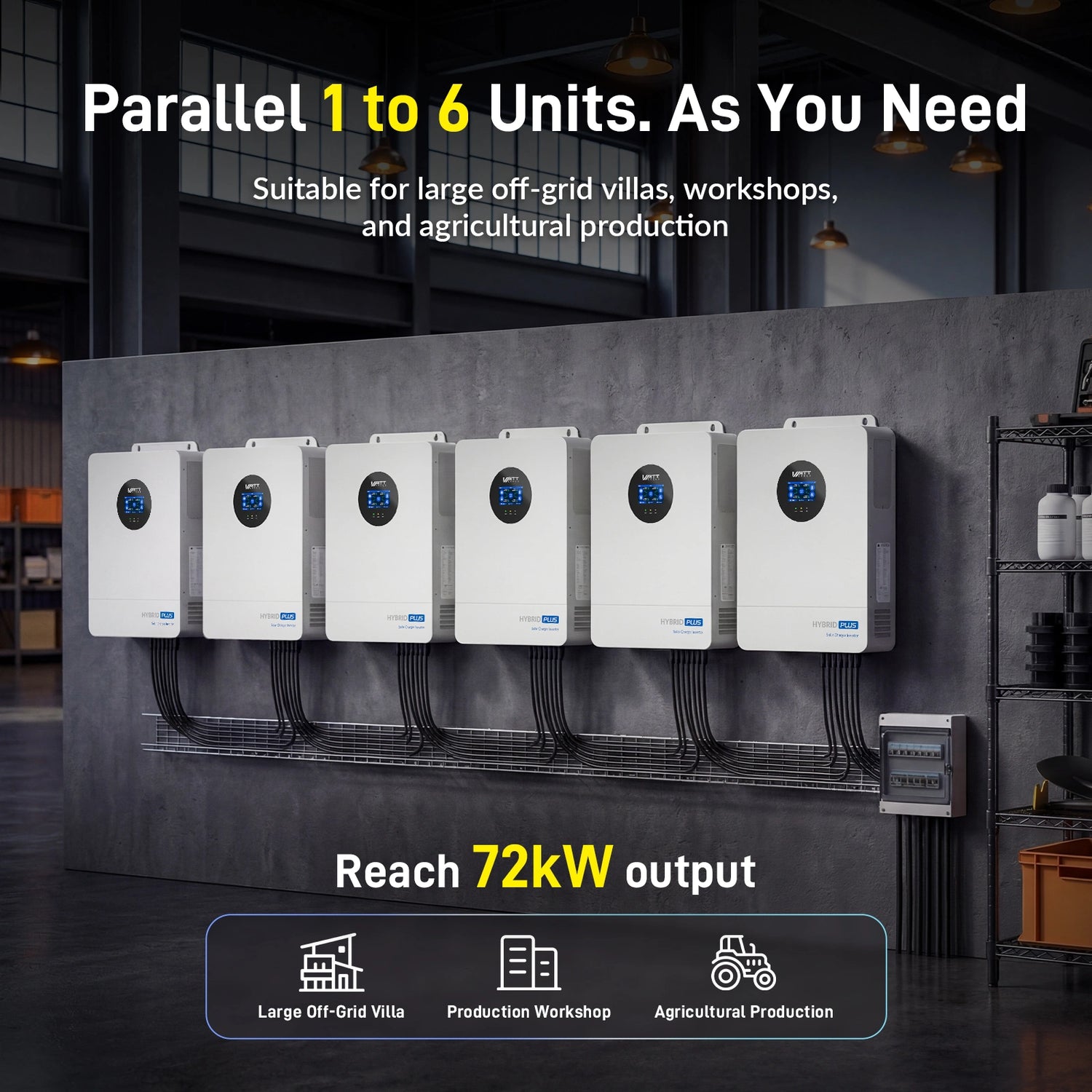

• It delivers strong performance: 12kW output, 24kW solar input (dual MPPT), 120/240V split-phase, 250A AC Battery Charger, UPS function, and scalability up to 72kW.
• Supports multiple modes (solar, grid, hybrid) and broad battery compatibility.
• Instead of going fully off-grid immediately, he uses it as a flexible starting point, integrating with existing batteries, solar panels, and power stations.
• Built for Advanced Home Energy Systems: Combines solar conversion, battery charging, and flexible power output in one integrated inverter solution for residential and off-grid applications

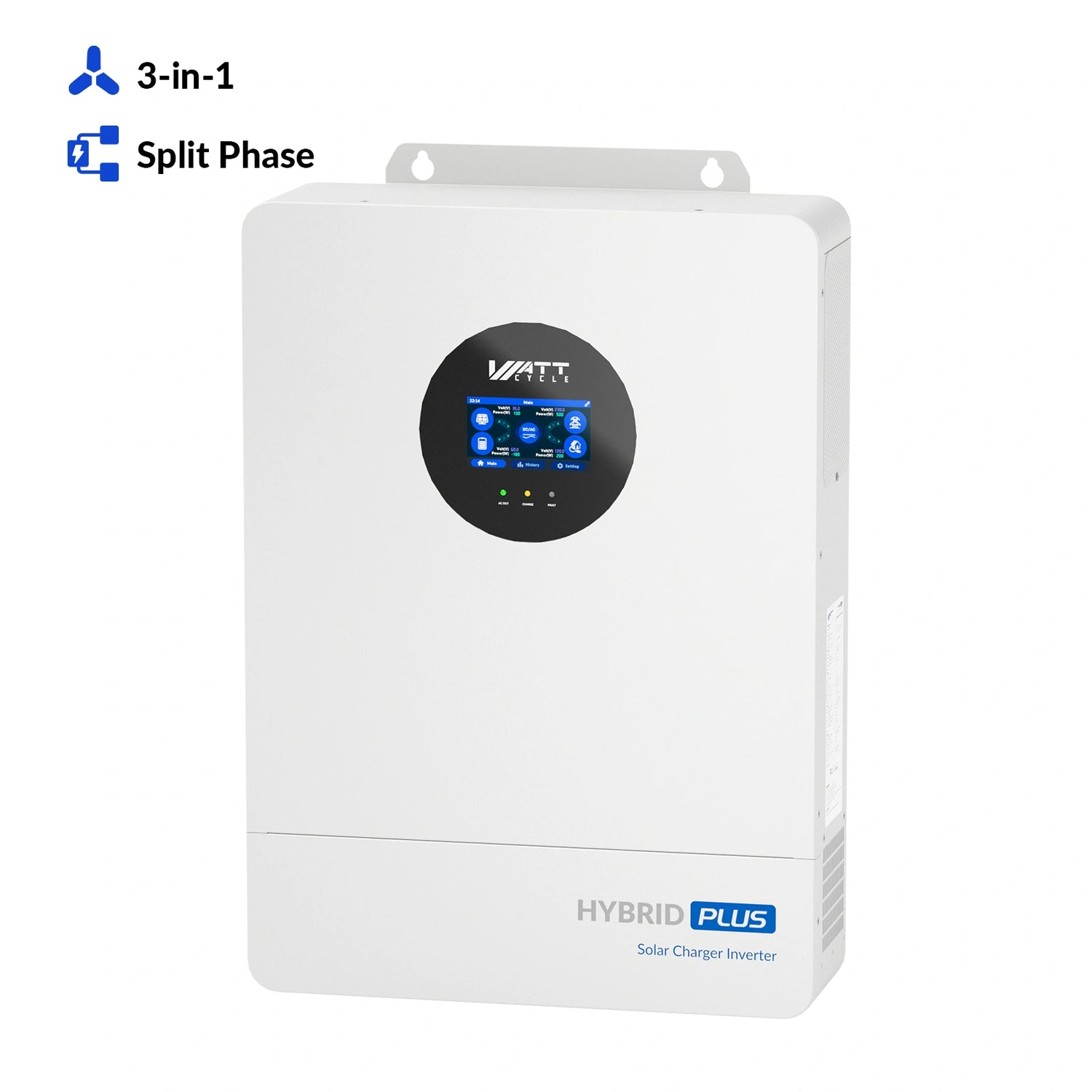

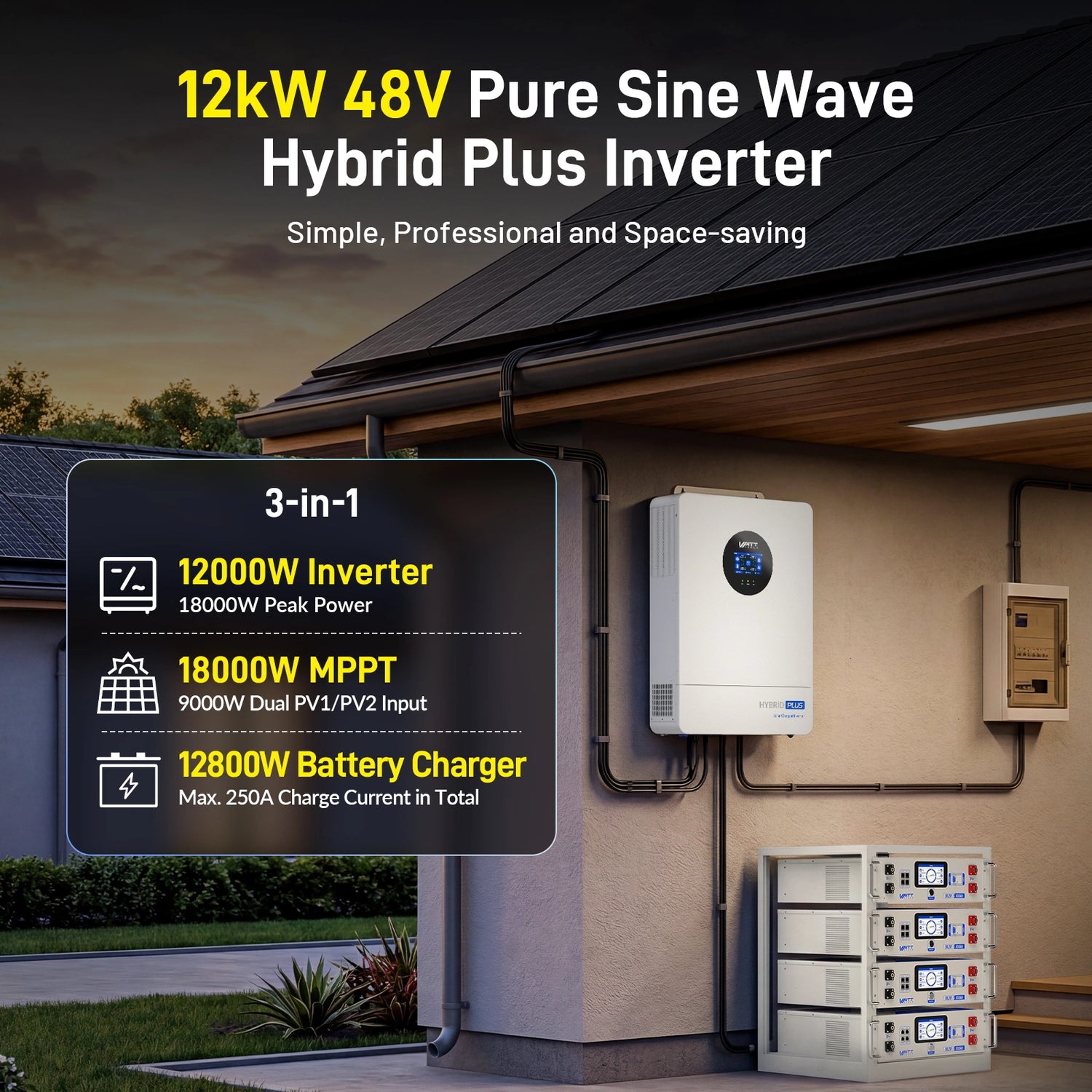

The WattCycle 12kW hybrid inverter integrates a 120V/240V pure sine wave inverter, an 24,000W MPPT solar charge controller, and a 250A AC charger into a single wall-mount unit. Combining three components into one reduces installation complexity, minimizes wiring, and frees up wall space, while ensuring every part of your solar power system works in coordination from a single interface.

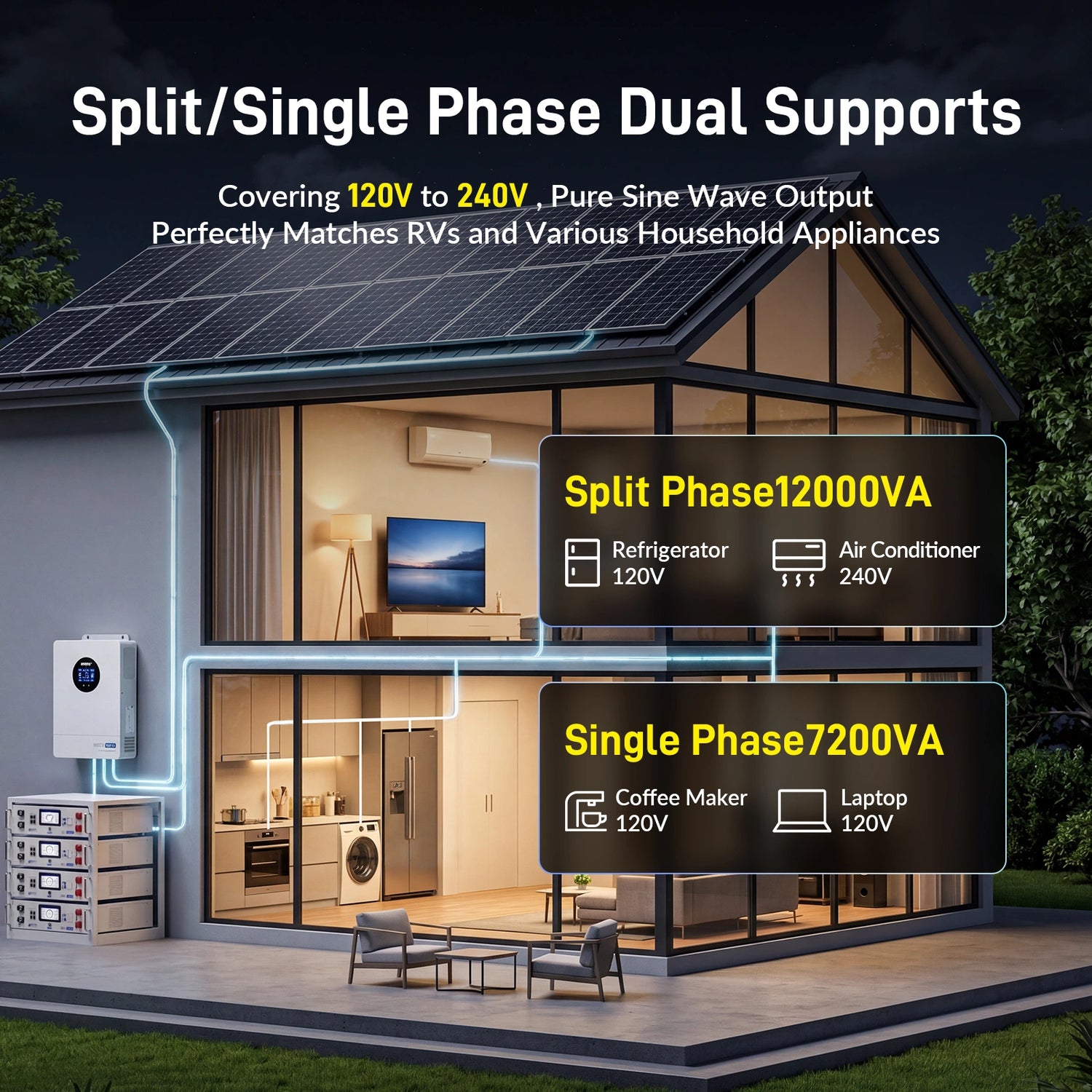

This split phase inverter delivers true 120V/240V output at the same time, so every appliance draws power without restrictions or manual load management. Refrigerators, microwave ovens, televisions, clothes dryers, washing machines, water heaters, ovens, air conditioners, electric stoves, and EV chargers all operate at full capacity concurrently. The same voltage compatibility extends to RV installations, making this solar power inverter a single solution for both residential and mobile power needs.

With 12kW of continuous rated output and an 18kW peak, this home solar inverter is sized for real household demand. The 250A battery charge current and 270A maximum discharge current give this solar inverter system the throughput to sustain heavy loads consistently, not just in brief bursts under ideal conditions.

Two independent 12000W MPPT channels accept up to 24,000W of combined PV input, allowing panels installed on different roof sections, angles, or orientations to be managed separately. Each channel tracks its own maximum power point independently. At 98% conversion efficiency, WattCycle hybrid solar inverter captures and converts more of what your panels generate, supporting faster battery charging and longer daily operating hours on solar before drawing from grid or battery reserves.

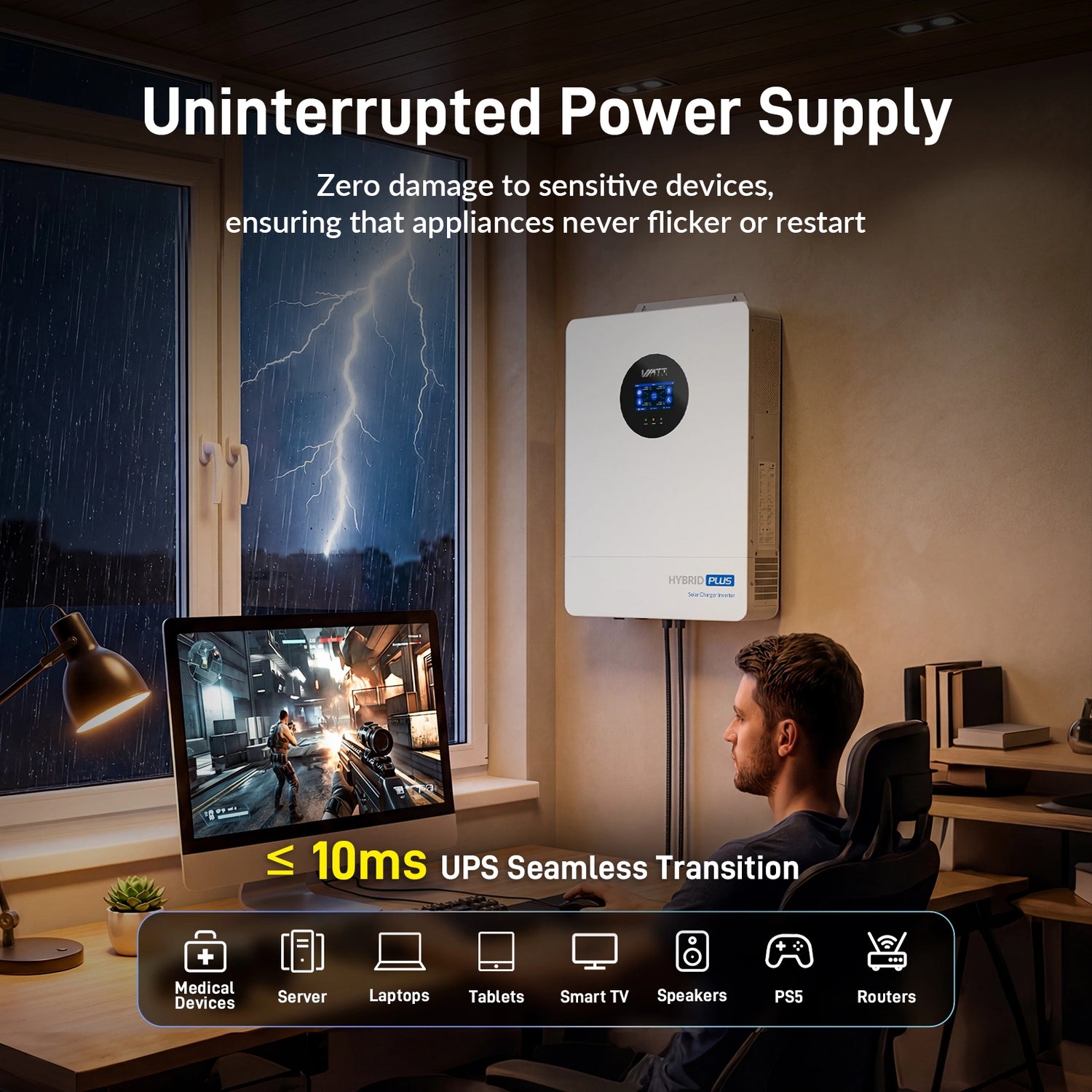

Reliable solar power starts with protection that operates automatically. This 48V hybrid inverter includes 21 built-in protection functions covering CT anti-reverse current, overload, undervoltage, short-circuit, overcurrent, overvoltage, and overtemperature, with an automatic AC circuit breaker providing additional hardware-level safeguarding. The ≤10ms UPS transfer time switches the system to battery power faster than most sensitive electronics can register a disruption, keeping computers, medical devices, and smart home systems operating without interruption during grid failures or voltage fluctuations.

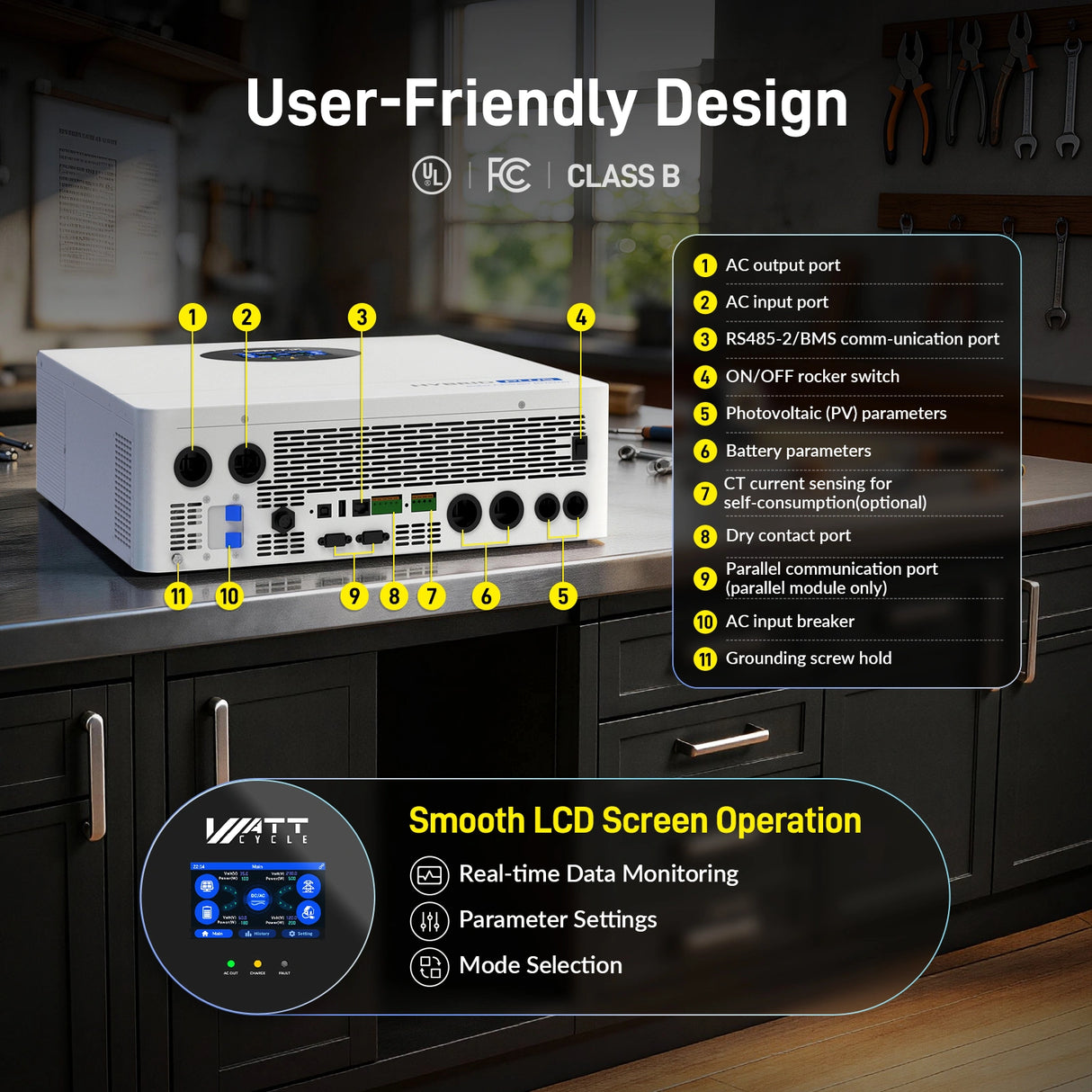

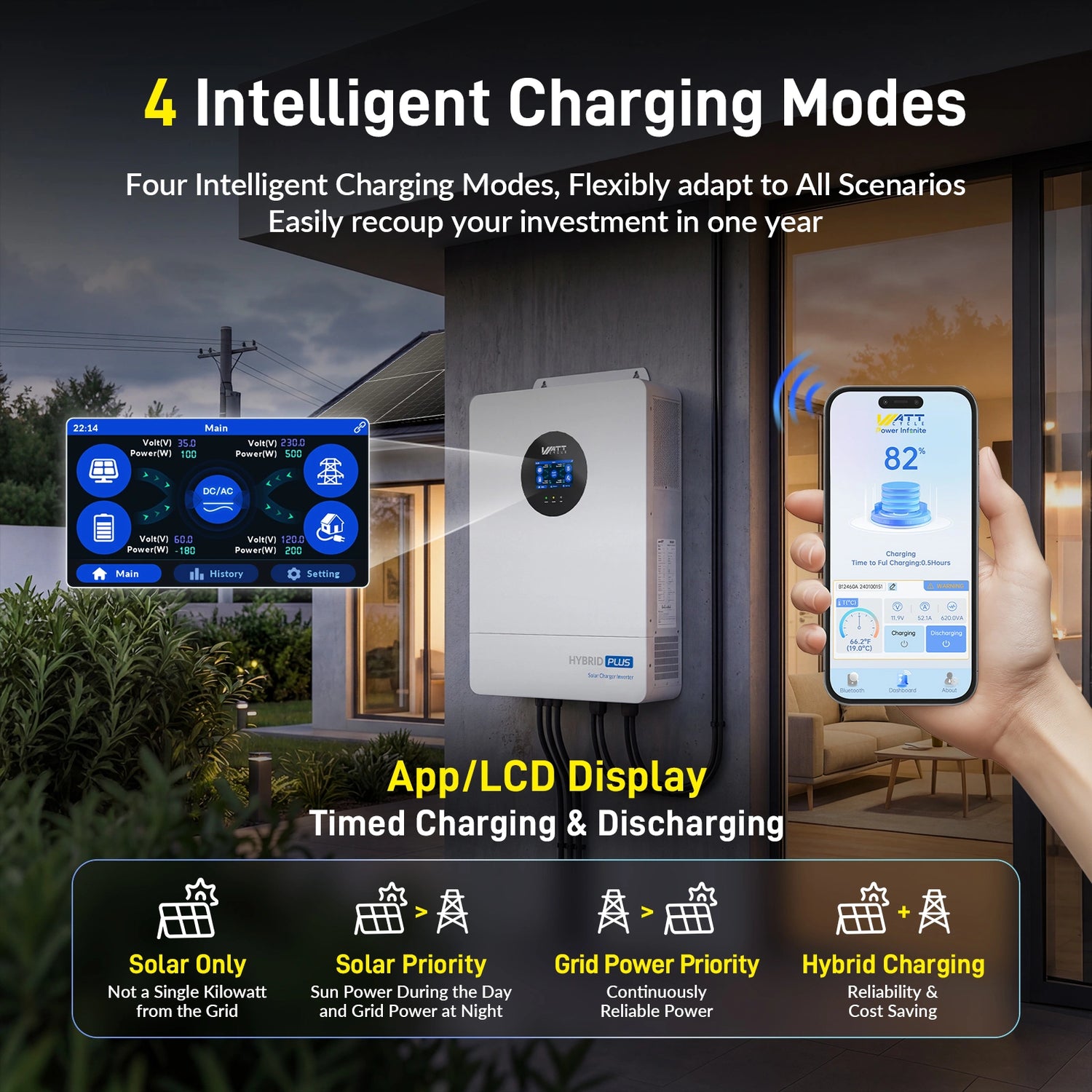

With 4 intelligent charging modes, you can easily adapt your energy strategy to changing conditions. Use solar power when available, rely on the grid when needed, or combine both sources for maximum efficiency. All settings and operation adjustments can be easily managed through the built-in LCD screen, giving you a simple and intuitive way to monitor and control your energy system. This 12kW hybrid inverter puts you in complete control of your power usage while reducing electricity costs and keeping your home powered when you need it most.

Take control of your electricity costs by charging your battery when energy prices are lower and using stored power during peak-rate hours. Combined with solar generation and intelligent charging and discharging strategies, this WattCycle inverter helps optimize energy usage, improve efficiency, and create a smarter, more cost-effective home power solution.

The WattCycle 12kW Hybrid Solar Inverter intelligently adjusts fan speed according to internal temperature and load conditions. Under lighter loads, it operates at near-silent levels, while the maximum noise level stays ≤60dB even during higher power demands. This quiet performance makes it suitable for installation in utility rooms, hallways, or locations near bedrooms, providing reliable energy management without adding noticeable noise to your home.

The WattCycle 12000W split phase inverter supports SLD, FLD, GEL, and LFP (LiFePO4) battery chemistries and communicates over both CAN and RS485 protocols. Pre-configured compatibility covers leading battery brands including Pylon, Growatt, Dyness, Fox-ess, Gotion, and Pace, so integration with your existing or planned battery system requires no custom configuration. Designed for off-grid villas, commercial workshops, agricultural production facilities, and urban residences, this solar inverter system adapts to the demands of each environment without hardware modification.
