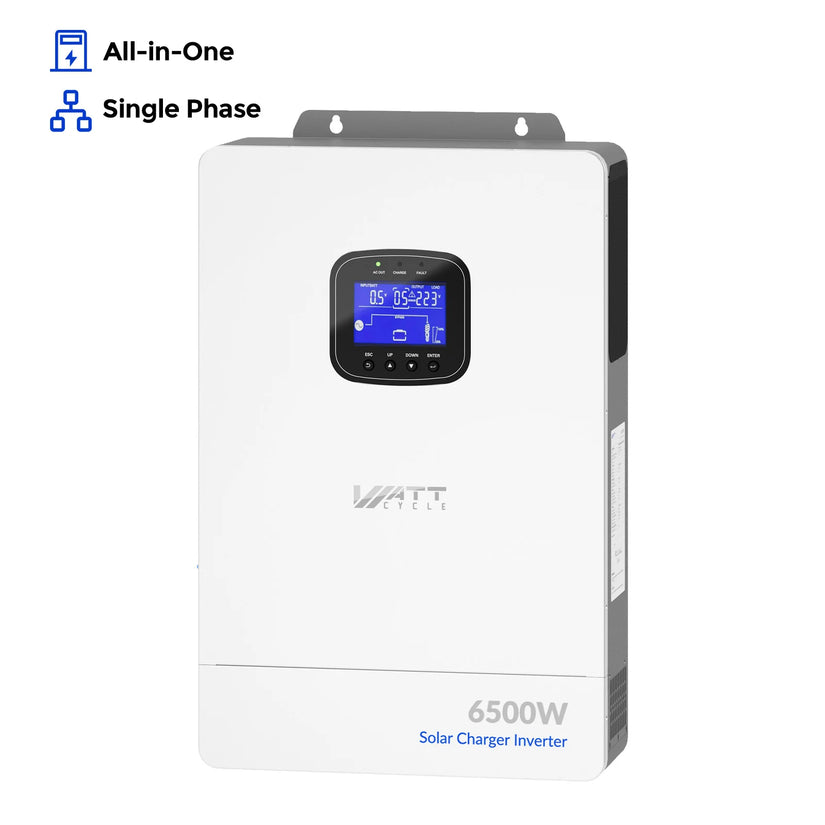

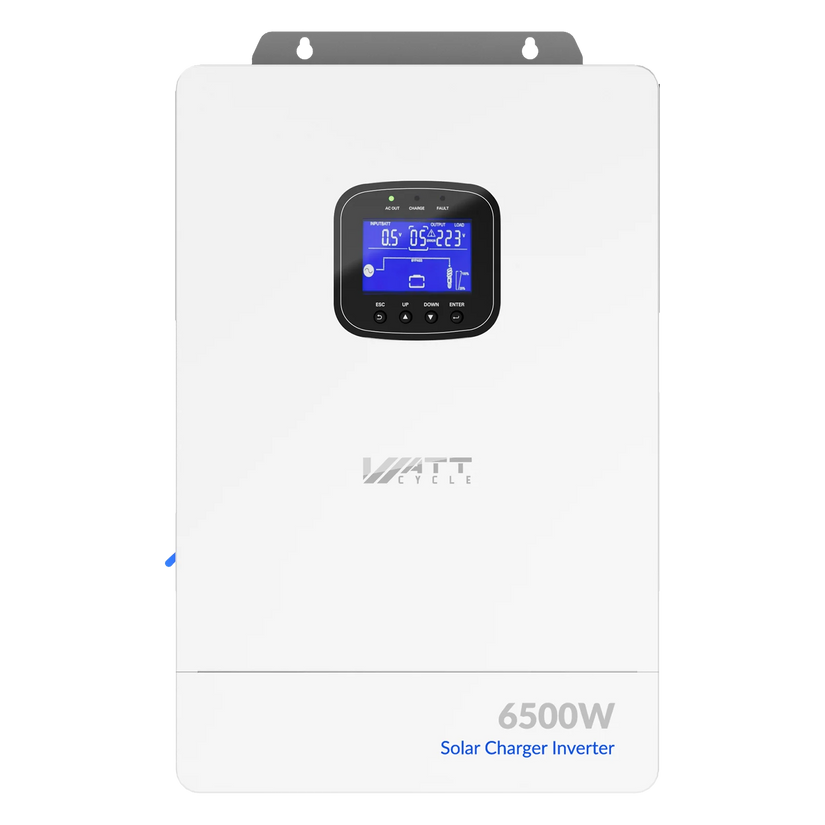

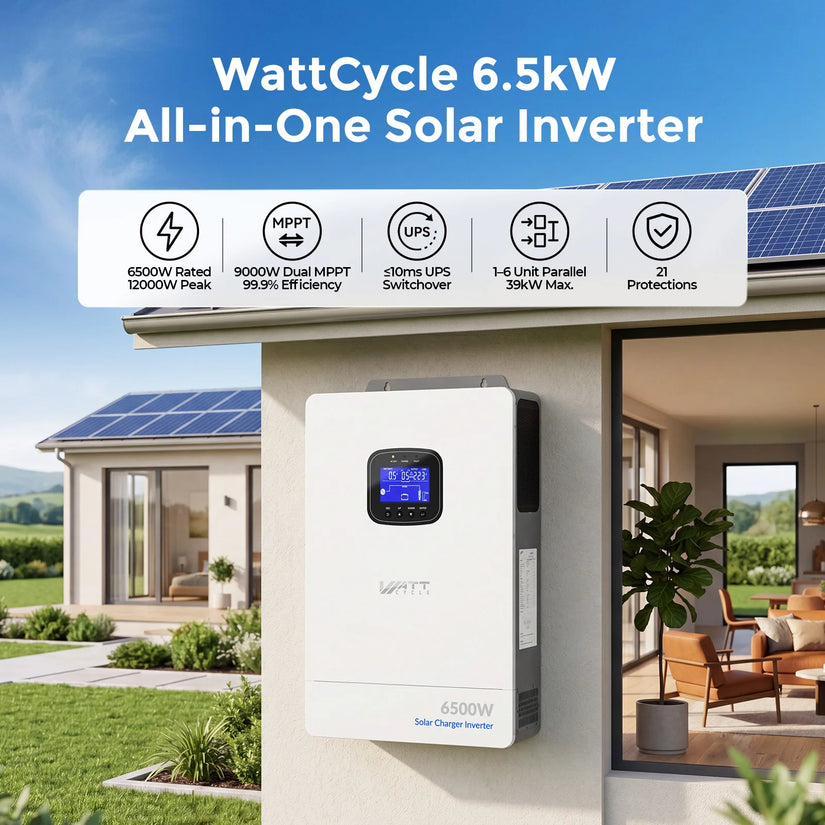

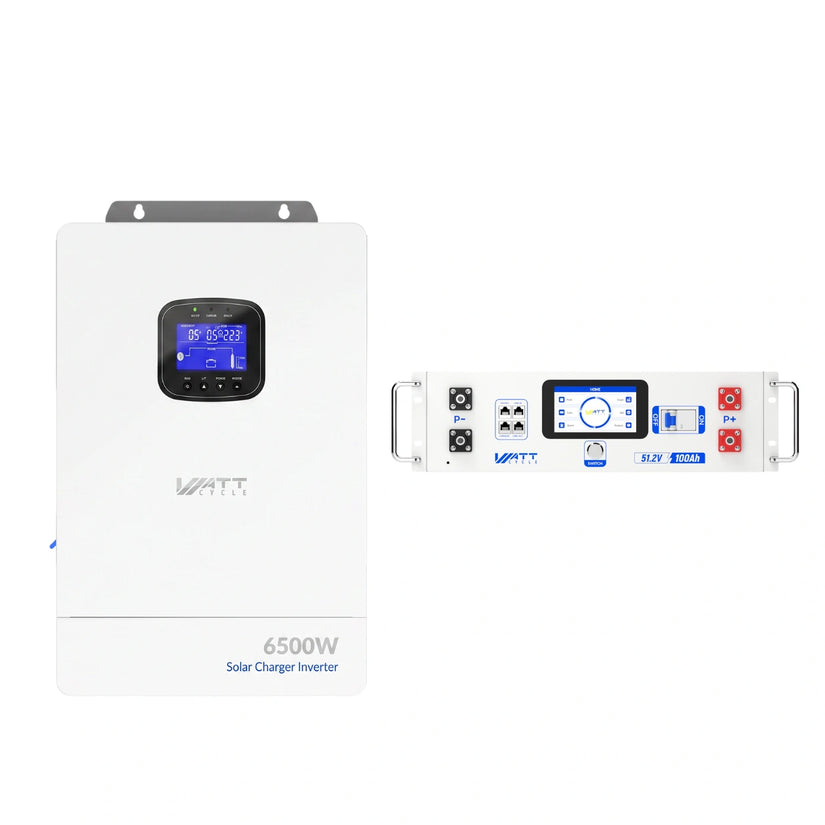

WattCycle 6500W 48V All-in-One Solar Inverter Charger | 9000W Dual MPPT

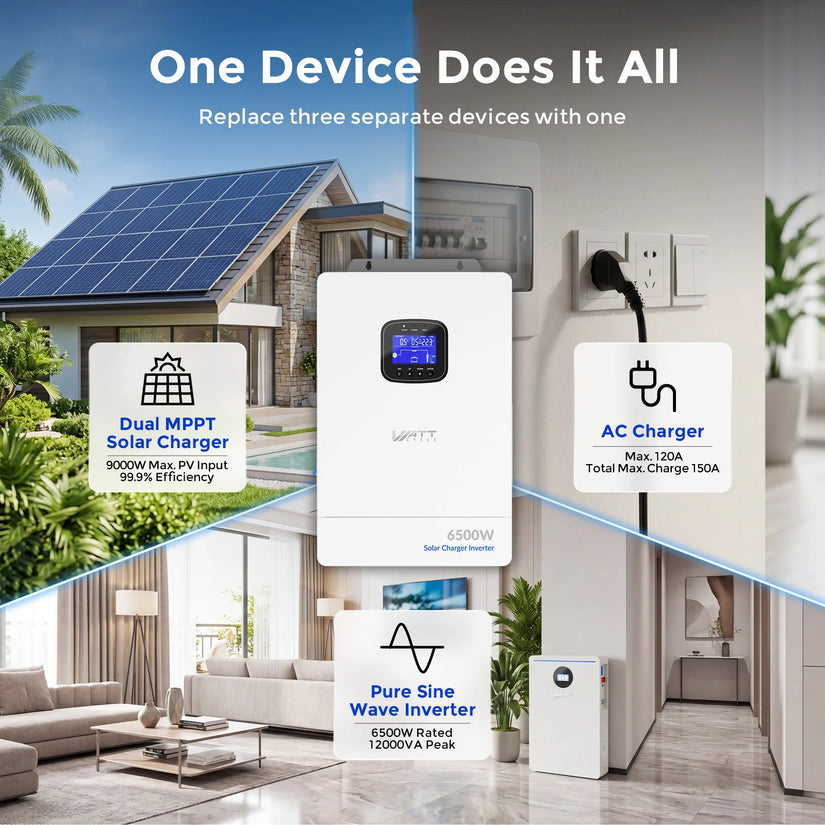

- 3-in-1 Space Saver: Combines a 6500W pure sine wave inverter, 9000W dual MPPT solar charger, and AC grid charger into one compact wall-mount unit (only 15kg).

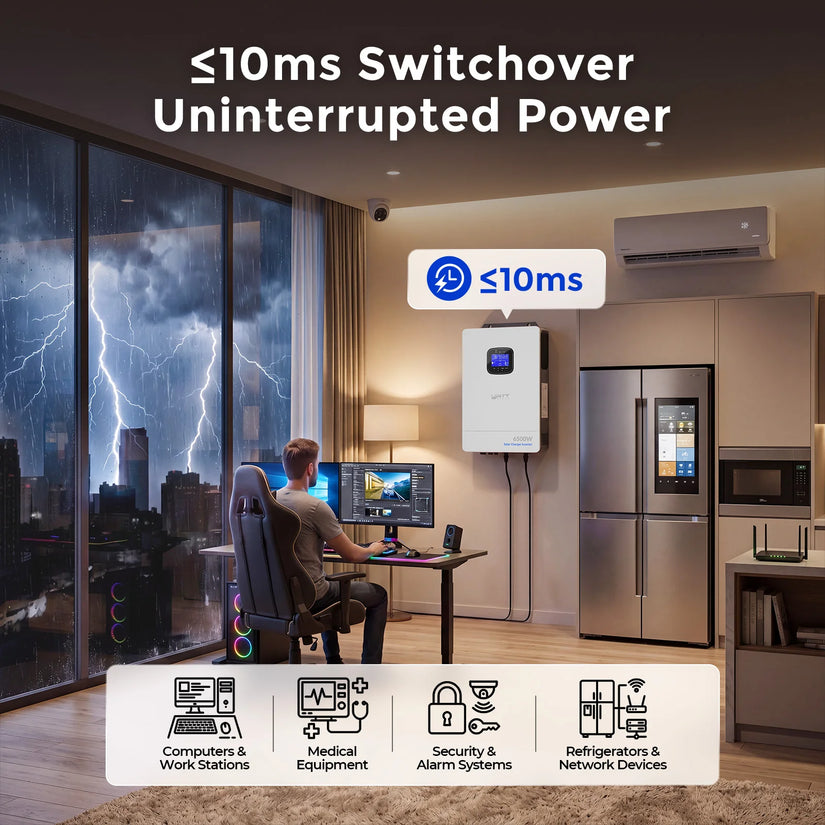

- Seamless <10ms Backup: Automatically switches from grid to battery power in under 10 milliseconds. Keeps sensitive electronics and medical equipment running without a flicker.

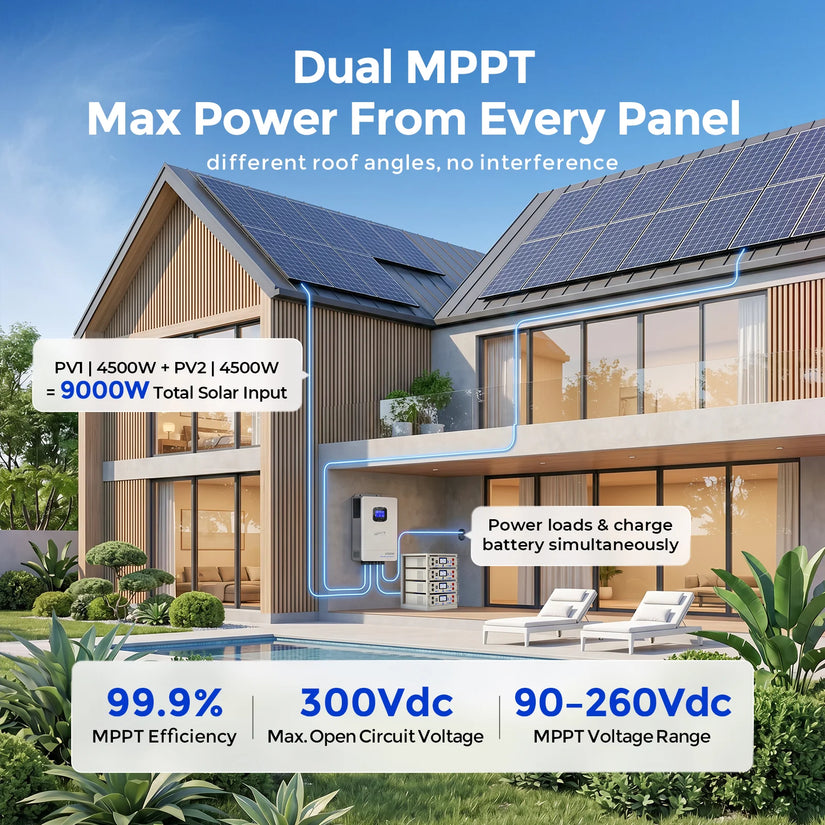

- Dual MPPT Independence: Features two completely separate MPPT channels (4500W each) with 99.9% efficiency. Maximum output even if one solar string is partially shaded.

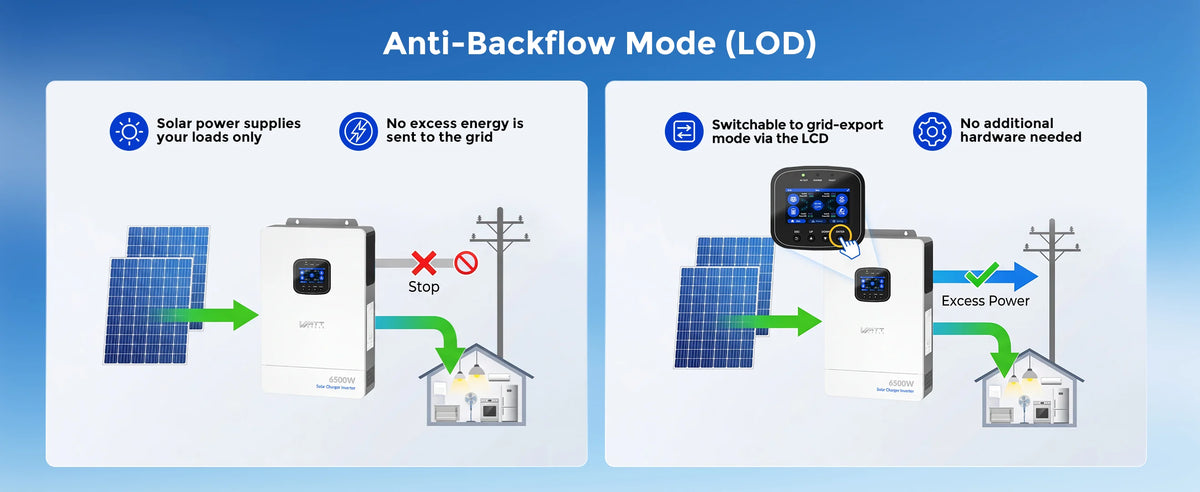

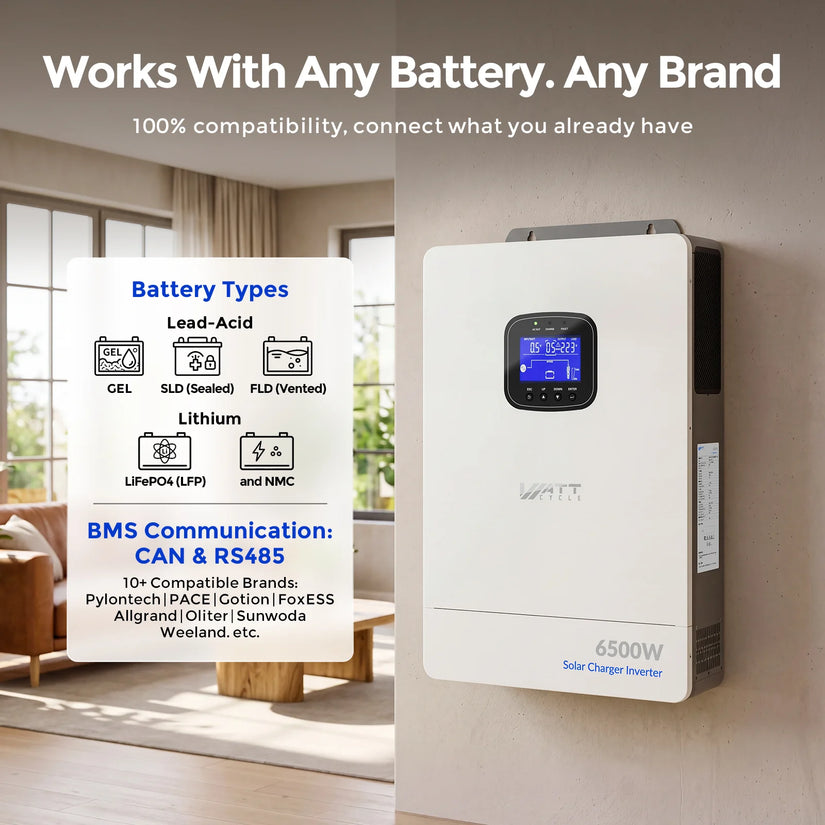

- Battery-Free Startup: Save upfront costs by running your solar panels directly through the inverter to offset grid power—add a 48V LiFePO4 battery whenever you're ready.

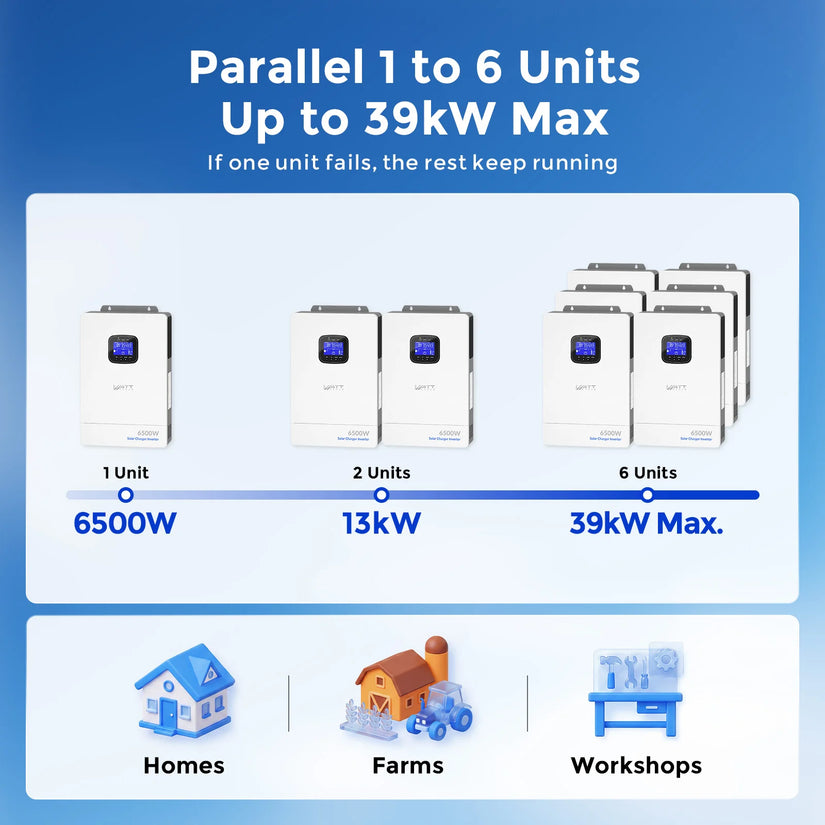

- Massive 39kW Scalability: Connect up to 6 units in parallel to handle expanding home, farm, or commercial power demands. Each unit operates independently.

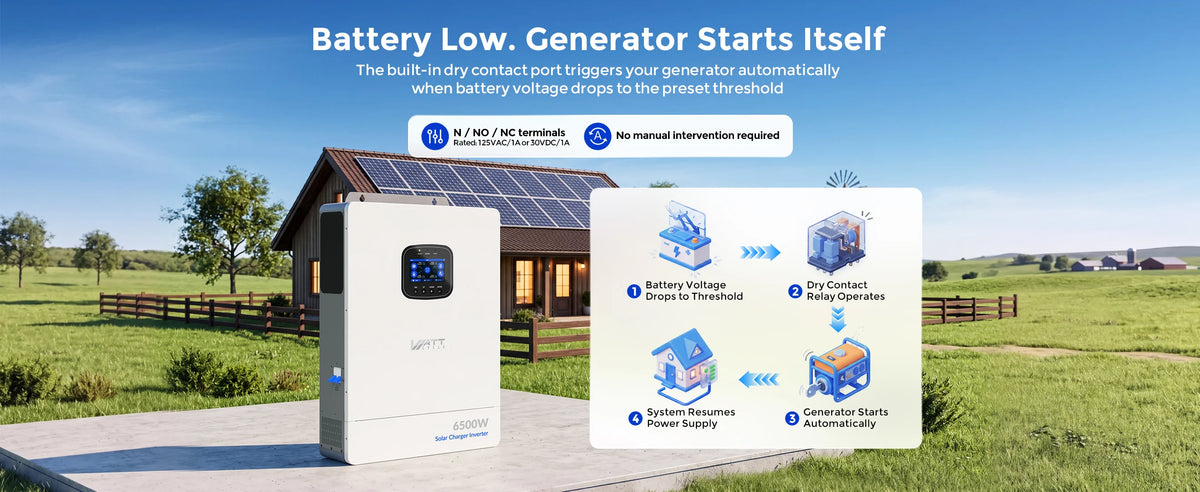

- Smart Auto-Generator Control: Equipped with a dry contact port that automatically triggers a generator when battery voltage drops, perfect for unmanned or off-grid sites.
We offer free shipping within the continental U.S. via UPS Ground or FedEx, with orders typically processed in 1–2 business days and delivered within 2–5 business days. Large products such as 12V 628Ah, 48V 314Ah batteries, or 12kW inverters are shipped by truck (LTL) and require signature upon delivery. After order confirmation, we will contact you by email to confirm shipment, and transportation arrangements typically take about 48 hours. Please note that we do not ship to Alaska, Hawaii, Puerto Rico, or PO Box addresses. Delivery times may vary due to external factors such as carrier delays or weather conditions.
For complete details, please visit:
Shipping Policy.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Run on Solar Immediately: You don't need to drop thousands on a massive battery bank upfront. Just connect your solar panels to the inverter, power your daytime loads directly, and save on your electricity bill from day one. Add your 48V battery whenever your budget allows.
Tech Specs
General

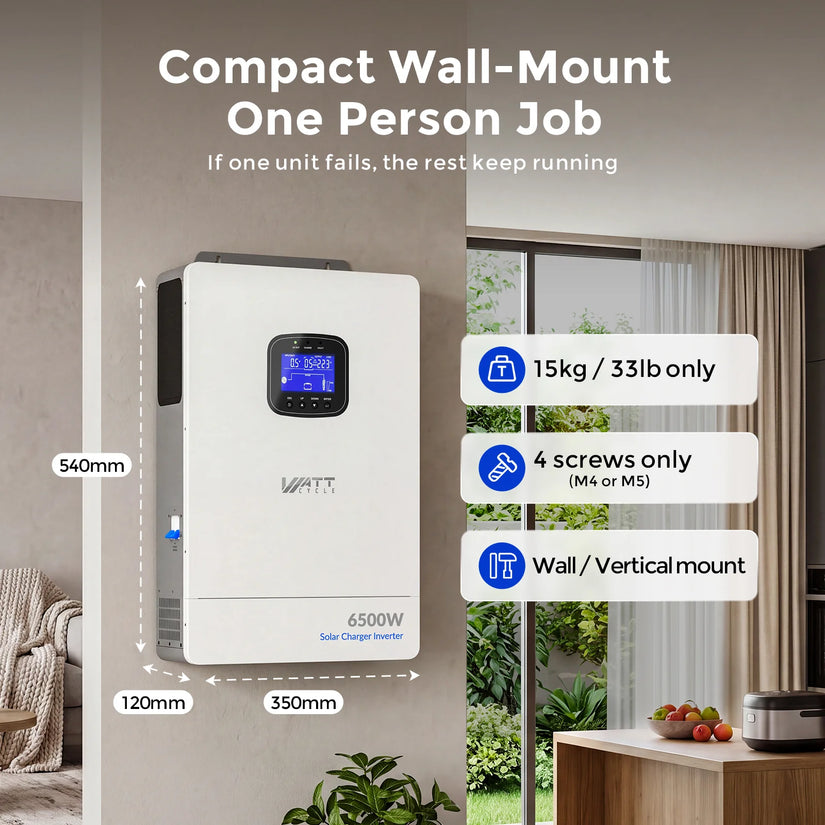

| Dimensions (Inches) | 21.26 (L) x 13.78 (W) x 4.72 (D) |
| Weight | 40.79 lbs / 18.5 kg |
| Operating Temperature | 14°F to 131°F / -10°C to 55°C |

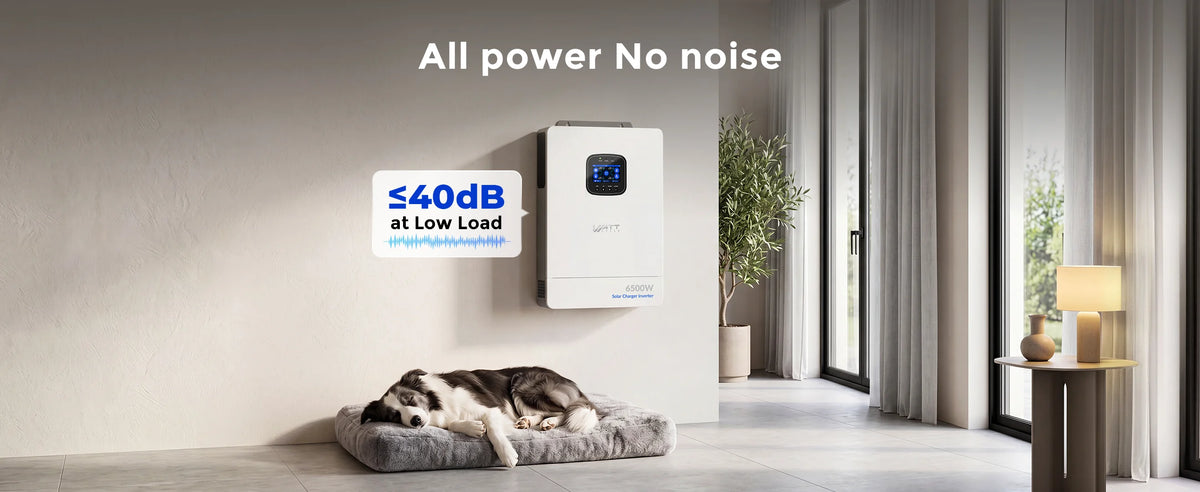

| Cooling Method | Forced air cooling (Variable speed fan) |

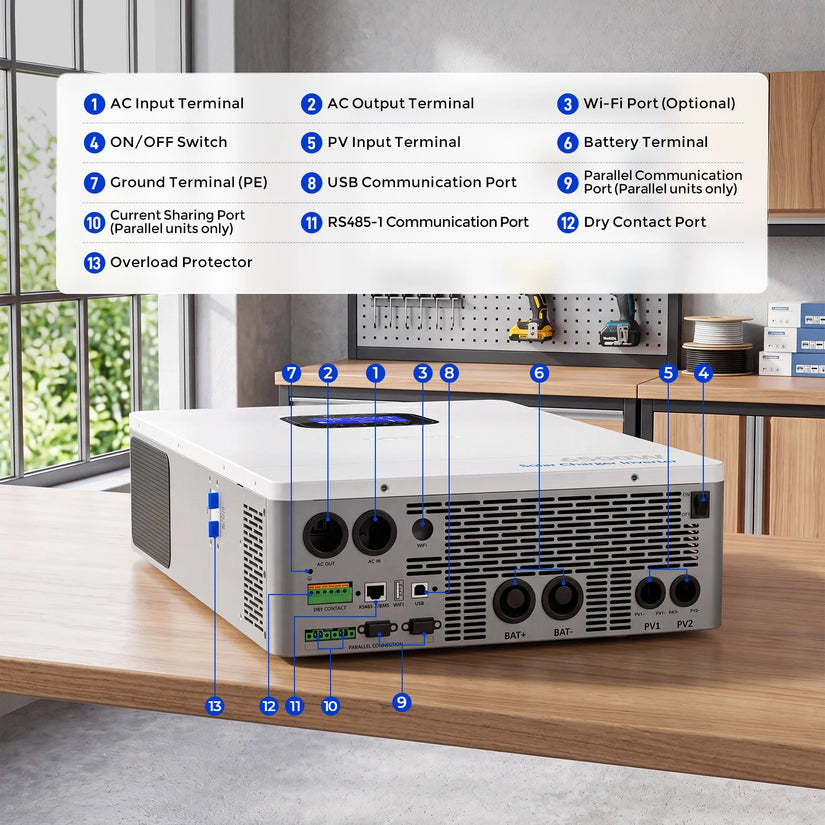

| Communication | USB / RS485 / WiFi / GPRS / Dry Contact |
| Certification | FCC Part 15, Class B |
Inverter & AC Output

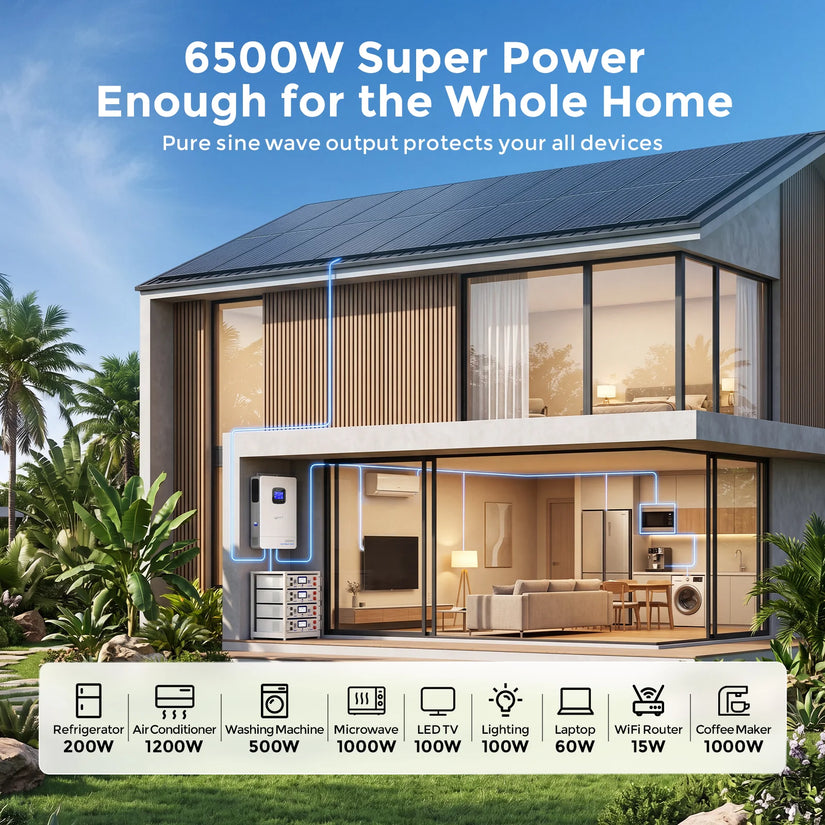

| Rated Output Power | 6,500W / 6,500VA |
| Peak Power | 9,750VA |
| Output Voltage | 120Vac ±5% |
| Waveform | Pure Sine Wave |
| Max. Parallel Units | 1 ~ 6 Units (Up to 39kW) |
| Transfer Time | 10ms (typical) |
Solar & Battery Charging
| Max. PV Input Power | 9,000W (4,500W + 4,500W) |
| Number of MPPTs | 2 Channels (Dual MPPT) |
| MPPT Voltage Range | 90Vdc ~ 260Vdc |
| Max. PV Open Circuit Voltage | 300Vdc |
| Rated Battery Voltage | 48V (Minimum Start: 44V) |
| Max. Hybrid Charging Current | 150A (PV + AC Combined) |
