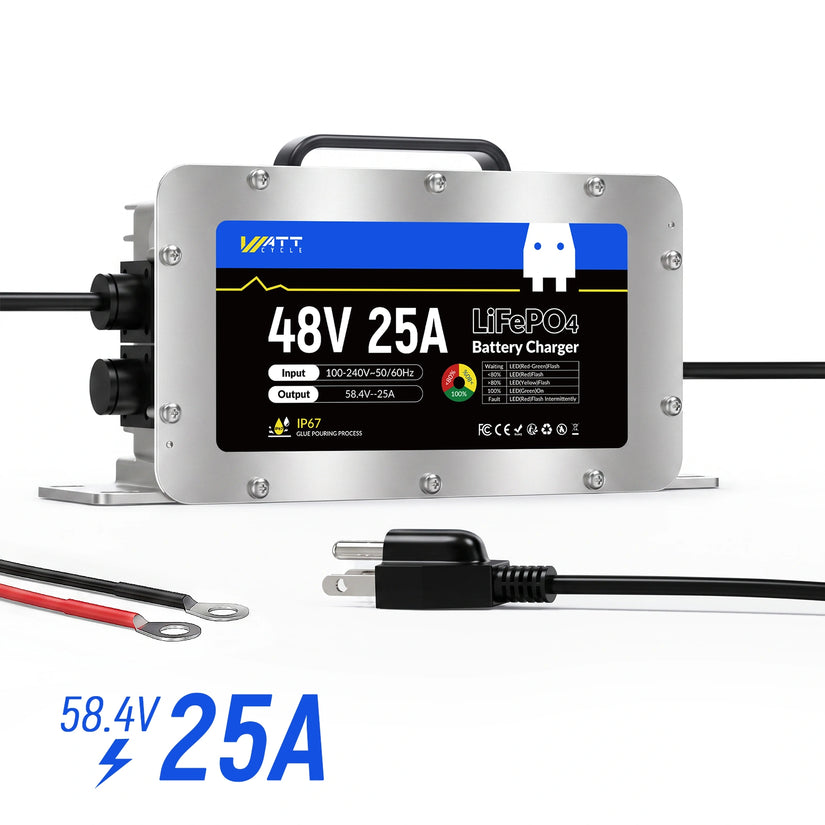

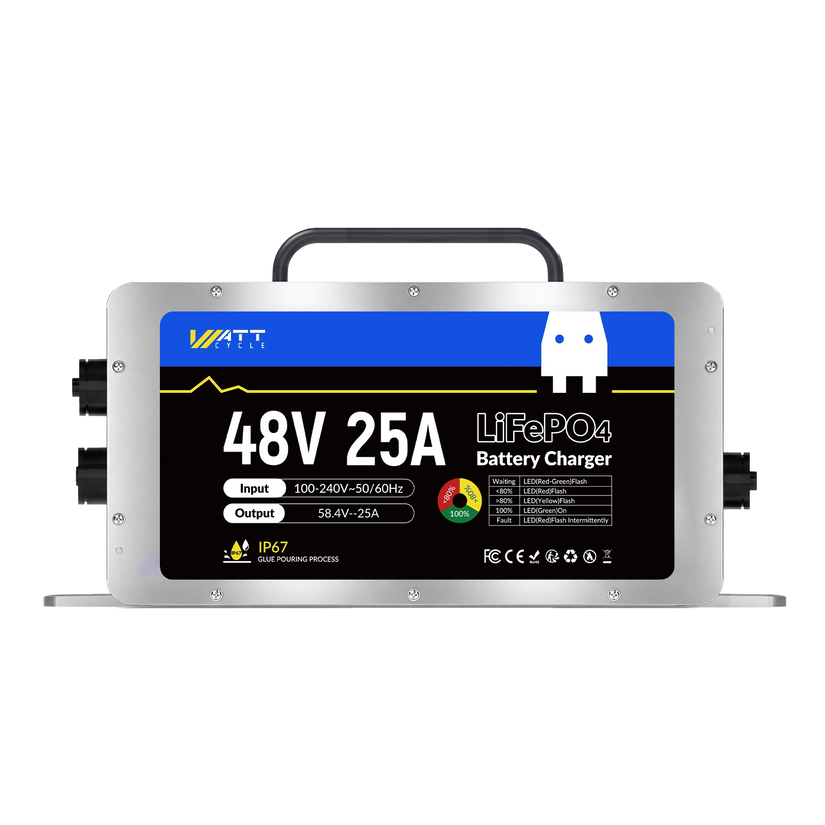

48V(58.4V) 25A Aluminum Shell LiFePO4 Battery Charger

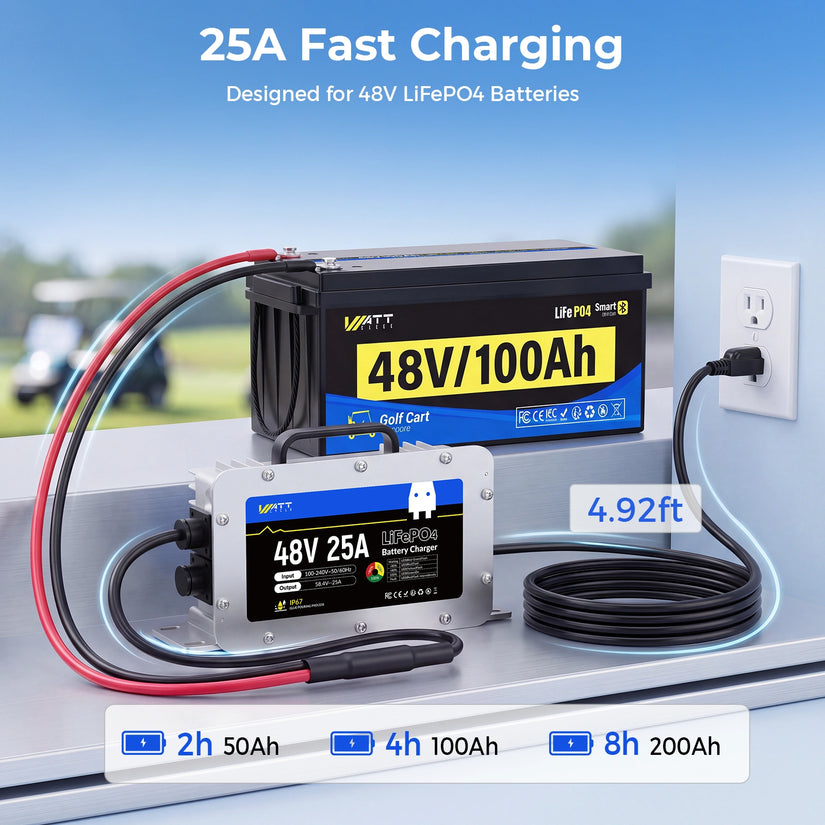

- 25A Fast Charging: Designed for 48V LiFePO4 batteries, delivering a powerful 25A output, especially suitable for 48V golf cart battery packs.

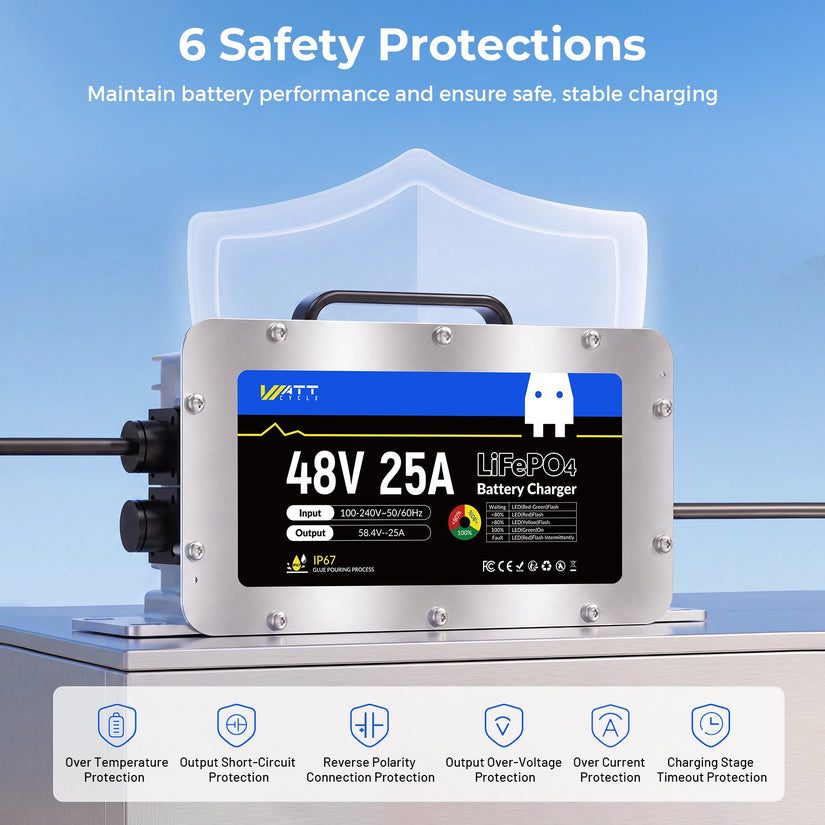

- 6 Safety Protections: Reduce damage to lithium batteries caused by abnormal charging conditions, ensuring safe and stable charging.

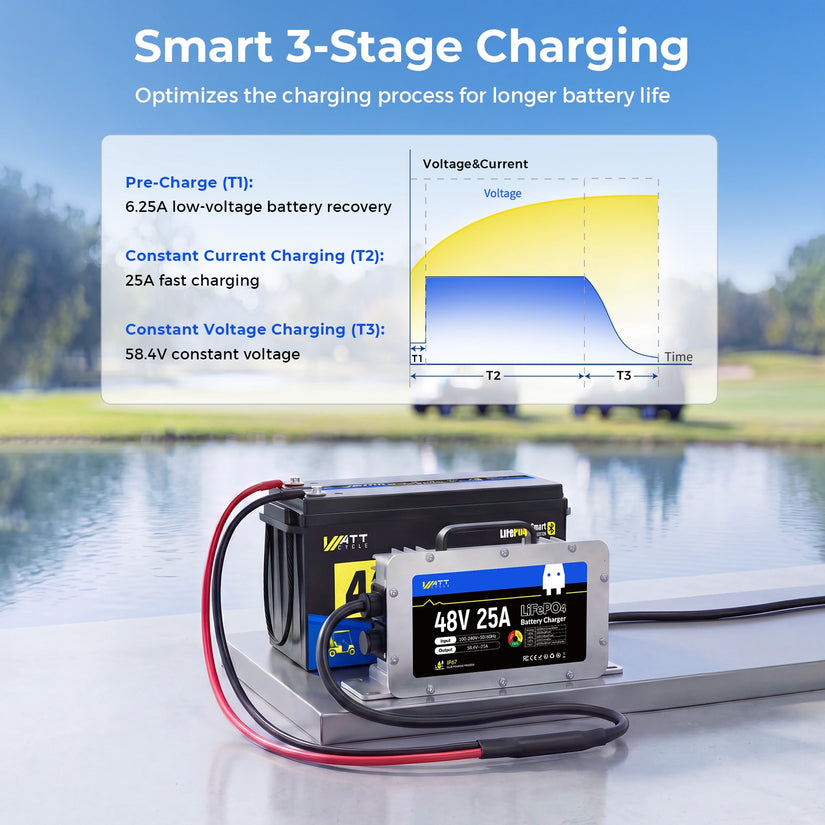

- Smart 3-Stage Charging: Automatically adjusts through Pre-Charge (T1), Constant Current (T2), and Constant Voltage (T3) stages to optimize charging and extend battery life.
- Wide Voltage & Versatile Applications: Supports 100–240V input for worldwide use, compatible with golf carts, RVs, marine applications, off-grid systems, and more.

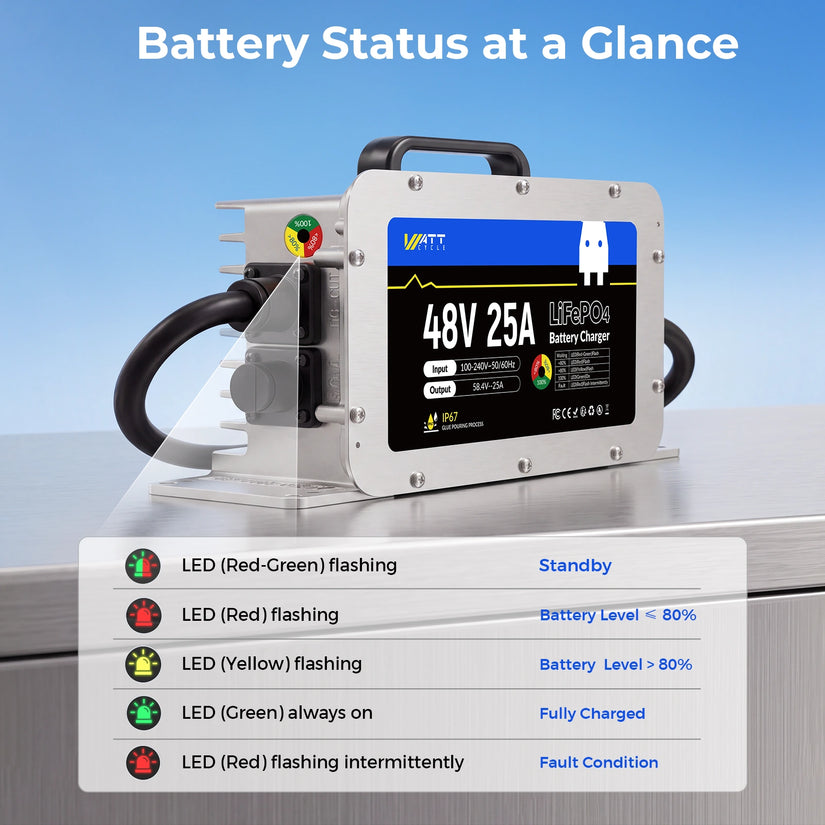

- LED Indicators: Clearly display standby, charging, fully charged, and fault statuses for real-time monitoring of charging progress.
- Excellent Heat Dissipation: Built-in cooling fan delivers efficient heat dissipation while maintaining low-noise operation.
- Aluminum Alloy Housing: Features a durable aluminum alloy enclosure that is impact-resistant and built to last.

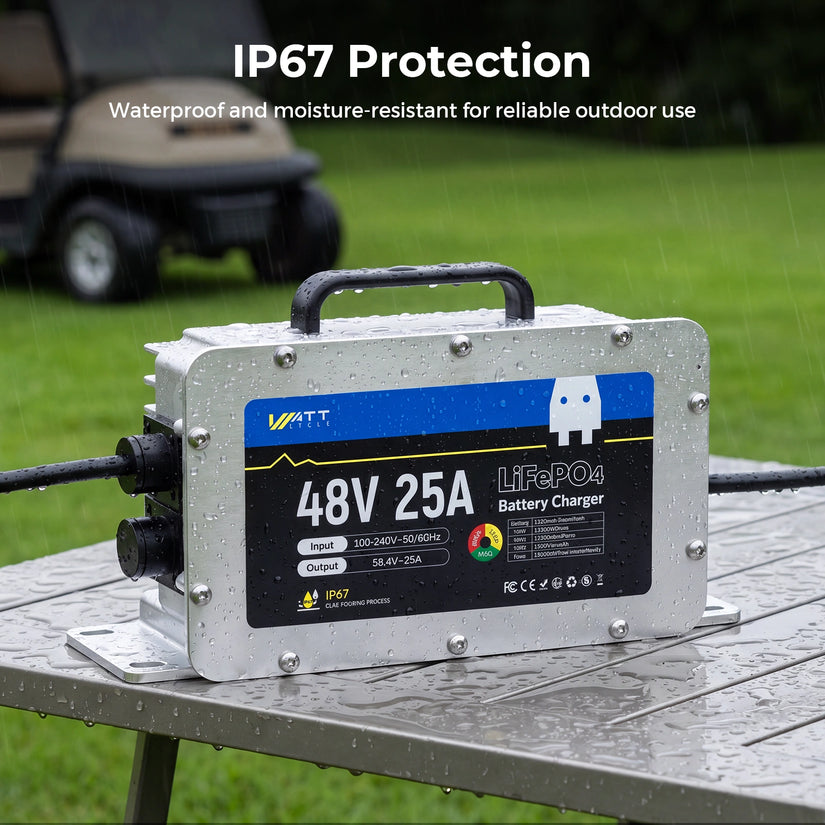

- Reliable in All Weather Conditions: IP67-rated for dustproof and waterproof protection; operates normally from 14°F to 113°F, performing reliably in harsh environments.
- Compact & Portable: Measures 11.06×5.67×3.35inch and weighs 7.05lbs; equipped with a carry handle for easy transport and use.
We offer free shipping within the continental U.S. via UPS Ground or FedEx, with orders typically processed in 1–2 business days and delivered within 2–5 business days. Large products such as 12V 628Ah, 48V 314Ah batteries, or 12kW inverters are shipped by truck (LTL) and require signature upon delivery. After order confirmation, we will contact you by email to confirm shipment, and transportation arrangements typically take about 48 hours. Please note that we do not ship to Alaska, Hawaii, Puerto Rico, or PO Box addresses. Delivery times may vary due to external factors such as carrier delays or weather conditions.
For complete details, please visit:
Shipping Policy.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:
-
Fast, Free Shipping
-
30-Day Money-Back Guarantee
-
Hassle-Free Warranty
-
Lifetime Customer Support
Tech Specs
SPECIFICATION
| Brand | WattCycle |
| Model | 24V 40A |
| Input Voltage | 100-240Vac 50/60Hz |
| Output Voltage | 29.2V |
| Output Current | 40A |
| Product Size (Inches) | 11.06 × 5.66 × 3.19 inch |
| Net Weight | 7.94 lbs ±3% / 3.6kg ±3% |
| Relative Humidity | 5%~95% |
| Ingress Protection Rating | IP67 |
| Temperature Range | Operating: -10°C to 45°C / 14°F to 113°F Storage: -40°C to 70°C / -40°F to 158°F |
CHARGING MODE
| Waiting | 🔴🟢 (Flashing Alternately) |
| Charging (<80%) | 🔴 (Flashing) |
| Charging (≥80% <100%) | 🟡 (Flashing) |
| Charging Completed (100%) | 🟢 (Always On) |
| Fault | 🔴 (Flashing Intermittently) |
PROTECTION FUNCTIONS
| 1. Over Temperature Protection | Automatically stops charging when internal temperature reaches 105°C / 221°F; LED flashes red alarm. |
| 2. Output Short-Circuit Protection | Cuts off output current upon short-circuit; LED flashes red alarm. |
| 3. Reverse Polarity Connection Protection | Disconnects charger when connected in reverse polarity; LED flashes red alarm. |
| 4. Output Over-Voltage Protection | Cuts off output current when output exceeds 35V. |
| 5. Output Current Limiting Protection | Triggers automatically when output current exceeds 48A. |
| 6. Cell Short Circuit Timer | Automatically enters next charging stage when safe time value is exceeded. |
CHARGING STAGES
| Stage | Condition | Description |
| T1 Pre-charge |
Voltage < 20.8V | Charges at 10A to activate and repair deeply discharged batteries; switches to T2 when voltage reaches normal value or timeout (10 min). |
| T2 Constant Current |
Voltage ≥ 20.8V Current ≥ 30A |
Charges at rated 40A current; switches to T3 when voltage rises above rated voltage or timeout (10 hours). |
| T3 Constant Voltage |
Current < 30A | Charging current gradually decreases; completes when voltage reaches highest value or timeout (5 hours). |
