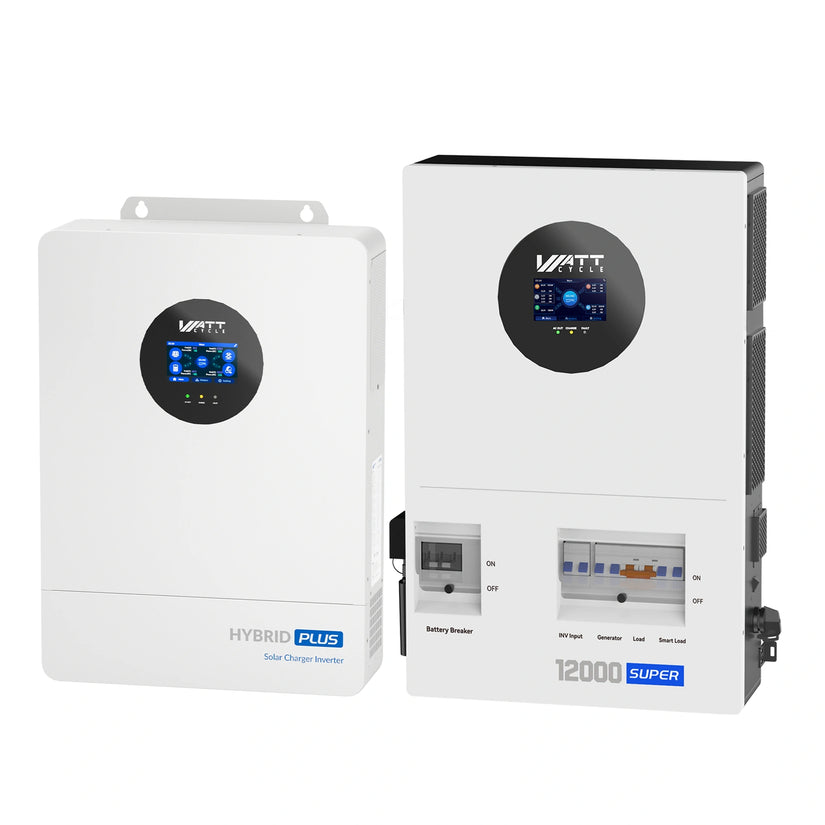

WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging

$1,999.99
High-Capacity Backup Power Without a Low-Current Bypass Bottleneck
  • Built-In 200A 2-Pole Bypass: Support high-current 120/240V split-phase systems without forcing grid-supplied loads through a lower-current bypass path. The 200A bypass design is built for homes and properties with higher electrical demands.

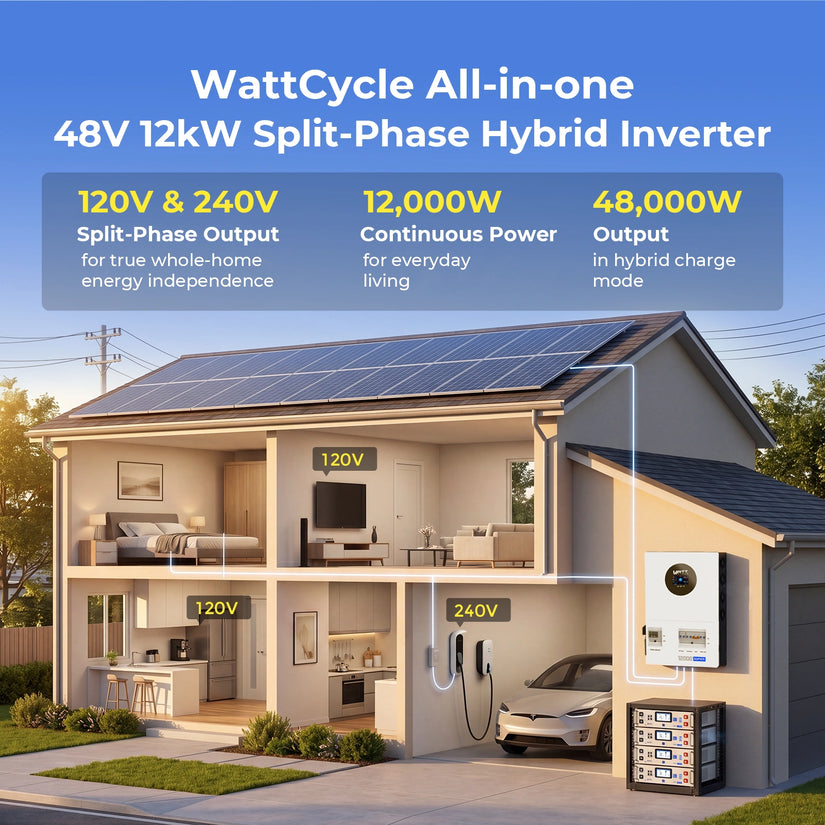

  • 12kW Split-Phase Backup Power: Power both 120V and 240V loads from a single inverter. With 12kW of continuous output, 18kVA peak power and rated motor capability up to 6HP, the system is designed for compatible air conditioners, pumps, compressors, refrigerators, lighting and workshop equipment.

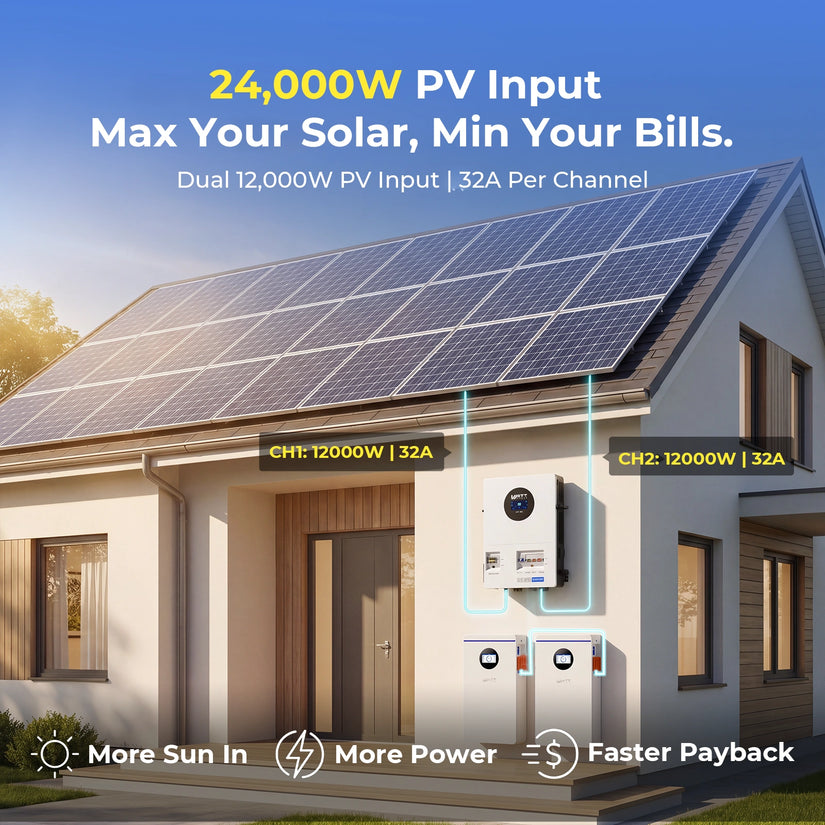

  • 24kW Dual-MPPT Solar Input: Connect up to 24kW of solar through two independent 12kW MPPT channels. Each MPPT supports up to 32A input, providing greater flexibility for larger arrays, multiple roof orientations and changing solar conditions.

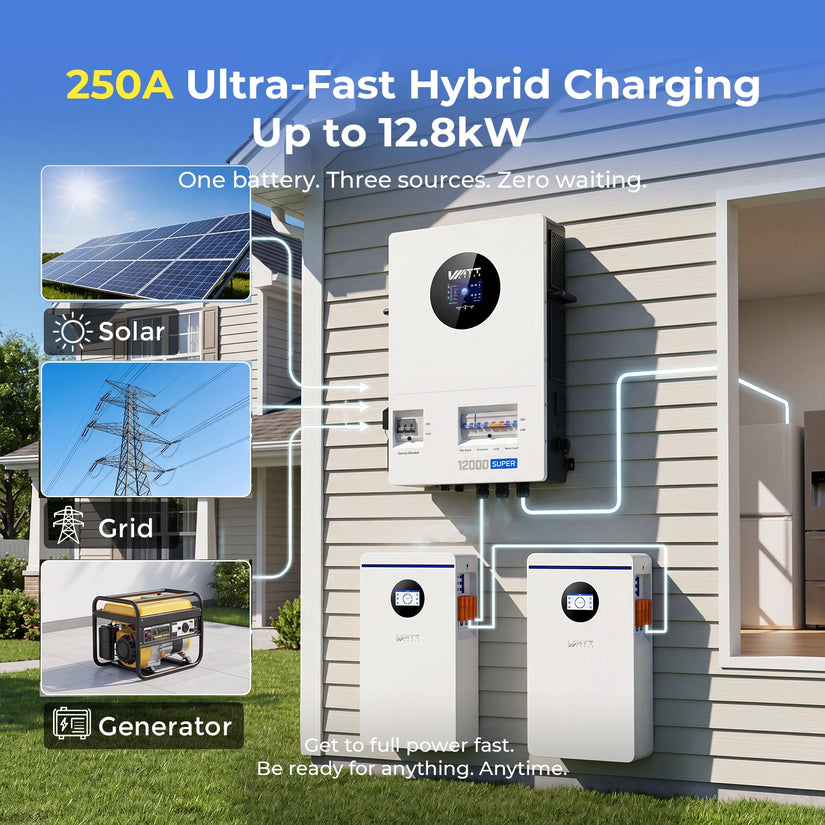

  • Up to 250A Hybrid Charging: Combine AC and solar charging for up to 250A of total charging current—approximately 12.8kW at a 51.2V nominal battery voltage. Recharge large battery banks faster and reduce the amount of time spent relying on utility or generator power.

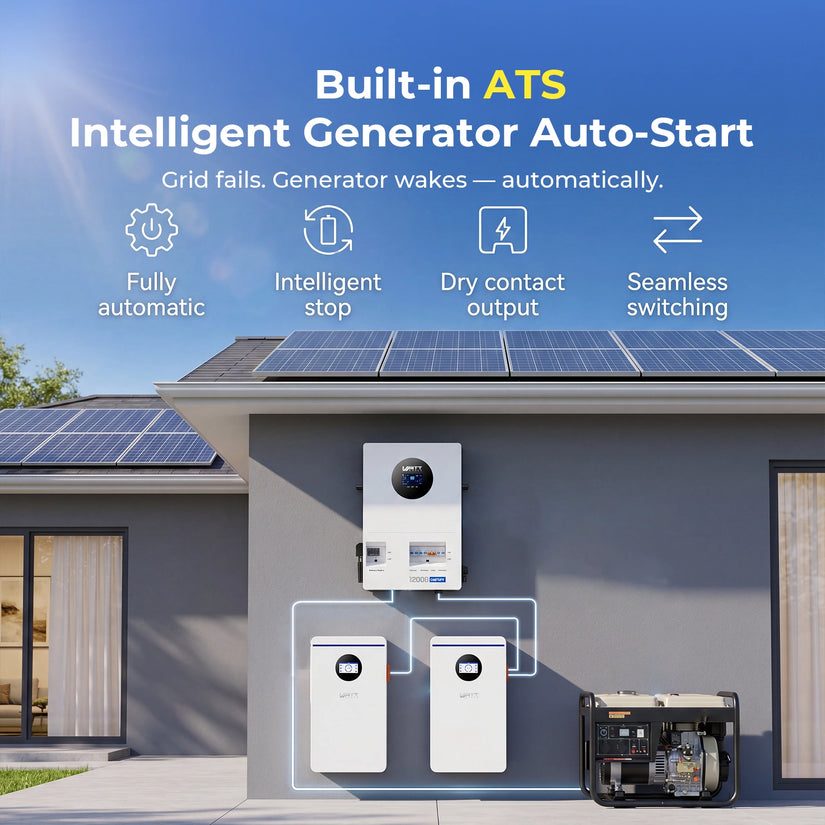

  • Generator, Smart Load and AC-Coupling Support: A dedicated generator input, dry-contact control, scheduled charging and programmable smart-load output provide more control over how energy is generated, stored and used. The smart-load interface can also be configured as an AC-coupled input for compatible equipment.

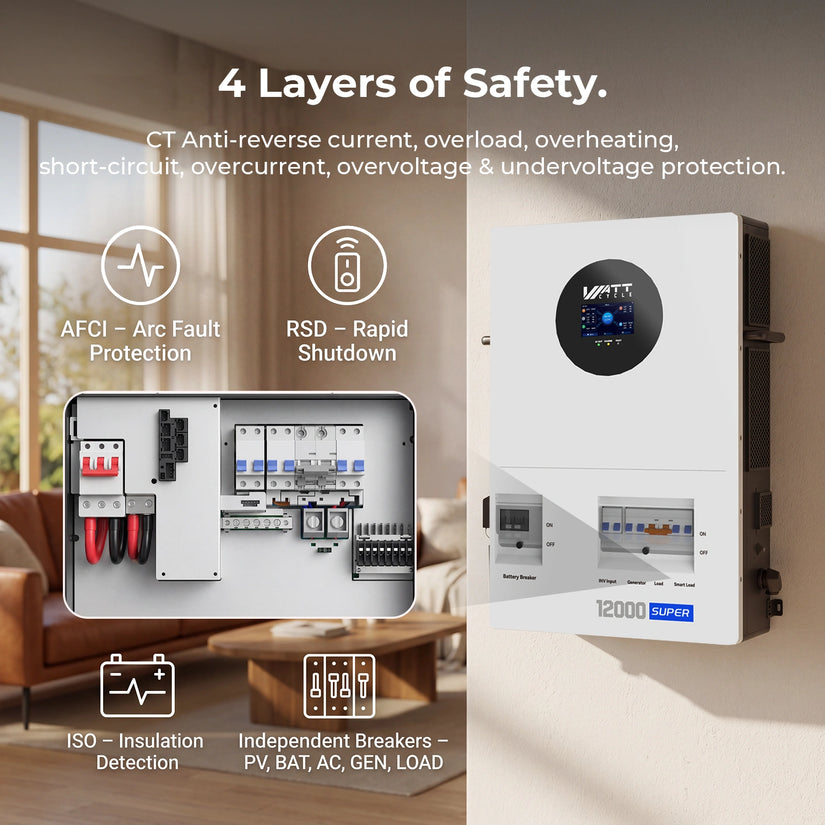

  • Integrated Solar and Electrical Protection: Built-in AFCI detection, photovoltaic rapid shutdown support, insulation-resistance monitoring, overload protection, short-circuit protection and reverse-polarity protection help safeguard the inverter, solar array, battery bank and connected loads.
  • Expandable Up to 72kW: Parallel up to six inverter units for a combined power capacity of up to 72kW. CAN, RS485, USB and Wi-Fi communication support flexible local and remote system monitoring and control.
  • *The 200A rating refers to the built-in AC bypass path. Battery-powered inverter output is rated at 12kW continuous and 18kVA peak.

View More
Option

We offer free shipping within the continental U.S. via UPS Ground or FedEx, with orders typically processed in 1–2 business days and delivered within 2–5 business days. Large products such as 12V 628Ah, 48V 314Ah batteries, or 12kW inverters are shipped by truck (LTL) and require signature upon delivery. After order confirmation, we will contact you by email to confirm shipment, and transportation arrangements typically take about 48 hours. Please note that we do not ship to Alaska, Hawaii, Puerto Rico, or PO Box addresses. Delivery times may vary due to external factors such as carrier delays or weather conditions.

For complete details, please visit:
Shipping Policy.

Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.

For full terms, conditions, and claim details, please visit:

Warranty Policy

  • Fast, Free Shipping
    Fast, Free Shipping
  • 30-Day Money-Back Guarantee
    30-Day Money-Back Guarantee
  • Hassle-Free Warranty
    Hassle-Free Warranty
  • Lifetime Customer Support
    Lifetime Customer Support
Payment Method
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
  • WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
WattCycle 12kW Split-Phase Inverter with 200A Grid Bypass - 24kW Dual MPPT & 250A Hybrid Charging
$1,999.99

12kW Backup Power. 200A Grid Pass-Through. 24kW Solar Input.

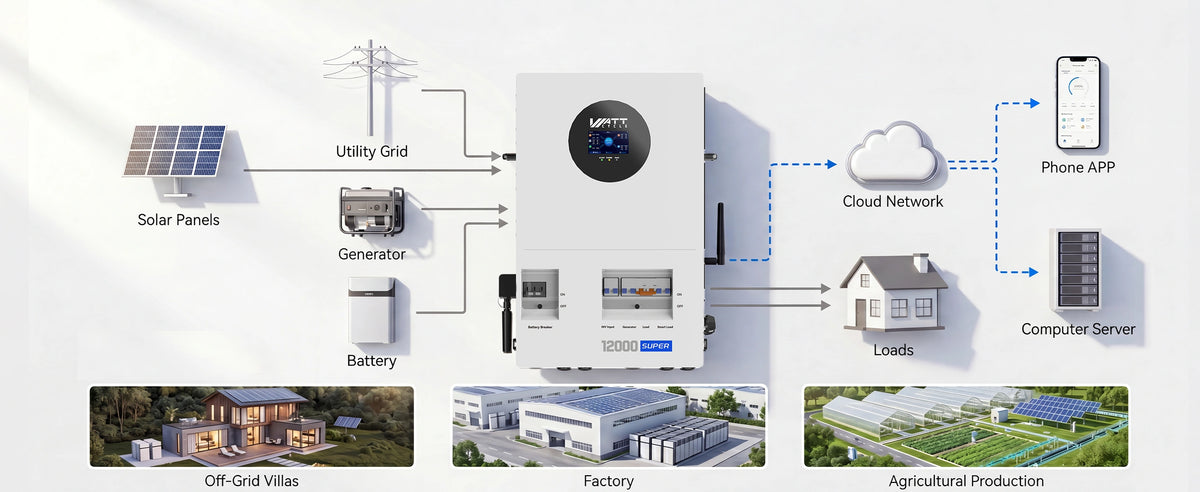

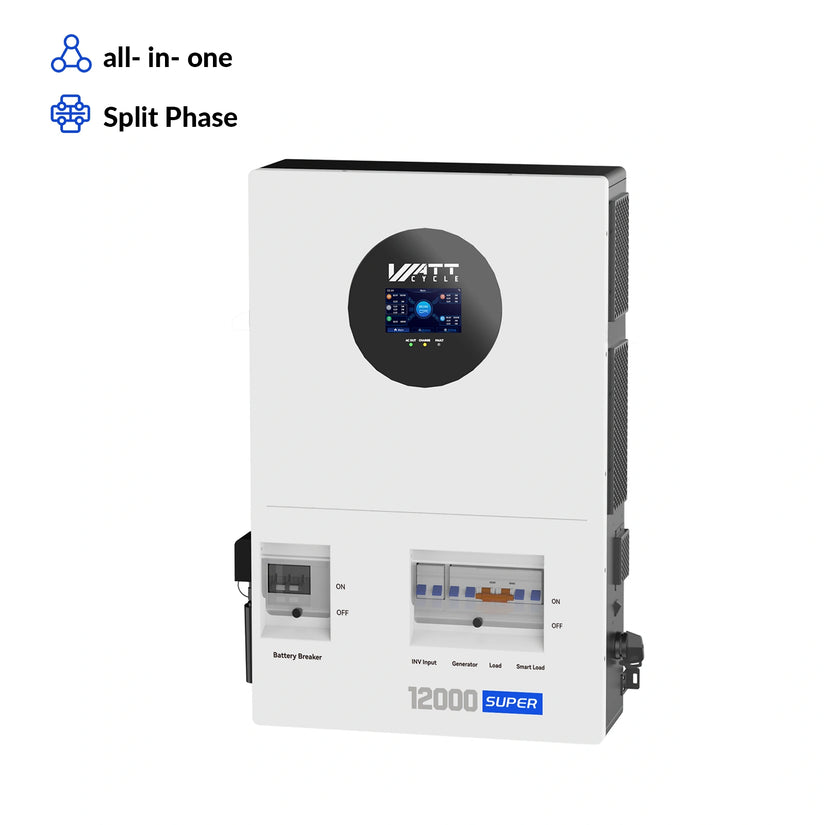

The WattCycle 48V 12kW Split-Phase Off-Grid Inverter Charger is designed for high-demand home backup, off-grid properties, farms and workshops. It combines a built-in 200A 2-pole grid bypass, 12kW continuous 120/240V split-phase output, 24kW dual-MPPT solar input and up to 250A hybrid charging in one expandable 48V power system.

Unlike many conventional 12kW off-grid inverters that limit utility pass-through through a 63A or 100A bypass path, WattCycle supports a substantially higher-capacity AC bypass circuit while grid power is available. When an outage occurs, the inverter switches to battery power in approximately 10 milliseconds and delivers 12,000W of continuous pure sine wave output with up to 18kVA peak power.

48V 12kW Split-Phase Inverter with 200A Bypass Tech Specs

General

Product Type 48V Split-Phase Off-Grid Inverter Charger

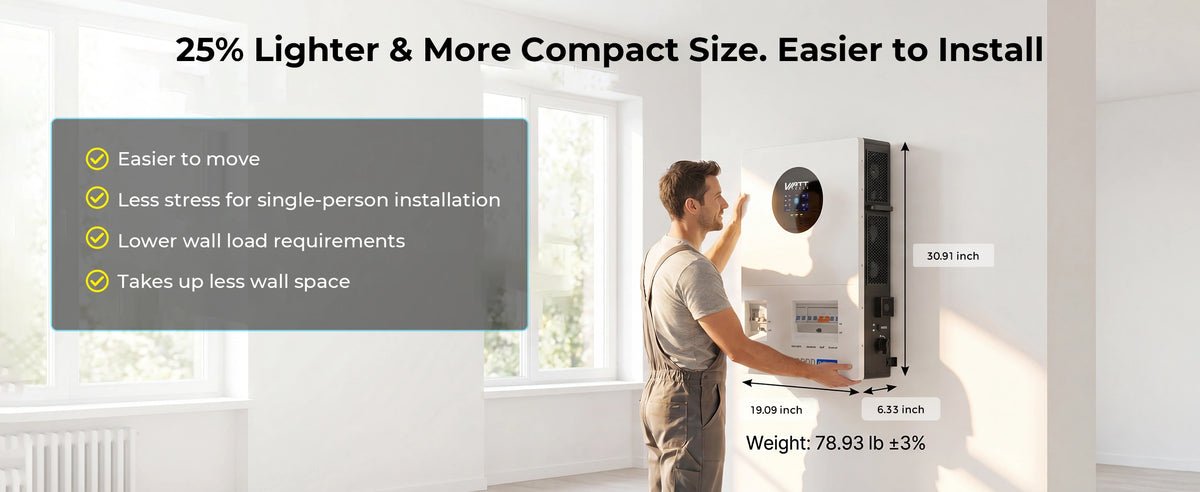

Dimensions 30.91 x 19.09 x 6.33 in.
Net Weight 78.93 lbs ±3%
Operating Temperature 14°F to 131°F / -10°C to 55°C
Derating above 113°F / 45°C
Humidity Range 5% to 95% (Conformal Coating Protection)
Noise Level ≤60 dB
Cooling Method Forced Air Cooling with Variable-Speed Fan

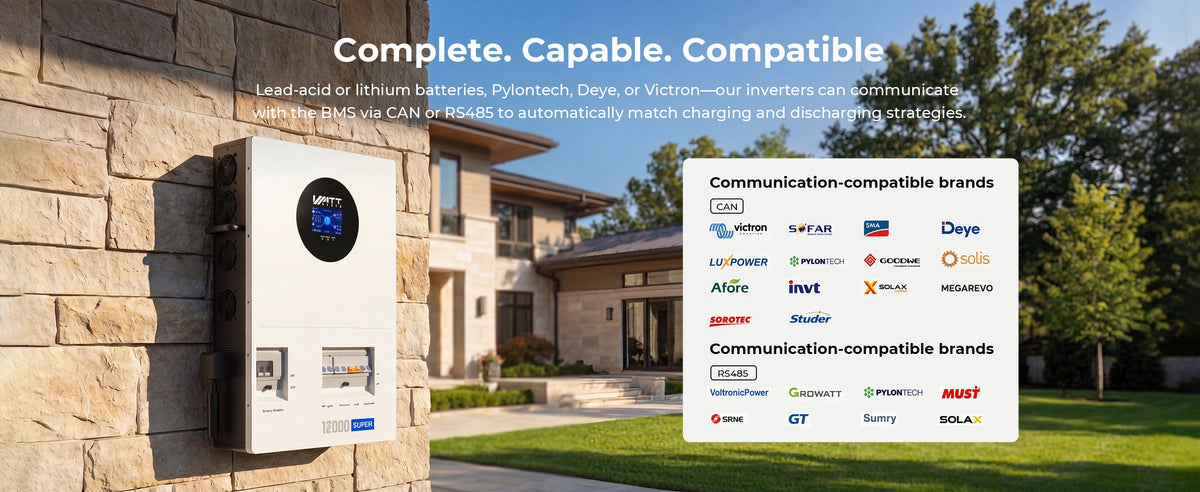

Communication CAN / USB / RS485 / Wi-Fi / GPRS / Dry Contact
Local & Remote Control Supported
EMC Certification FCC Part 15, Class B

AC Input & 200A Bypass

Rated AC Input Voltage 120Vac (L1/N, L2/N) / 240Vac (L1/L2)
AC Input Phase Voltage Range 85Vac to 140Vac ±2%
Input Frequency 50Hz / 60Hz, Automatic Detection
50Hz Input Frequency Range 47 ±0.3Hz to 55 ±0.3Hz
60Hz Input Frequency Range 57 ±0.3Hz to 65 ±0.3Hz
Built-In Bypass Breaker 2-Pole, 200A / 200A (L1/L2)
Maximum Bypass Phase Overload Current 200A / 200A (L1/L2)
Bypass-to-Inverter Transfer Time 10ms Typical
AC Mode Efficiency >95%
AC Reverse Protection Yes
AC Overload / Short-Circuit Protection Circuit Breaker

Inverter & AC Output

Rated Output Power 12,000W / 12,000VA (Split Phase)
7,200W / 7,200VA (Single Phase, Limited by Wiring Terminals)
Peak Output Power 18,000VA
Rated Output Voltage 120Vac (L1/N, L2/N) / 240Vac (L1/L2)
Output Voltage Waveform Pure Sine Wave
Power Factor 1.0
Output Voltage Accuracy ±5%
Output Frequency 50Hz ±0.3Hz / 60Hz ±0.3Hz
Maximum Inverter Efficiency >93%
Motor Load Capability Up to 6HP
Short-Circuit Protection Protection After 1 Second of Continuous Short Circuit
Power-Saving Mode Activates When Per-Phase Load Is 0 to 25W

Inverter Overload Protection

105% to 110% Load Reports an Error and Shuts Down After 5 Minutes
110% to 125% Load Reports an Error and Shuts Down After 10 Seconds
Above 125% Load Reports an Error and Shuts Down After 5 Seconds

Battery & AC Charging

Supported Battery Types Lithium or Lead-Acid Battery
Rated Battery Input Voltage 51.2V
Minimum Starting Voltage 44V
Battery Voltage Range 40.0Vdc to 58.6Vdc ±0.6Vdc
Maximum AC Charging Current 160A, Adjustable
AC Charge Voltage Range 40Vdc to 58.6Vdc
AC Charge Current Accuracy ±5Adc
AC Charging Circuit Breaker 2-Pole, 63A / 63A (L1/L2)
AC Charging Short-Circuit Protection Circuit Breaker and Fuse Protection
Lithium Battery Activation Supported Through Grid Power or Solar Power

Solar & MPPT Charging

Maximum PV Input Power 24,000W Total (12,000W + 12,000W)
Number of MPPT Groups 2
Maximum PV Input Current 32A + 32A
Maximum PV Open-Circuit Voltage 500Vdc
PV Operating Voltage Range 90Vdc to 500Vdc
MPPT Voltage Range 90Vdc to 450Vdc
PV Charging Current Up to 250A, Adjustable
PV Short-Circuit Protection Circuit Breaker
PV Wiring Protection Reverse-Polarity Protection

Hybrid Charging & Parallel Operation

Maximum Hybrid Charging Current 0 to 250A, Adjustable

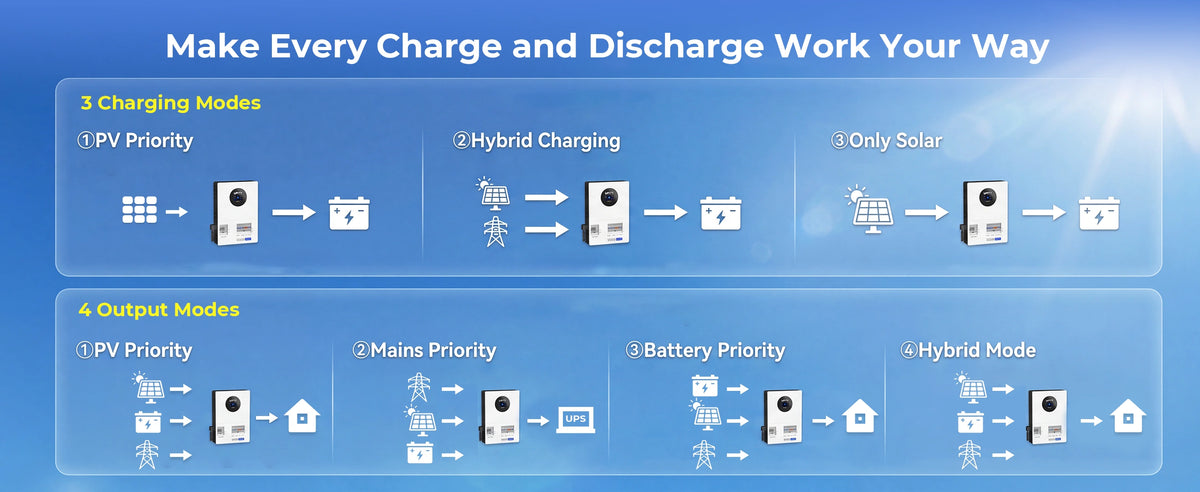

Hybrid Charging Sources AC + Solar
Maximum Parallel Units 1 to 6 Units
Maximum Parallel Output Up to 72kW

System Functions & Protection

Generator Connection Dedicated Generator Input with Dry-Contact Control
Scheduled Charging & Discharging Supported

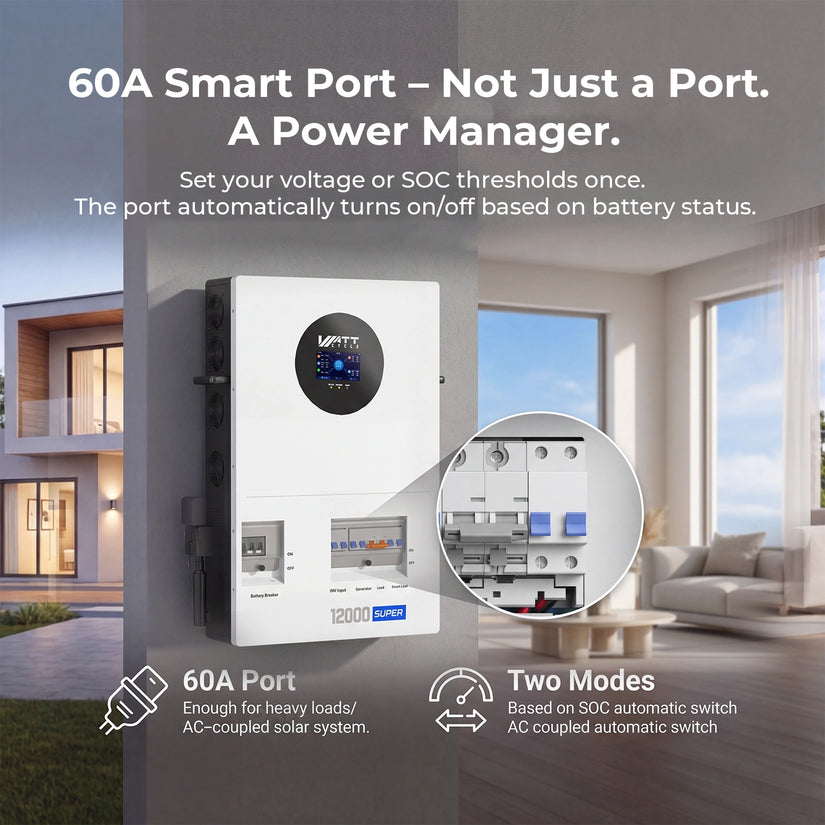

Output Interfaces Standard Load Output + Smart Load Output
AC-Coupled Input Smart Load Port Can Be Configured as AC-Coupled Input
AFCI Detection Supported
PV Rapid Shutdown RSD Supported
PV Insulation Monitoring ISO Insulation-Resistance Detection
Additional Protection Over-Voltage, Under-Voltage, Over-Current, Overload, Short-Circuit and Reverse-Polarity Protection

Note: The 200A specification refers to the built-in AC bypass circuit. Battery-powered inverter output is rated at 12,000W continuous with an 18,000VA peak output.
