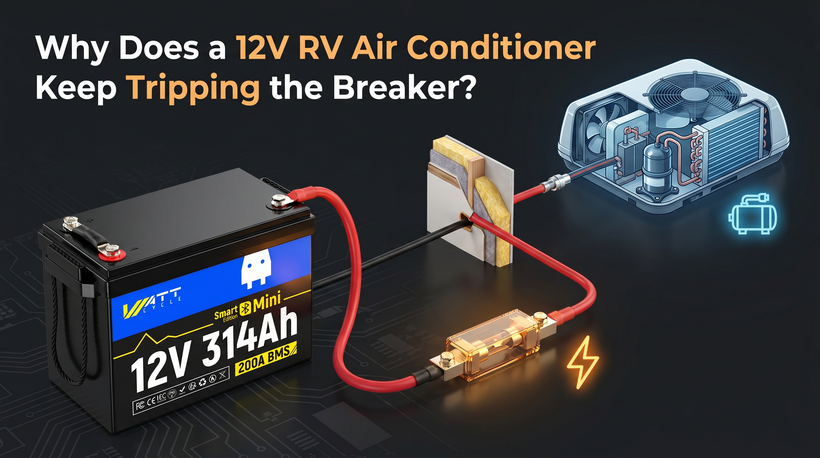

Why Does a 12V RV Air Conditioner Keep Tripping the Breaker?

A 12V rooftop air conditioner pulls a lot of current through a fairly small wire, over a fairly long run, which means it's less forgiving of shortcuts than most other RV electrical work. If yours keeps tripping, the good news is that the cause is almost always one of three things: the wiring, the fuse or breaker, or the battery's own protection circuit. Here's how to tell which one you're dealing with, and what the underlying electrical math actually looks like.

What Wire Gauge Does a 12V RV Air Conditioner Circuit Typically Require?

Manufacturer installation guidance for 12V RV air conditioners like the CountryMod specifies a 5 AWG cable, typically run at around 15 feet in length, paired with two inline fuses (commonly 120A and 150A). That's not an arbitrary number. As a rough reference, 4 AWG wire can handle about 70A over a short run under 10 feet, and 6 AWG about 55A over the same distance. A 12V air conditioner's operating current, roughly 20 to 30A in Eco mode and 45 to 55A in Turbo mode, sits right in the range where wire gauge choice actually matters, rather than being a case where any reasonably thick wire will do the job.

The important detail most people miss is that ampacity charts assume a fairly short cable run. Once you're routing 15 feet from a battery bay up through a wall cavity to a rooftop unit, the relevant number shifts from "what can this wire carry without overheating" to "what can this wire carry without an unacceptable voltage drop." Those are two different questions, and the second one is usually the stricter limit in a 12V system.

How Does Undersized Wiring Cause Voltage Drop and Nuisance Trips?

Voltage drop happens because every foot of wire has some resistance, and that resistance eats a small amount of voltage under load. In a 12V system, that loss matters far more than it would at 120V, since a 0.5V drop is a meaningful percentage of your total voltage. Most DC wiring guides recommend keeping the drop under 2 to 3% for a circuit like this one, and a common industry note puts it plainly: a wire that drops 8% of system voltage won't catch fire, but the equipment it feeds will start to malfunction.

Here's where it becomes a vicious cycle rather than a one-time issue. Wattage stays roughly constant for a given cooling demand, so if voltage sags under an undersized wire, the air conditioner's control board compensates by drawing more current to make up the difference. That extra current causes more heat and more voltage drop, which pushes the draw even higher. Depending on how the unit's internal protection is calibrated, this can show up as a trip that seems to happen "randomly," often worse on hot days when the compressor is already working harder, or worse after the wire has warmed up during a long cooling cycle. If your air conditioner tends to trip a few minutes into a Turbo cycle rather than immediately at startup, undersized wiring is a strong suspect.

What Size Fuse or Breaker Prevents a Short Circuit in This Setup?

The rule that trips up a lot of new installers is this: a fuse protects the wire, not the appliance. You size the fuse or breaker to match the Ampacity of the wire you've run, not to whatever number sounds safely large for the air conditioner. If your cable is rated for, say, 100A, it should carry a fuse at or below that rating, never above it, even if the air conditioner spec sheet mentions a higher peak draw.

This is also why manufacturer kits like CountryMod's ship with two separate fuses rather than one. A high-current main fuse (of the ANL or MEGA type) typically sits close to the battery terminal, protecting the full length of cable from a short circuit, while a second fuse or breaker closer to the unit adds a layer of protection specific to that end of the run. If you're building your own cable rather than using the pre-fused one that ships with the unit, match the fuse rating to your actual wire gauge, and place the main fuse as close to the battery's positive terminal as physically possible, since that's the point where a short circuit would do the most damage.

How Does a Battery's BMS Discharge Rating Affect Air Conditioner Startup Current?

Every WattCycle LiFePO4 battery has a Battery Management System that constantly monitors current, voltage, and temperature, and it will cut power the instant any of those readings exceeds its programmed limit, regardless of whether your wiring and fuses are sized correctly. This is a separate failure mode from a blown fuse or a wiring problem, and it's worth understanding because the symptom looks identical from the outside: the air conditioner just shuts off.

Compressor-driven loads typically draw more current for a brief moment at startup than they do once running steadily, sometimes noticeably more, which is why sizing guidance for BMS ratings usually recommends leaving meaningful headroom above your expected running current specifically to accommodate that. The 12V RV air conditioners in this category use variable-speed inverter compressors with a soft-start function, which meaningfully reduces this startup spike compared to older fixed-speed AC compressors, but it doesn't eliminate the effect entirely. If your battery's BMS is rated close to the air conditioner's steady running current with little margin left over, that startup moment can be enough to trigger an over-current protection shutdown even though nothing is actually wrong with the battery or the wiring.

What Continuous Discharge Rate Should Your LiFePO4 Battery Support?

As a working guideline, your battery's continuous discharge rating should sit comfortably above the air conditioner's steady-state draw, with extra headroom set aside for that brief startup spike. If your unit draws up to roughly 55A in Turbo mode, a battery whose BMS is only rated for 60A continuous is cutting it close. One rated for 100A or more gives you a real safety margin rather than a theoretical one.

This is one area where battery capacity and discharge rating tend to scale together in a well-designed pack. WattCycle's 12V 314Ah Mini LiFePO4 battery, for example, carries a continuous power output rating of 2,560W, which works out to roughly 200A continuous at 12.8V nominal, well beyond what a single 12V air conditioner circuit will ever ask of it even during startup. That kind of headroom is exactly what prevents the BMS from being the bottleneck in a setup like this, and it's worth checking this figure on any battery you're considering before wiring up a compressor-driven load, rather than assuming Ah capacity alone tells the whole story.

How Do You Diagnose Whether the Problem Is Wiring, Fuse Size, or the Battery Itself?

When a 12V RV air conditioner keeps tripping, working through these checks in order usually narrows it down quickly:

• Check when the trip happens. An instant trip at startup points toward a fuse sized too close to the RV air conditioner's peak draw, or a BMS with insufficient surge headroom. A trip that happens a few minutes into a cooling cycle, especially in Turbo mode, points toward voltage drop from undersized or overly long wiring.
• Measure voltage at both ends of the run. With the 12V air conditioner running, check voltage right at the battery terminals, then at the air conditioner's power input. A gap larger than roughly 3% of system voltage under load indicates the wiring itself is the problem.
• Check the actual current draw with a clamp meter. Compare this reading against both your fuse rating and your battery's BMS continuous discharge rating. If the fuse or breaker is rated close to or below what the unit is actually pulling, that's your answer.
• Listen and look at the battery itself. A BMS-triggered shutdown on many LiFePO4 batteries is accompanied by an audible click from the internal contactor, and some models show a fault code on an app or display. If the wiring checks out and the fuse hasn't blown, but the air conditioner still cuts out, the battery's discharge limit is the likely cause.

Working through these four checks in sequence will usually tell you exactly which part of the system needs attention, rather than leaving you guessing between a wiring problem, a fuse problem, and a battery problem that each look the same from the driver's seat.
