Why This Test Matters

The main concern around internal battery wiring is simple: can the wiring safely handle high current without creating dangerous heat buildup?

To answer this question, our engineering team tested the WattCycle 12V 314Ah MINI Base Model under a demanding condition: 1 hour of maximum continuous discharge at the battery’s upper current limit.

It is important to note that this is part of WattCycle’s standard pre-shipment engineering validation process.

This condition is harsher than most real-world RV, marine, off-grid, or solar storage applications. In daily use, customers rarely pull maximum continuous current for a full hour without interruption.

That makes this test an important safety benchmark. If the battery remains thermally stable under this stress condition, it provides strong evidence that the internal wiring design is safe for normal real-world use.

Test Data: Internal Temperature Performance

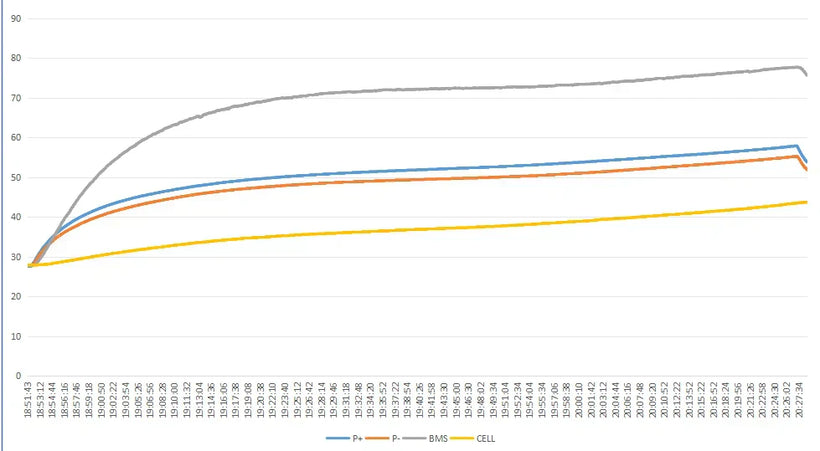

The chart tracks four key internal temperature points during the 1-hour discharge test:

• P+ Line: Main positive power line temperature
• P- Line: Main negative power line temperature
• BMS: Battery Management System temperature
• Cell: LiFePO4 battery cell temperature

These readings help us understand how the battery performs not only at the cell level, but also at the wiring, terminal, and control-system level.

Key Result 1: The Main Power Lines Stayed Within a Safe Range

During the full-load discharge test, the main power lines, represented by the P+ and P- curves, rose from approximately 28°C at the beginning of the test to a peak of around 58°C.

That means the actual temperature rise was approximately:

58°C - 28°C = 30°C

Our engineering conclusion confirms that the temperature rise of the main conductive components was ≤31°C under maximum continuous discharge.

This is a critical result. A low temperature rise under heavy current means the internal wiring has sufficient current-carrying capacity and does not create excessive resistance or dangerous hot spots.

In simple terms, the three-wire configuration does not choke the current, does not overheat, and remains thermally stable under full-load stress.

Key Result 2: The BMS Reached Thermal Equilibrium

The grey curve in the chart represents the BMS temperature. The BMS naturally generates more heat than the battery cells because it manages current flow and includes high-load electronic components such as MOSFETs.

During the test, the BMS temperature gradually increased and then stabilized at around 77°C–78°C.

This stabilization is important. It means the BMS reached thermal equilibrium instead of continuing to climb without control.

A continuously rising temperature curve would be a warning sign. In this test, the opposite happened: the BMS temperature flattened, showing controlled heat behavior during sustained high-current discharge.

Key Result 3: The Battery Cells Stayed Cool

The yellow curve represents the LiFePO4 battery cell temperature.

Even after one hour of maximum continuous discharge, the cells remained around 43°C–44°C.

This is a strong result for LiFePO4 battery safety and lifespan. Battery cells are the heart of the system, and keeping them at a moderate temperature helps support long-term reliability.

The test shows that the internal structure does not trap excessive heat around the cells, even while the battery is operating under a heavy discharge load.

What This Proves About the Three-Wire Version

Based on the test data, the WattCycle 12V 314Ah MINI Base Model with the three-wire configuration demonstrates:

• Stable thermal performance under maximum continuous discharge
• Main conductive components with only about 30°C temperature rise
• No evidence of dangerous heat accumulation around the wiring
• Battery cells maintained at a controlled temperature
• BMS temperature stabilized instead of rising uncontrollably

This confirms that the three-wire internal configuration is a validated engineering design, not a safety defect.

Why Are There Different Internal Versions?

As part of normal manufacturing improvement, WattCycle has continued to optimize internal layouts and component structures across different battery models and production batches.

Some newer versions use a flat braided wiring design, while the 12V 314Ah MINI Base Model may use the earlier three-wire configuration.

The purpose of these updates is to improve manufacturability, consistency, and future serviceability. However, a newer internal layout does not mean the previous version was unsafe.

Both designs are built to meet our safety and performance requirements.

That said, we recognize that our communication should have been clearer. Customers should not have to discover internal design differences only through third-party teardown videos, YouTube discussions, or community comparisons.

We hear that feedback.

Our Commitment Moving Forward

We acknowledge that the issue was not the engineering safety of the three-wire version. The issue was communication.

Going forward, WattCycle will improve transparency around product versions, internal design updates, and rolling production changes.

When meaningful design optimizations happen, we will work to communicate them more clearly to our customers and community.

For customers who have questions about their WattCycle 12V 314Ah MINI battery version, our support team is ready to help.

Final Engineering Conclusion

The WattCycle 12V 314Ah MINI Base Model with the three-wire configuration has passed a 1-hour maximum continuous discharge thermal test.

The test confirms that the main power lines reached only about 58°C, with a temperature rise of approximately 30°C, while the cells remained around 43°C–44°C and the BMS stabilized around 77°C–78°C.

This data demonstrates that the three-wire version is safe, stable, and suitable for real-world RV, marine, off-grid, and solar storage applications.

At WattCycle, we will continue to stand behind our products with engineering data, transparent communication, and long-term customer support.

Thank you for holding us to a higher standard. We will keep improving.

WattCycle reserves the final right of interpretation regarding this test data, product version explanation, and related support policy.

FAQ: WattCycle 12V 314Ah MINI Wiring Version

Is the WattCycle 12V 314Ah MINI three-wire version safe?

Yes. Based on WattCycle engineering test data, the three-wire version passed a 1-hour maximum continuous discharge thermal test and remained thermally stable.

Why does one WattCycle 12V 314Ah MINI version use three wires while another uses flat braided wiring?

Different internal layouts may appear across production batches and product versions as part of normal manufacturing optimization. The newer flat braided wiring design does not mean the earlier three-wire version is unsafe.

What was the maximum temperature during the test?

During the 1-hour maximum continuous discharge test, the main power lines reached around 58°C, the battery cells remained around 43°C–44°C, and the BMS stabilized around 77°C–78°C.

Does this article respond to the Will Prowse WattCycle discussion?

This article addresses recent public discussion in the DIY solar and RV community, including content from Will Prowse, by sharing WattCycle engineering test data for the 12V 314Ah MINI Base Model.
