Running a farm off the grid used to mean accepting serious limitations. Flickering lights, unreliable appliances, and a generator that seemed to burn through fuel the moment you needed it most. Today, that picture looks very different. With mature solar technology, high-capacity LiFePO4 batteries, and intelligent hybrid inverters, building a reliable solar battery system for a farm is genuinely within reach for most property owners. The results, done right, can match or outperform grid power in dependability.
This guide walks you through the entire process of building a complete power system for a farm or rural property: how to assess your actual energy needs, how to size your solar array and battery bank, how to choose the right components, and how to put it all together into a system that works day after day. Where relevant, we'll show you exactly how WattCycle's battery and inverter fit into each stage of the build.
Whether you're starting from scratch or working with panels you already have, this is the right place to start.
What Does Your Farm Actually Need?
The single most common mistake people make when planning an off-grid system is buying hardware before they understand their load. It seems backwards, but the battery bank and inverter you need are entirely determined by what you're powering, not the other way around.
Before you look at some battery and inverter pages, sit down and map out your electricity usage. This process is called a “load assessment”, and it forms the foundation of everything that follows.
How to Calculate Your Daily Energy Use
The formula is simple:
Watts × Hours per day = Watt-hours per day (Wh/day)
For example, a 150W refrigerator running effectively 8 hours out of every 24 (compressors cycle on and off) uses 1,200 Wh per day. A set of ten 10W LED lights running 5 hours per evening uses 500 Wh per day. Add those together with everything else, and your total gives you your daily load.
Common Farmhouse Loads by Category
Every farm household is different, but most off-grid farmhouse loads fall into the following categories. Use this as a starting checklist, not a fixed list.
Kitchen appliances tend to be moderate but continuous. A full-size refrigerator typically draws between 100W and 200W and runs roughly 8 to 12 hours per day in effective on-time. A chest freezer is similar. A microwave draws 1,000W to 1,500W but is used for only a few minutes at a time, so its daily watt-hour impact is relatively small.
Laundry is one of the heaviest loads in any farm household. An electric clothes dryer is among the most demanding appliances you can run off-grid, pulling 4,000W to 6,000W per cycle and requiring 240V power. A washer is significantly lighter, typically 400W to 1,200W depending on the model. If you have an electric dryer, your system design must account for it explicitly, as it will shape both your inverter choice and your battery bank size more than almost anything else.
Lighting is often overstated as a load concern. If you have switched to LED fixtures throughout, lighting rarely accounts for more than 500 to 800 Wh per day even in a large farmhouse. If you still have older incandescent or halogen fixtures, the numbers climb considerably, and switching to LED before designing your system will meaningfully reduce your required battery bank size.
General outlets cover a wide range of smaller loads: phone and laptop chargers, fans, small power tools, entertainment electronics, and so on. These vary widely between households but typically add between 500 Wh and 1,500 Wh per day in aggregate.
Water systems are the category most people forget until after they've sized their system. If your farm relies on a well pump, that pump can draw anywhere from 750W to over 2,000W depending on depth and flow rate, and it may run multiple times per day. A pressure pump serving a storage tank has a different duty cycle than a pump pulling directly from a deep well. Either way, it's a significant load that must be included in your calculations.
Surge Watts vs. Running Watts
This distinction matters a great deal for motor-driven loads: refrigerators, freezers, well pumps, washers, and air conditioners all draw significantly more power at startup than they do during normal operation. A well pump with a 1,000W running draw might require 3,000W or more at the moment it starts. Your inverter must be rated to handle these surge demands, not just the steady-state running loads.
Farmhouse Load Reference Table
The values below are estimates based on typical appliances. Your actual figures may vary, so always check the nameplate or energy label on your specific devices, and carefully assess the average duration of your daily use of electrical appliances.
Once you have your total daily watt-hours, add a 20% buffer to account for inverter inefficiency and days when usage runs higher than average. This adjusted figure is your working daily load number.
How Much Solar Does Your Farm Need?
With your daily load in hand, you can start sizing your solar panel. The goal here is to generate enough energy on a typical day to cover your consumption and keep your batteries topped up, with room for variance.
Peak Sun Hours
Solar panels don't produce their rated output around the clock. They produce peak output only when the sun is directly overhead and conditions are ideal. The concept of "peak sun hours" accounts for this by expressing the total daily solar energy at your location as the equivalent number of hours at full rated output.
A 300W panel in a location with 5 peak sun hours per day will produce roughly 1,500 Wh per day under those conditions. Actual production is typically 15–25% lower after accounting for heat losses, wiring losses, and real-world panel degradation.
If you already have solar panels installed, you have a starting point. A 12-panel array at 225W per panel gives you a total array capacity of 2,700W. In a location with 5 peak sun hours and a 20% real-world derating factor, that array will produce approximately:
2,700W × 5 hrs × 0.80 = 10,800 Wh per day
That's a solid foundation for a light-to-moderate farmhouse load. Whether it's sufficient depends entirely on your daily demand figure from Section 1. If your calculated daily load exceeds what your existing array can produce on a typical day, you'll need to either expand the array, reduce consumption, or size your battery bank to buffer several consecutive cloudy days.
But before you think about adding panels, there's a factor that often gets overlooked: your inverter's solar input capacity.
A solar array can only deliver as much energy into your system as the inverter is rated to accept. If your inverter's maximum PV input is, say, 6,000W, and your array is capable of producing 10,000W on a bright afternoon, the inverter will only process 6,000W of that output. The remaining potential is simply lost. The panels are generating it, but the system just can't use it. This is called clipping, and on a farm-scale system with a large array, it can represent a meaningful portion of your daily energy production.
This is why inverter input capacity deserves as much attention as battery size when you're planning or expanding a system.
How the WattCycle Inverter Removes That Bottleneck
The WattCycle 48V 12kW Hybrid Inverter supports up to 18,000W of total solar input across two independent MPPT channels (PV1 + PV2), with over 98% charging efficiency. In practical terms, that means:
- No wasted solar production: For most farm-scale arrays — including significantly larger ones than the 2,700W example above — the inverter's input capacity comfortably exceeds what the panels can generate. You're not leaving energy on the table because the inverter can't keep up.
- No space constraints on panel placement: The two independent MPPT channels allow you to connect two separate strings of panels regardless of their orientation, tilt, or location. A south-facing roof section and a ground-mount array on the east side of the barn can each connect to their own MPPT input and be optimized independently. You're not forced to combine all panels into a single string or compromise placement for the sake of wiring simplicity.
- Better harvest on imperfect days: When each MPPT channel tracks its own string independently, partial shading or cloud cover affecting one part of the array doesn't drag down the output of the other. On a partly cloudy afternoon, you recover energy from whichever string has the better angle to the sun at that moment.
- Simultaneous load supply and battery charging: The inverter doesn't make you choose between powering your home and charging your batteries. Solar input is prioritized to cover active loads first; any surplus beyond what the loads require flows directly into the battery bank. During peak production hours, your refrigerator, lights, and washer can all be running while the batteries are charging at the same time — without any manual switching or management on your part.
This last point matters more than it might seem. An inverter that can only do one thing at a time forces you into inefficient energy management. The WattCycle inverter handles both simultaneously and automatically, which is the behavior you need from a primary power source for a full farmhouse.
Choosing the Right WattCycle Battery for Your Farm
WattCycle offers three 48V LiFePO4 battery options for farm and off-grid use, each suited to a different scale of operation and installation environment. All three are built on LiFePO4 chemistry, include a battery management system (BMS), and are designed to operate at 48V, making them directly compatible with the WattCycle hybrid inverter.
Here's how to match the right battery to your farm's needs.
Light to Moderate Usage: WattCycle 5.12kWh 48V 100Ah Wall-Mounted LiFePO4 Battery
If your farm's daily load is roughly 5,000 to 10,000 Wh, covering a refrigerator, LED lighting, general outlets, and moderate appliance use without a heavy draw from a dryer or AC. The WattCycle 5.12kWh 48V 100Ah Wall-Mounted Battery is a natural starting point.
At 5.12 kWh of rated capacity and approximately 4 kWh of usable energy per cycle, a single unit provides a solid overnight buffer for lighter loads. The wall-mount form factor is well-suited to smaller utility spaces, attached garages, or farm buildings where floor space is limited. Multiple units can be connected in parallel to expand total capacity as your needs grow, making this the most modular option in the WattCycle lineup.
For a household targeting two days of autonomy on a 5,000 Wh daily load, two to three units provide a comfortable margin without overspending on capacity you may not need immediately.
Moderate to Heavy Usage: WattCycle 16kWh 48V 314Ah Wall-Mount Bluetooth LiFePO4 Battery
For households running a washer and dryer, a well pump, window AC, and the full range of typical farmhouse appliances, the WattCycle 16kWh 48V 314Ah Wall-Mount Bluetooth LiFePO4 Battery delivers meaningful capacity in a single unit.
At 16 kWh rated capacity and roughly 12.8 kWh usable, one unit covers the better part of a day's autonomy for a moderately loaded farm household, and two units give you the two-day buffer that most off-grid designers target as a minimum.
The built-in Bluetooth module is a practical advantage here: you can monitor state of charge, charge and discharge rates, and overall battery health directly from your phone, without additional monitoring hardware. For a farmhouse owner who wants to keep an eye on the system without becoming a full-time energy manager, real-time visibility matters.
The wall-mount design also keeps the installation clean and space-efficient. Rather than stacking multiple smaller units, you get high capacity in a consolidated footprint with fewer inter-battery connections to manage.
Larger Farms and Scalable Infrastructure: WattCycle 48V 100Ah 3U Server Rack LiFePO4 Battery
If your farm has heavy continuous loads, operates multiple buildings from a single battery bank, or you want to build a system with room for significant future expansion, the WattCycle 48V 100Ah 3U Server Rack LiFePO4 Battery is designed for that kind of installation.
The rack-mount form factor allows multiple units to be housed in a standard battery enclosure or server cabinet, stacking vertically with clean cable management and a professional installation appearance. This format is common in larger commercial and agricultural installations where the battery room is a dedicated, organized space rather than a corner of a garage.
Each 3U unit provides 4.8 kWh of usable energy. In a rack configuration, you might deploy six, eight, or more units depending on the total capacity target, expanding the bank incrementally as the farm's load grows or budget allows.
All three battery options operate at 48V, which means any of them can be paired directly with the WattCycle 48V 12kW Hybrid Inverter without a voltage converter or additional interface hardware.
What Does a Solar Battery Storage System Cost?
For most people planning an off-grid farm system, cost is one of the first questions and often one of the hardest to get a straight answer on. The honest reply is that it depends heavily on your load size, how much of the system you already have, and which components you choose. That said, the inverter and battery bank together typically represent the largest share of the hardware budget — and that's exactly where you can control costs most directly. WattCycle offers a bundled solution that pairs the two most important components in a single purchase.
As a reference point, the WattCycle 12000W 48V All-in-One Solar Inverter and WattCycle 16kWh 48V 314Ah Wall-Mount Bluetooth LiFePO4 Battery bundle is priced at $3,499.98, saving you $200 compared to purchasing each unit separately.
For a moderate-to-heavy farmhouse load, this bundle covers the two components that define what your system can do: the inverter determines what appliances you can run and how efficiently your solar input is used, while the battery determines how long you can run them without the sun. Getting both in a single, price-reduced package is a practical way to anchor your solar battery storage system cost without compromising on capacity or capability.
How to Build a Battery Storage System for Solar Farms
Once you know your load and have chosen your battery bank, the inverter is the next critical decision. In a well-designed solar battery system, the inverter is the central point of the entire installation, it manages energy flow between your solar panels, your batteries, your loads, and any backup source.

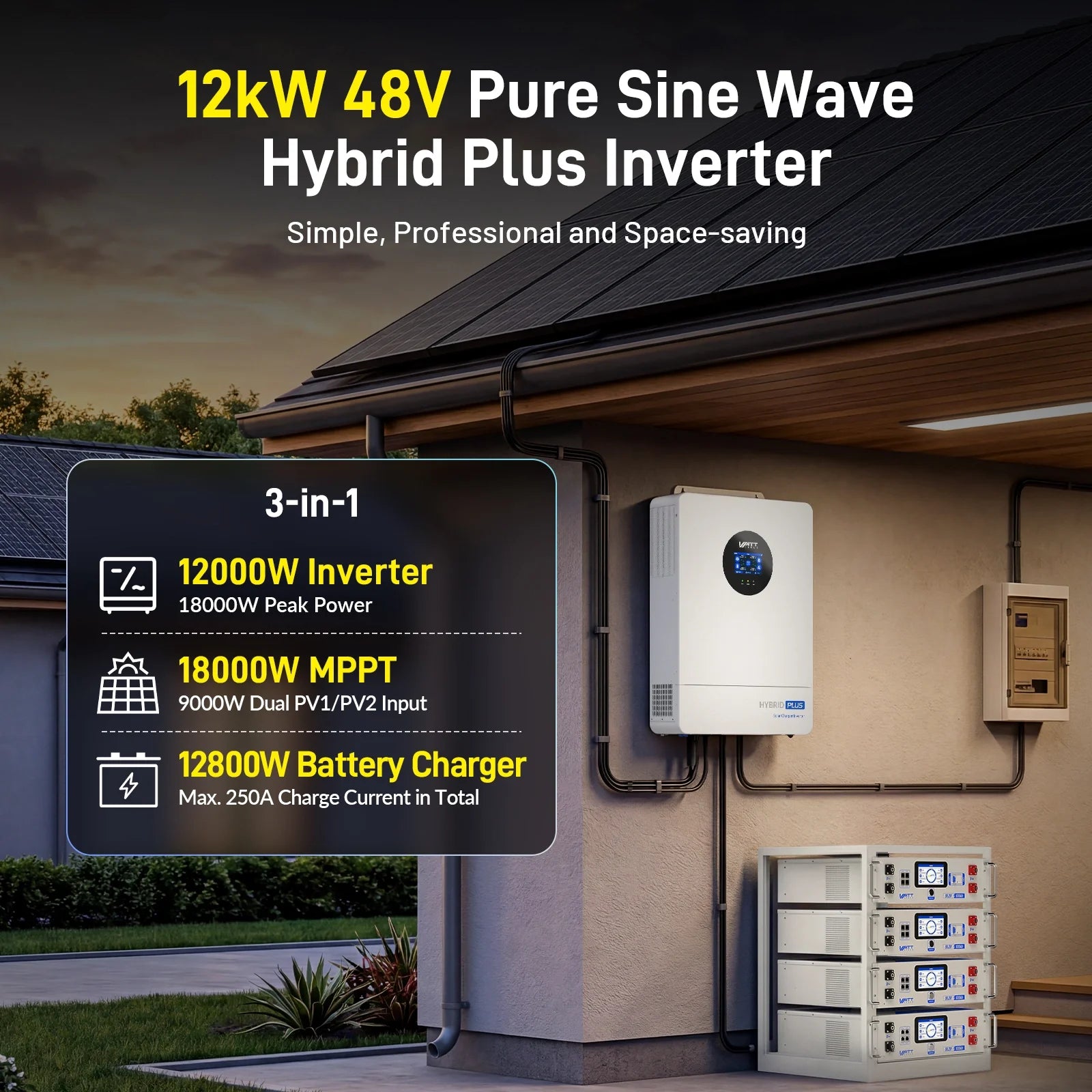

Introducing the WattCycle 48V 12kW All-in-One Hybrid Inverter
The WattCycle 48V 12kW All-in-One Hybrid Inverter (Split Phase 120/240V, 18kW Dual MPPT, 250A Charger) is designed specifically for the kind of whole-house or whole-farm installation this guide describes. Here's what each specification means in practical terms.
- 12kW continuous output means the inverter can sustain 12,000 watts of load at once. For reference, that covers a dryer (5,000W), a well pump (1,000W), a refrigerator (150W), an air conditioner (1,200W), and a full set of lights and outlets simultaneously — with capacity to spare. Most farmhouse loads are well within this envelope.
- Split Phase 120/240V output is essential for North American installations. Standard household outlets run on 120V. Electric dryers, most well pumps, and central air conditioners require 240V. An inverter that only outputs 120V cannot run those loads — you would be forced to replace your dryer with a propane unit or find an alternative for 240V loads. The WattCycle inverter handles both, which means your existing wiring and appliances work as-is.
- 18kW Dual MPPT means the inverter has two independent Maximum Power Point Tracking charge controllers built in, each capable of handling up to 9kW of solar input. This does two things: it allows you to connect two separate strings of panels (useful if they face different directions or are on different roof sections), and it allows each string to be optimized independently, improving total harvest when one string is partially shaded or differently oriented.
- 250A charging current from the built-in AC charger means the inverter can charge a large battery bank quickly from a generator or grid connection. At 48V, 250A represents 12,000W of charging power — enough to put significant energy back into a large battery bank during a relatively short generator run. This reduces generator runtime and fuel consumption during extended cloudy periods.
- All-in-one design means the solar charge controller, inverter, and AC charger are integrated into a single unit. Separate component builds require careful matching between an MPPT charge controller, an inverter, and sometimes a separate battery charger, and each interface between components is a potential point of failure or loss. An integrated unit simplifies the installation, reduces the overall component count, and typically has better internal coordination between functions.
Step by Step Building Your Complete Solar Farm Battery Energy Storage System
If you've worked through the sections above, you have everything you need to put a system plan together. Here's how the process flows from assessment to commissioning.
- Step 1: Calculate your loads. List every appliance you plan to run, its wattage, and its daily runtime. Total the watt-hours, add a 20% buffer, and note your highest-surge load. This number drives every downstream decision.
- Step 2: Size your solar array. Divide your daily load by the peak sun hours at your location, then apply a 20 to 25% real-world derating factor. If your existing panels cover the requirement, you're set. If not, determine how many additional panels you need. The WattCycle inverter's dual MPPT inputs accommodate two separate strings, giving you flexibility in how you expand.
- Step 3: Choose your WattCycle battery based on your usage profile. Light to moderate loads pair well with the 100Ah wall-mount battery, scalable by adding units in parallel. Moderate to heavy loads are well served by the 314Ah Bluetooth wall-mount battery, which provides high capacity and real-time monitoring in a single unit. Large farms and installations planned for future growth benefit from the modular 3U rack battery format.
- Step 4: Pair with the WattCycle 48V 12kW Hybrid Inverter. Confirm that your planned loads fall within the 12kW continuous rating and that your surge loads are within the inverter's surge capacity. Confirm that your solar array fits within the 18kW dual MPPT input capacity.
- Step 5: Plan wiring, fusing, and safety disconnects. Size all DC wiring to the full current demands of the system. Include properly rated fuses or breakers on every circuit. Plan for a DC disconnect on both the battery side and the solar array side of the inverter, and AC breaker protection on the output.
Conclusion
Building a reliable off-grid power system for a farm is a substantial project, but it's not a guessing game. Every component decision flows logically from your load assessment: your daily energy demand determines your battery bank size, your battery bank size and solar array determine your inverter requirements, and your inverter capacity determines what loads you can confidently run. Work through the process in order and the right system design becomes clear.
If you're ready to start planning your system, explore WattCycle's battery and inverter lineup and reach out to our team. We're here to help you match the right products to your farm's real needs.
