The $10,000Wh Question: Is the Official Expansion Battery Worth It?
If you own a Pecron F3000 power station, you already know the frustration: the moment you start running real loads like a refrigerator, a heater, or critical medical equipment, that 3,000Wh capacity disappears faster than you'd like. The manufacturer's official expansion battery seems like the obvious fix, until you see the price tag and the capacity ceiling that comes with it.

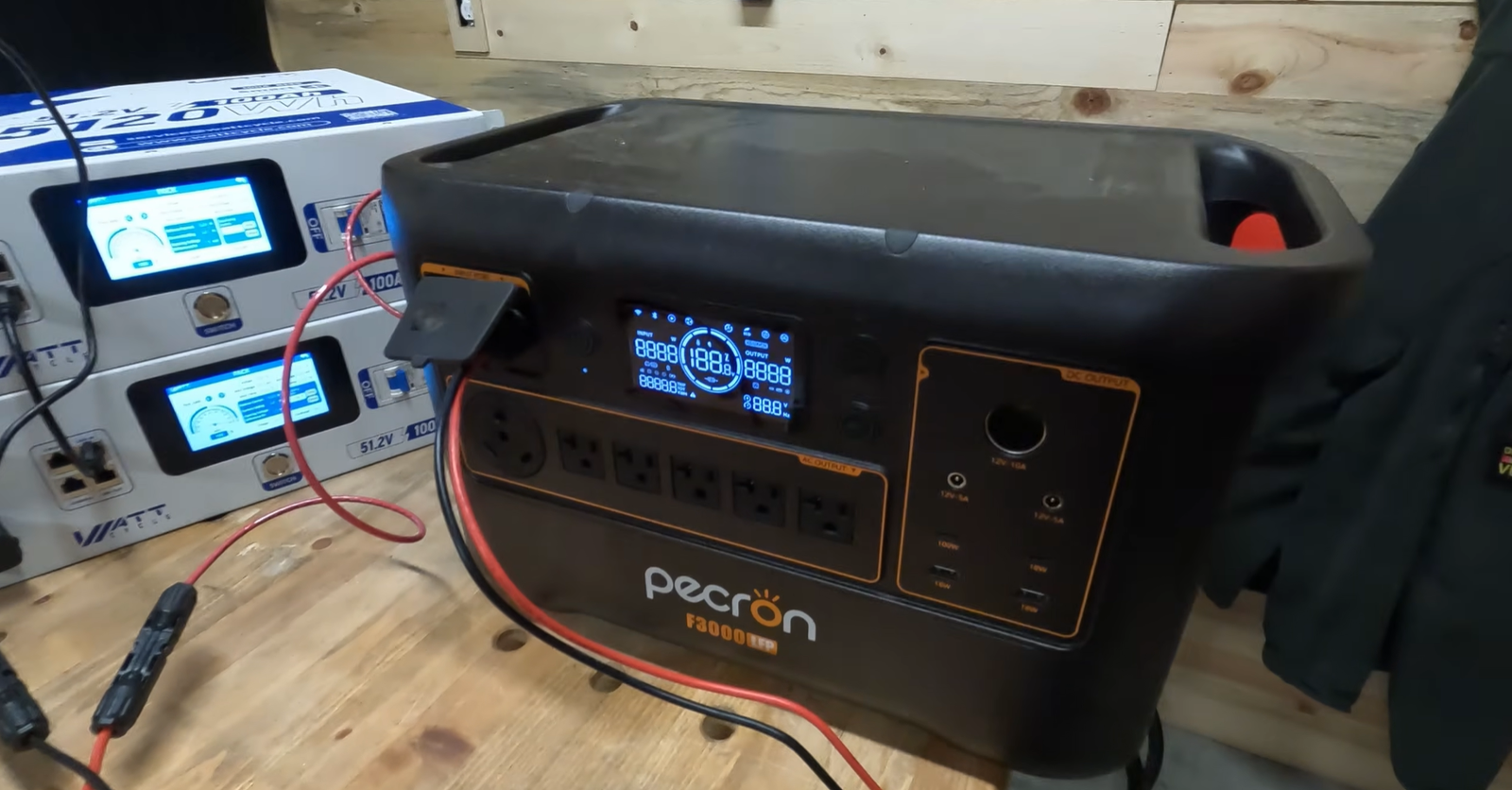

That's exactly the problem that DIY and off-grid creator Mr. Jarhead set out to solve. Known for his no-nonsense, hands-on approach to real-world power system testing, Mr. Jarhead pushed the Pecron F3000 well beyond its factory limits without touching the firmware or spending a fortune on proprietary expansion battery. His method? Repurposing the station's built-in solar energy input port as a direct DC input channel for two WattCycle 51.2V 100Ah LiFePO4 server rack batteries, adding over 10,000Wh of usable capacity in the process.
The result is a system that scales from 3kWh to approximately 13kWh of total available energy: enough to power a 500W load for more than 20 continuous hours during a grid outage.
Watch the full video from Mr. Jarhead below, then keep reading for a technical breakdown, real test data, safety requirements, and everything you need to know before replicating this build.
In the sections below, we break down exactly how this MPPT charging controller trick works, what hardware you'll need, the real-world test numbers, and the safety practices that make this build reliable rather than reckless.
If you are interested in DIY battery expansion, you may also want to read our related article: "How to Expand Your Power Station with Cheaper LiFePO4 Batteries?" It covers the broader principles behind third-party battery expansion across different power station brands, making it a natural next step whether you own a Pecron or something else brand power station.
How It Actually Works: The MPPT Charging Controller Is Not Just for Solar
Most portable power station owners think of the solar energy input port as a single-purpose inlet, plug in your panels, charge your station, done. But that assumption leaves a significant capability on the table. Understanding what an MPPT charging controller actually does at a fundamental level is what makes this entire expansion method possible.
MPPT stands for Maximum Power Point Tracking. The controller's job is not to "read solar panels" specifically. Its actual function is to continuously sample the voltage and current characteristics of whatever DC source is connected to its input terminals, calculate the point at which that source delivers maximum power, and then regulate its own input current accordingly to extract energy as efficiently as possible. The controller doesn't know or care whether the source is a photovoltaic array, a wind turbine, or a battery bank. It simply sees a DC voltage within its acceptable input range and begins drawing current based on its internal algorithm.
This is the technical foundation that makes the expansion work.
Why 51.2V LiFePO4 Batteries Are a Perfect Match
The Pecron F3000 solar energy input port accepts a DC voltage range of approximately 35V to 150V. A fully charged 51.2V nominal LiFePO4 server rack battery sits at around 53.6V to 54.4V depending on state of charge. That voltage sits comfortably within the MPPT controller's detection window, which means the controller powers on, recognizes a valid DC source, and immediately begins its power point tracking routine.
A standard 48V server rack battery built on a 16-cell LiFePO4 architecture (which is what "51.2V nominal" refers to in practice) has a discharge curve that stays relatively flat between roughly 52V and 48V through most of its usable capacity. From the MPPT controller's perspective, this looks like a stable, low-impedance DC source with a slightly declining open-circuit voltage over time, which is actually easier to track than the variable output of a solar panel on a partly cloudy day.
How the Controller Regulates Current Draw
Once the MPPT charging controller identifies the connected LiFePO4 battery as a valid high-voltage source, it ramps up its input current draw toward its maximum programmed limit. In the case of the Pecron F3000, that limit is 25A. Mr. Jarhead's real-world testing confirmed the controller drew a sustained 24.9A from the parallel battery bank, translating to approximately 1,300W of continuous power throughput.
This is an important distinction worth emphasizing: the 25A ceiling is a firmware-level current cap, not a hardware bottleneck. The two parallel WattCycle 100Ah server rack batteries are theoretically capable of delivering well over 200A combined discharge current. The controller simply refuses to request more than 25A because its programming defines that as the maximum safe input for the solar energy input port. The batteries are never stressed. The limiting factor is entirely on the station's software side.
What This Means for Real-World Usability
At 1,300W of sustained input power, the MPPT controller is feeding the Pecron's inverter and internal systems simultaneously. In Mr. Jarhead's test, the station was powering a 1,150W ceramic heater (drawing approximately 850W at the AC output) while simultaneously pulling 24.9A from the external LiFePO4 battery bank through the solar input port. The system balanced both functions in real time without triggering any protection shutdowns.
This behavior confirms that the solar energy input port functions, in practice, as a fully operational DC power inlet capable of sustained high-current draw, provided the connected source maintains voltage within the acceptable window. The WattCycle 51.2V 100Ah server rack battery is purpose-built for exactly this kind of continuous, high-rate discharge application, with an onboard 100A BMS that monitors cell temperatures, prevents over-discharge, and maintains pack integrity throughout the process.
The elegance of this approach is that it requires zero firmware modification, zero hardware alteration to the power station, and zero proprietary communication protocol. It works because the MPPT charging controller is doing precisely what it was designed to do. The only difference is the energy source on the other end of the cable.
Safety First: What You Must Get Right Before Connecting Anything
High-voltage DC systems do not forgive mistakes the way AC household wiring sometimes can. At 53V and 25A continuous, a wiring error in this build can cause arc flash, cable fire, or permanent damage to your power station. Before you connect any parallel batteries to the Pecron F3000 solar energy input port, work through every item on this checklist without skipping steps.
Pre-Connection Safety Checklist
- Verify polarity on every cable and terminal before making any connection. Reverse polarity at 51.2V will instantly damage the MPPT charging controller and may trigger a thermal event inside the battery.
- Install a 30A DC-rated circuit breaker on the positive line between the battery bank and the solar energy input port. Mr. Jarhead used a DiHool 30A breaker specifically because it allows safe hot-switching, meaning you can open and close the circuit under load without the arc risk that comes from simply unplugging a live connector.
- Add a T-class fuse rated appropriately for your cable gauge on the positive main line as a secondary protection layer. A breaker and fuse serve different purposes: the breaker handles intentional disconnection, while the T-class fuse handles catastrophic fault current from a dead short. You need both.
- Use a minimum of 6AWG UL-rated copper cable with tinned terminals throughout the DC circuit. At 25A continuous, undersized cable will generate measurable heat, create voltage drop that reduces effective charging power, and can degrade insulation over time. Tinned terminals resist oxidation and maintain a low-resistance connection at the contact points.
- Test insulation resistance before first power-on. Use a basic insulation resistance tester to confirm there are no unintended current paths between your positive and negative conductors or between either conductor and any metal enclosure or chassis ground.
- Monitor your external LiFePO4 battery bank independently. The Pecron's internal BMS has no visibility into the state of charge, cell voltages, or temperature of the external pack. A Bluetooth-enabled BMS module, which WattCycle's server rack batteries support, allows you to monitor the pack in real time from your phone and catch any anomalies before they become problems.
Charging the Expanded System: Three Strategies That Work
Here is the trade-off you need to plan for before building this system. The Pecron F3000 internal charger, whether plugged into AC wall power or connected via the solar energy input port, only manages its own internal 3,000Wh pack. It has no electrical path to the external WattCycle server rack batteries. Those batteries require their own dedicated charging solution, managed entirely outside of the Pecron ecosystem.
You have three practical options:
- Dedicated AC Charger: A 56V/100A charger connected directly to the external battery bank will fully recharge a depleted 10,240Wh pack in approximately 10 to 12 hours from a wall outlet or generator. This is the most straightforward setup for home or basecamp use.
- Solar Direct Charging: Pair the external batteries with a separate MPPT charging controller and a solar array of at least 2,500W. This creates a fully independent charger and solar charging loop that replenishes the battery bank without drawing on the Pecron's internal systems at all. It is the most resilient long-term solution for off-grid installations.
- Generator Plus AC Charger: For emergency rapid recharge when grid power is unavailable, a generator paired with a high-output AC charger delivers the fastest recovery time and keeps the external pack ready for the next outage cycle.
Regardless of which strategy you choose, one habit makes a significant difference in real emergencies: pre-charge your battery bank fully before an anticipated outage window. When a storm is forecast or grid instability is expected, a fully charged external pack combined with the Pecron's internal 3kWh gives you the full 13kWh reserve from the first minute of an outage, rather than scrambling to charge reactively after the power is already gone.
Cost Comparison: DIY vs. Official Expansion
The cost argument for the DIY approach becomes clear when you compare the two options side by side. The official expansion battery is designed for convenience and plug-and-play simplicity, and there is genuine value in that for some users who are not good at DIY. However, once your capacity needs exceed what the proprietary module offers, the economics shift decisively toward an independent solution.
Two WattCycle 51.2V 100Ah server rack batteries deliver more than three times the added capacity at a fraction of the per-watt-hour cost. As a standard 48V server rack battery platform, the WattCycle units are not locked to any single power station ecosystem. You can redeploy them into a home battery backup system, a solar storage array, or a different power station entirely as your needs evolve. That modularity and long 6,000 cycles lifespan at 100% DOD (depth of discharge) , making the total cost of ownership argument even stronger when calculated over years of use rather than just the initial purchase price.
Ready to Build Your Own High-Capacity Backup System?
If this build has you thinking seriously about expanding your own power setup, the WattCycle 51.2V 100Ah LiFePO4 server rack battery is exactly what Mr. Jarhead used to make it work. Visit the WattCycle product page to explore full specifications, pricing, and compatibility details.
The goal is simple: more usable energy, less money spent, and a system you actually understand and control.
Frequently Asked Questions
1. Will this work with other brand portable power stations besides the Pecron F3000?
Sure. The key requirement is that the station's solar energy input port must accept a DC voltage range that includes 51.2V to 54.4V, which covers the operating voltage of a fully charged LiFePO4 server rack battery. Please read the following blog know more: "How to Expand Your Power Station with Cheaper LiFePO4 Batteries?"
2. Can I add more than 2 parallel batteries for even greater capacity?
Technically yes. Adding a third or fourth parallel battery increases your total energy reserve further. However, the MPPT charging controller will still cap input current at 25A regardless of how many parallel batteries are connected. More batteries means longer runtime, not faster charging. Ensure your breaker and fuse ratings and cable sizing are reviewed whenever you add units to the parallel bank.
3. Does this affect the Pecron F3000's warranty?
This use case falls outside Pecron's intended application for the solar energy input port. While no hardware modification is made to the station itself, using non-approved external batteries through that port will likely void the manufacturer's warranty. Proceed with that understanding and treat this as a personal off-grid project rather than a manufacturer-supported configuration.
4. What happens if the external battery fully discharges during use?
A quality LiFePO4 server rack battery like the WattCycle 51.2V 100Ah unit has an onboard BMS that automatically disconnects the pack before it reaches a damaging depth of discharge. When that cutoff triggers, the MPPT charging controller simply sees the input voltage drop below its detection threshold and stops drawing current. No damage occurs to the controller. This is one of the reasons a battery with a robust built-in BMS is non-negotiable for this application.
