12V Series Lithium Battery

$16599 $30999
Free Shipping, taxes and discounts calculated at checkout.
Version
Quantity

Description

  • Multiple Applications: Ideal for RVs, vans, campers, and also suitable for home storage, off-grid systems, golf carts, trolling motors, and more.

  • High Performance: This lithium battery offers a capacity of 100Ah with a standard voltage of 12.8V. Its 100% DOD (Depth of Discharge) guarantees a consistent and steady journey.
  • Built-in BMS Protection: Featuring an integrated 100A BMS protection system, the lithium battery automatically disconnects if the discharge current exceeds 300±50A, ensuring optimal safety.
  • Drop-in Replacement: Compactly designed at 10.2 x 6.6 x 8.2 inches (26 x 17 x 21 cm) and weighing nearly 2/3 lighter (23.0 lbs / 10.5 kg) than a lead-acid battery, this lithium battery fits seamlessly into a Group 24 battery box, maximizing energy density without requiring a larger box.
  • Low Temperature Protection: Engineered to withstand extreme temperatures, the lithium battery operates efficiently in conditions as low as -4℉ (-20℃) and as high as 158℉ (70℃), adapting seamlessly to various climates.

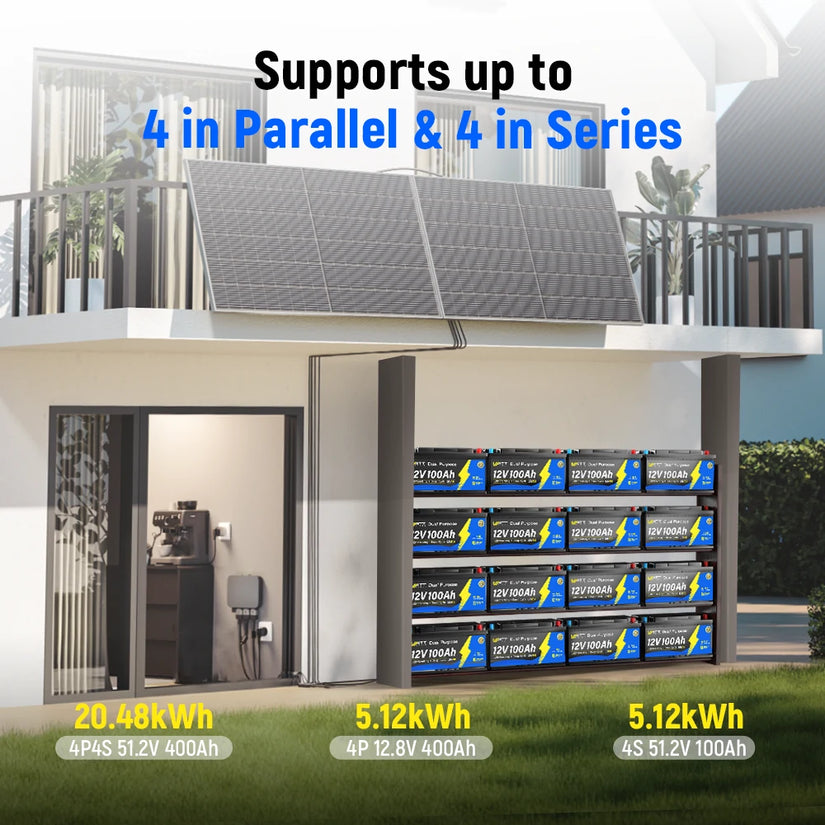

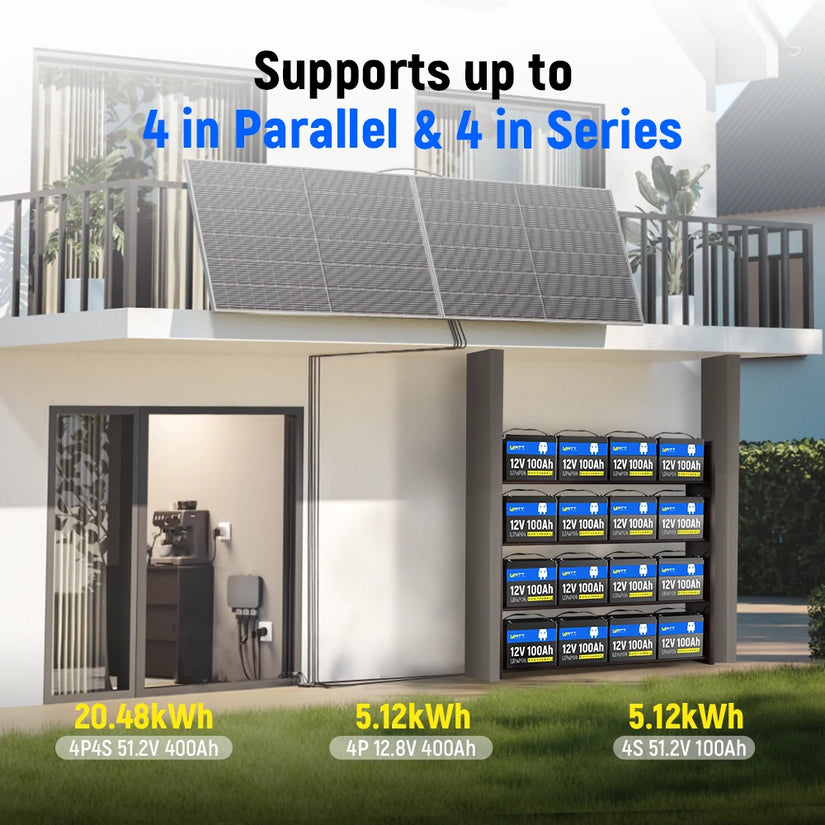

  • Series or Parallel Connection: Easily connect up to 4 batteries in series or 4 packs in parallel, achieving a remarkable capacity of up to 20.48kWh. Customize the connection to suit your needs.
  • Waterproof: With IP65-rated waterproof protection, this lithium battery ensures reliable performance in wet and challenging environments, making it ideal for outdoor and marine applications.
  • Automotive Grade A+ Cells Only: Supporting up to 5,000 cycles at 100% DOD, these cells come with multiple safety certifications and built-in overcharge, over-discharge, overcurrent, and short-circuit protection to ensure safety in various conditions.
  • 3 Charging Methods: Charges up to 5 times faster than a lead-acid battery. (WattCycle LiFePO4 battery charger, solar panel, or generator)
  • Registration for Extended Warranty: The battery comes with a default 5-year warranty, which can be extended to 7 years with registration on the official website.

Reviews (0)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Tech Specs

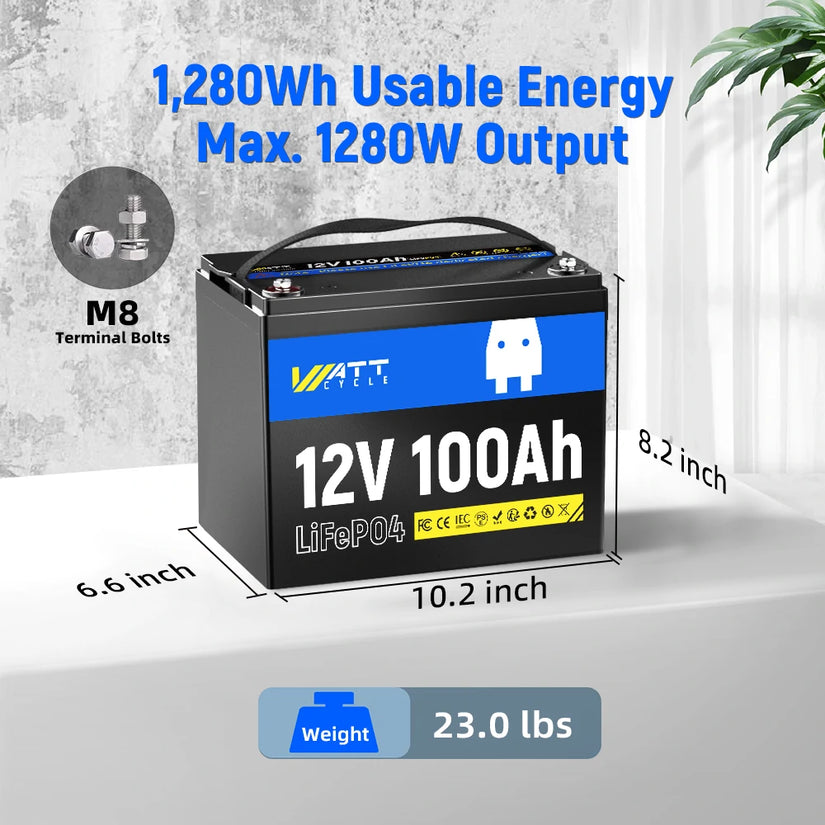

12V 100AH Group 24

Dimensions (Inches) 10.2 (L) x 6.6 (W) x 8.2 (H)
Weight 23.0lbs / 10.5kg
Nominal Voltage 12.8V
Nominal/Usable Capacity 100Ah
Energy 1280Wh
BMS 100A
Max. Continuous Output Power 1280W


12V 100AH MINI/12V 100AH MINI BT

Dimensions (Inches) 9.0 (L) x 5.4 (W) x 8.2 (H)
Weight 20.8 lbs / 9.5kg
Nominal Voltage 12.8V
Nominal/Usable Capacity 100Ah
Energy 1280Wh
BMS 100A
Max. Continuous Output Power 1280W


12V 100AH Group 31

Dimensions (Inches) 13.0 (L) x 6.9 (W) x 8.7 (H)
Weight 26.0lbs / 11.8kg
Nominal Voltage 12.8V
Nominal/Usable Capacity 100Ah
Energy 1280Wh
BMS 100A
Max. Continuous Output Power 1280W


12V 100AH TM BT

Dimensions (Inches) 10.2 (L) x 6.6 (W) x 8.2 (H)
Weight 23.15lbs / 10.5kg
Nominal Voltage 12.8V
Nominal/Usable Capacity 100Ah
Energy 1280Wh
BMS 120A
Max. Continuous Output Power 1280W

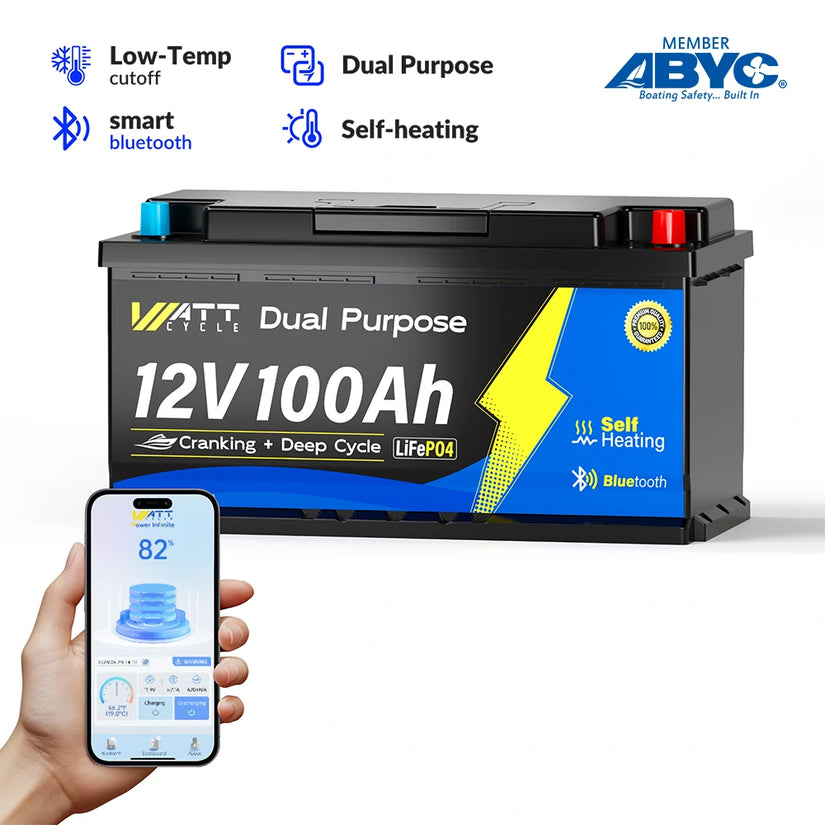

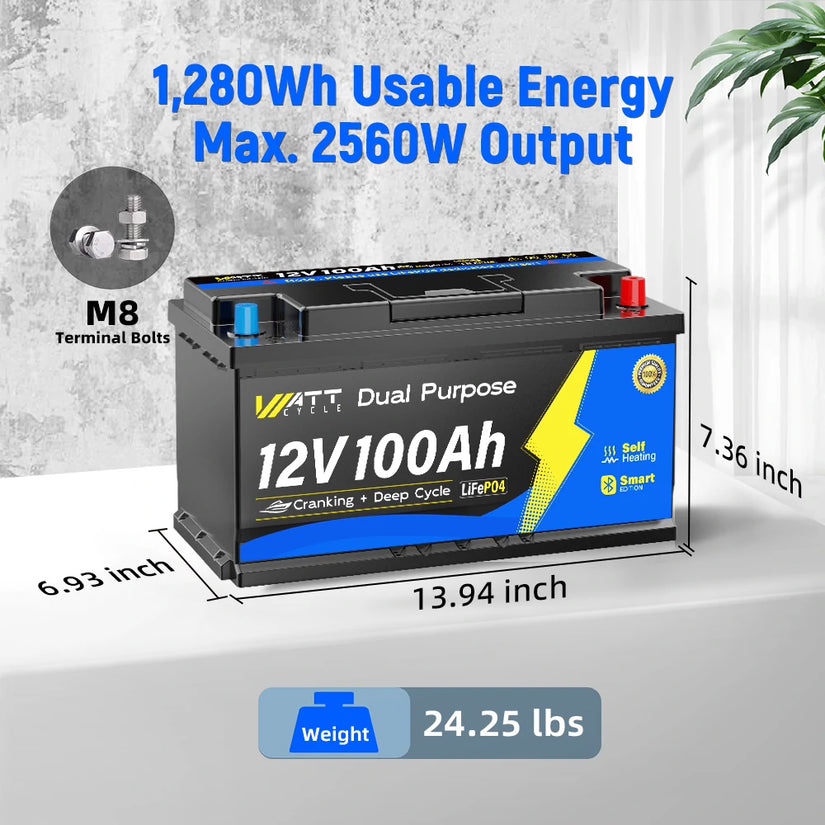

12V 200AH DU BT

Dimensions (Inches) 13.94 (L) x 6.93 (W) x 7.36 (H)
Weight 24.25lbs /11kg
Nominal Voltage 12.8V
Nominal/Usable Cpacity 100Ah
Energy 128Wh
BMS 200A
Max. Continuous Output Power 2560W



12V 280AH MINI BT

Cell EVE LF280K-280Ah Grade A+ LiFePO4 Cells
Dimensions (Inches) 15.12 (L) x 7.64 (W) x 9.76 (H)
Weight 57.32lbs / 26.0kg
Nominal Voltage 12.8V
Tested Cpacity 310Ah
Energy 3584Wh
BMS 200A
Max. Continuous Output Power 2560W
Over Current Protection 210±10A (1s)

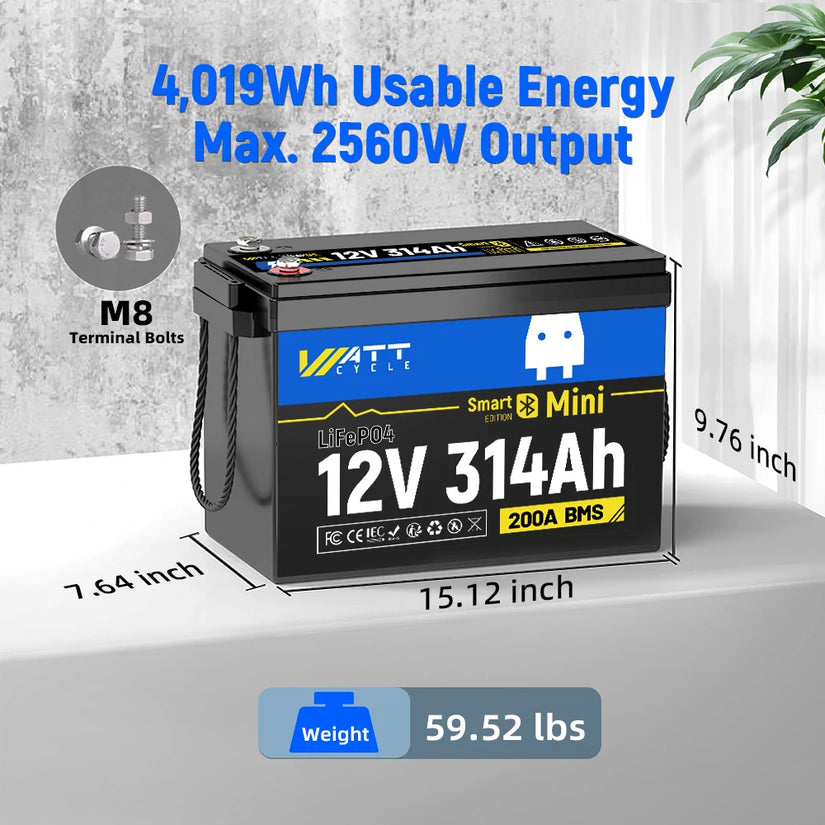

12V 314AH MINI BT

Dimensions (Inches) 15.12 (L) x 7.64 (W) x 9.76 (H)
Weight 59.52lbs / 27kg
Nominal Voltage 12.8V
Tested Cpacity 314Ah
Energy 4019Wh
BMS 200A
Max. Continuous Output Power 2560W

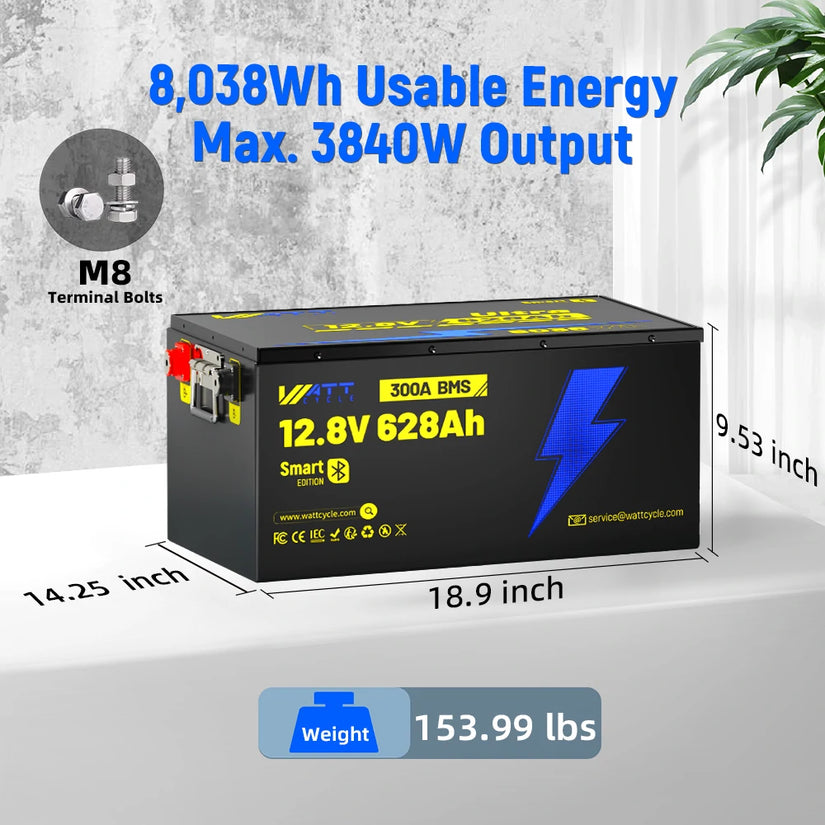

12V 628AH ULTRA BT

Dimensions (Inches) 18.9 (L) X 14.25 (W) X 9.53 (H) inch
Weight 153.99 lbs / 69.85 kg
Nominal Voltage 12.8V
Tested Cpacity 628Ah
Energy 8038Wh
BMS 300A
Max. Continuous Output Power 3840W
