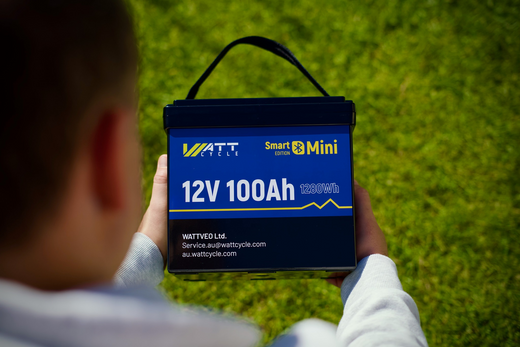

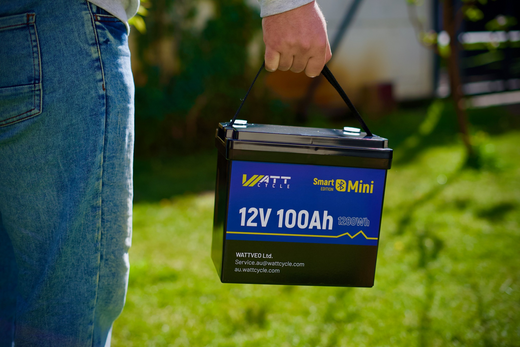

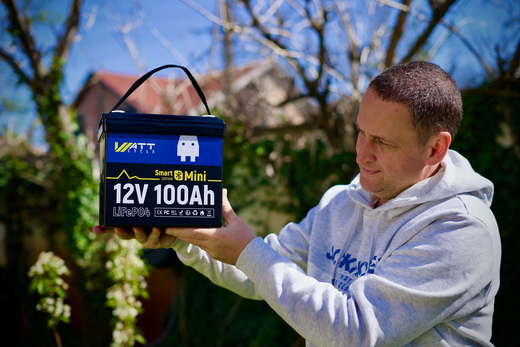

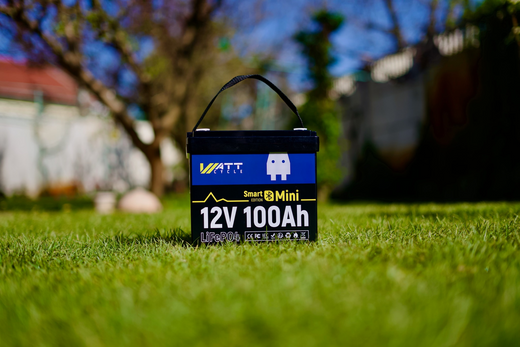

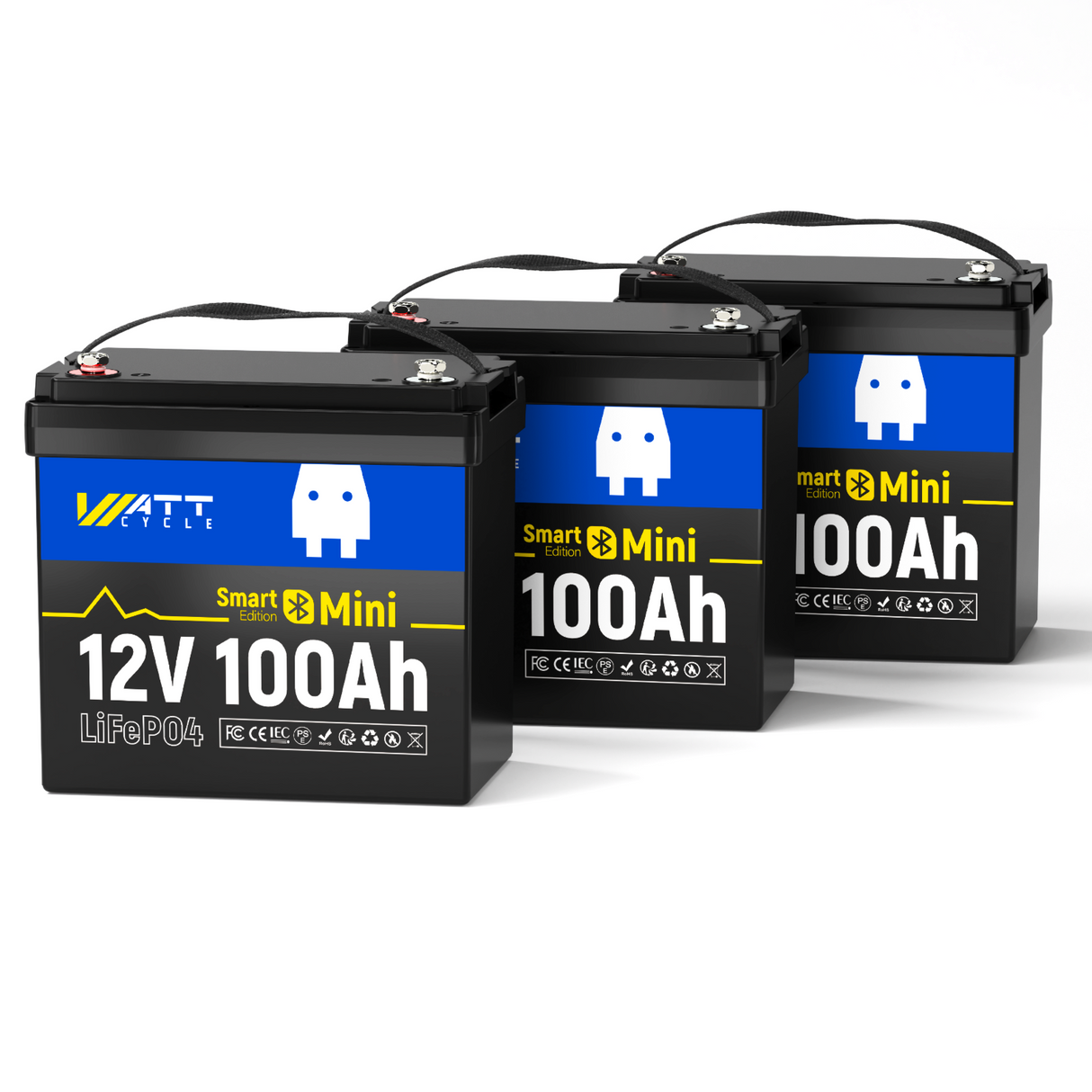

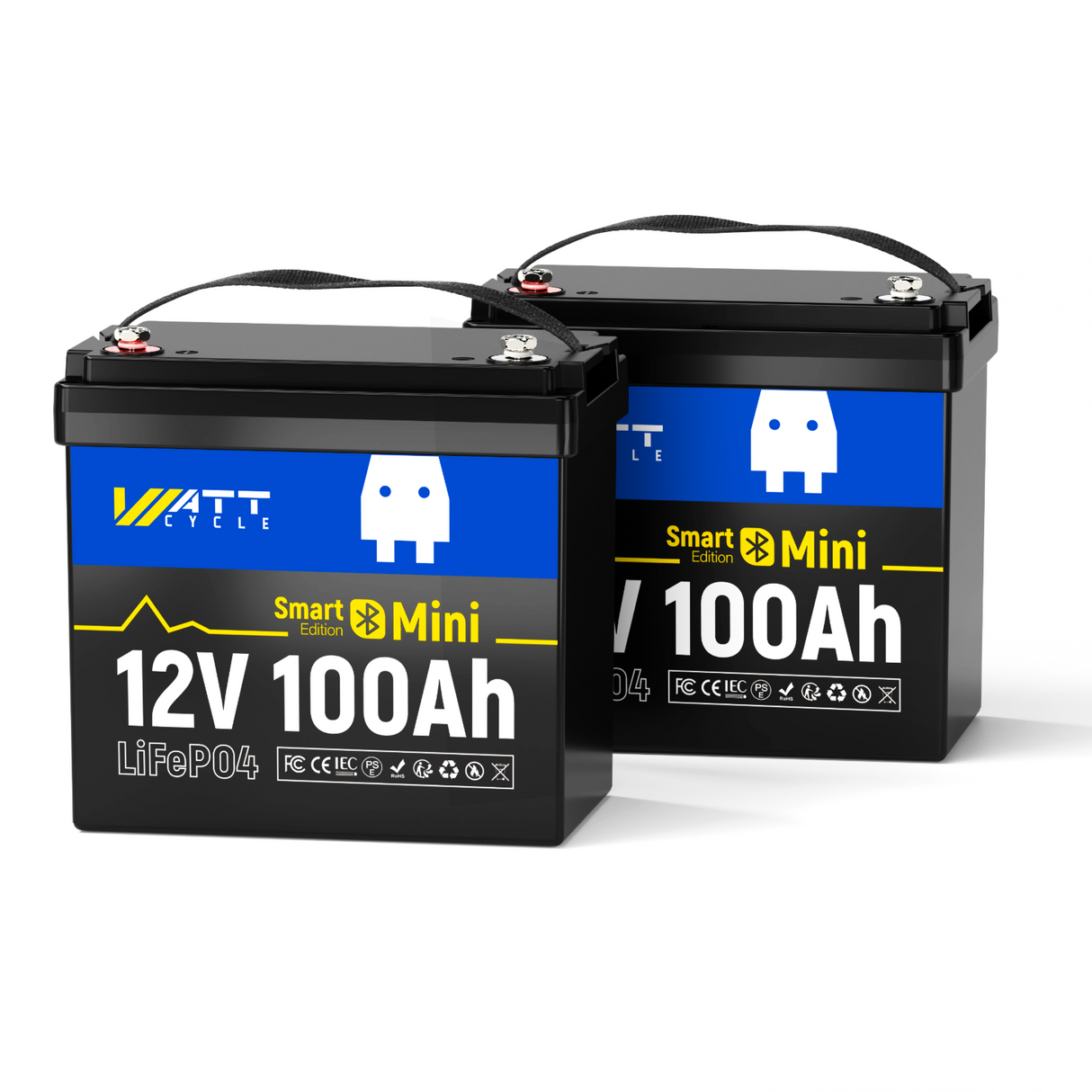

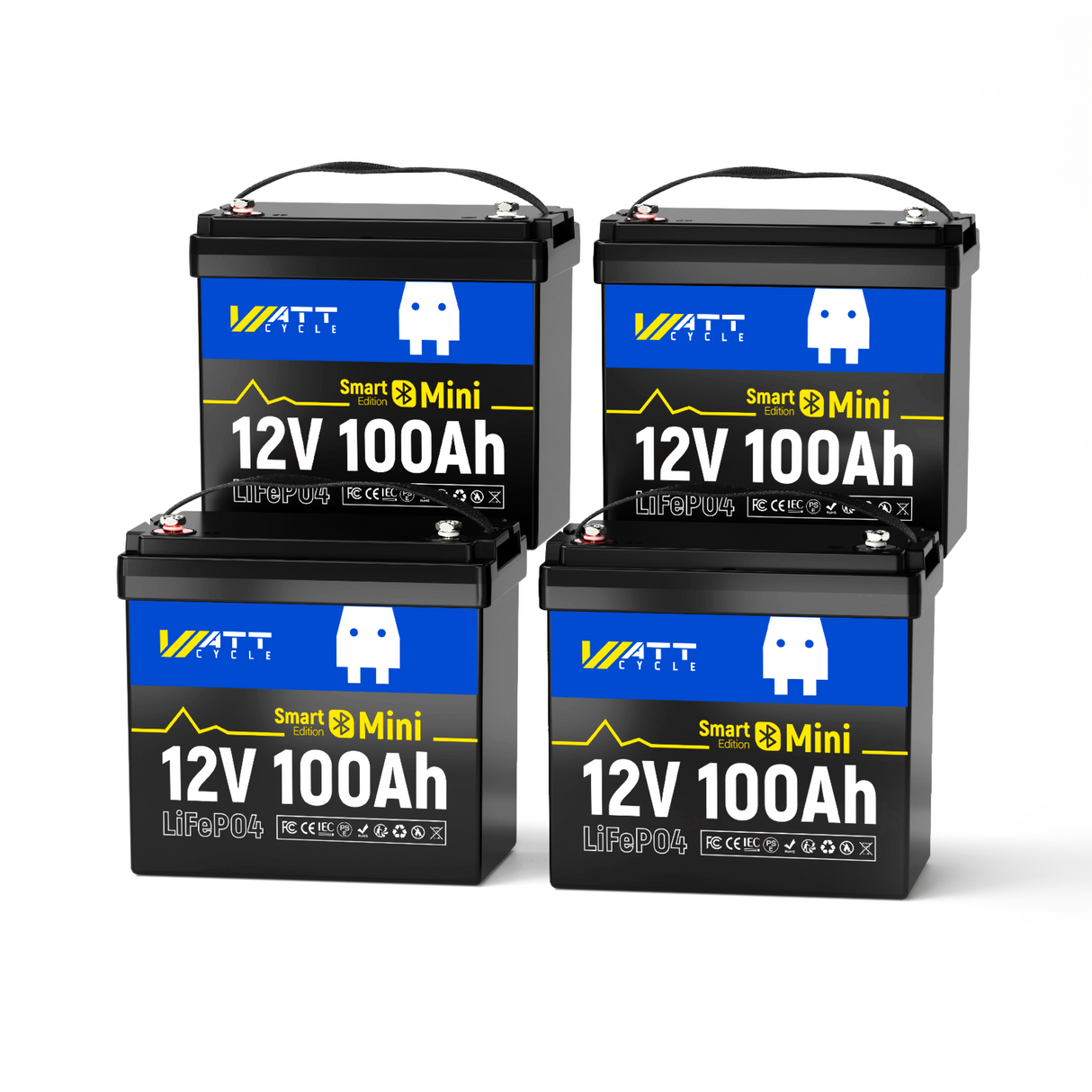

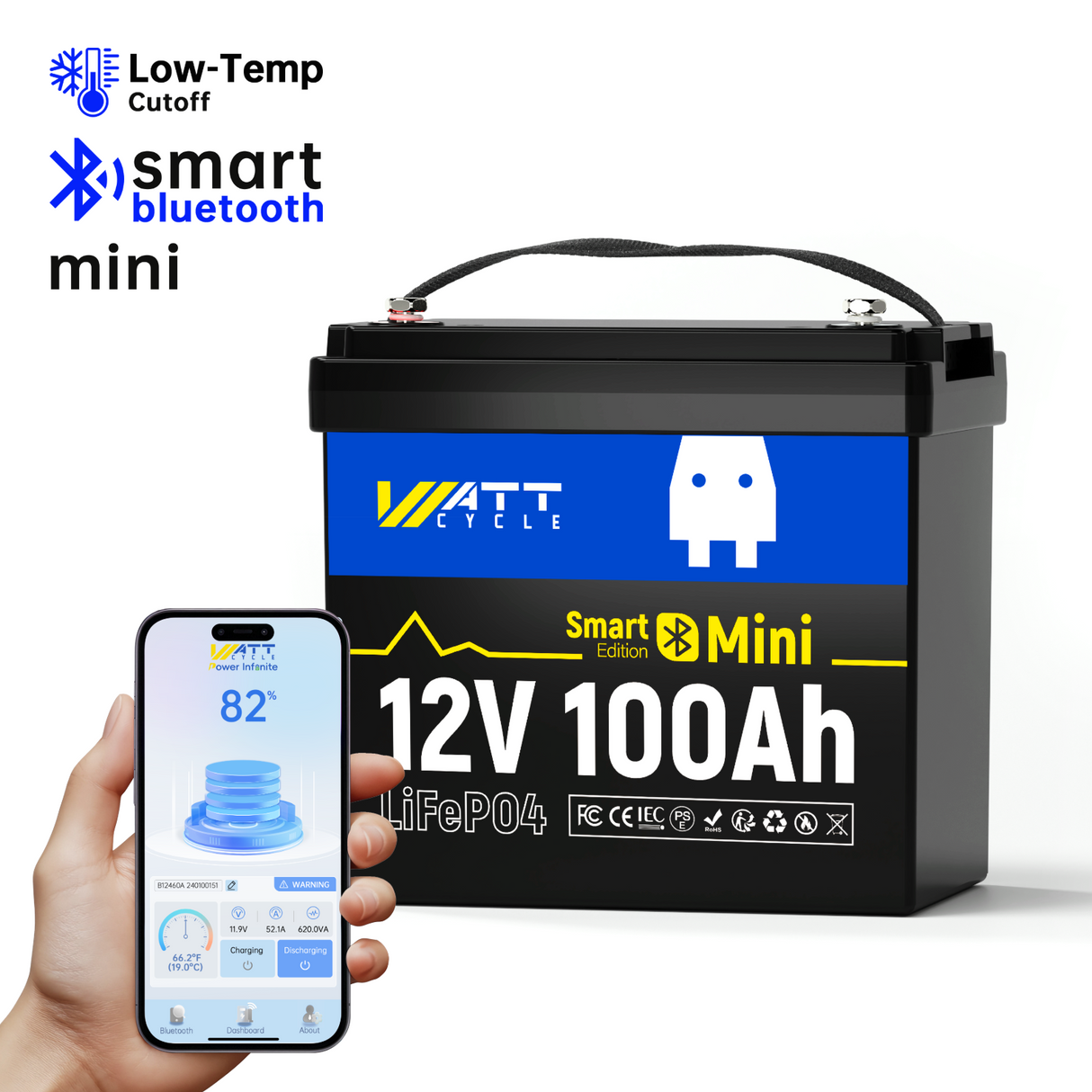

WattCycle 12V 100Ah Mini Bluetooth LiFePO₄ Battery Group 22NF Lightweight Compact Power

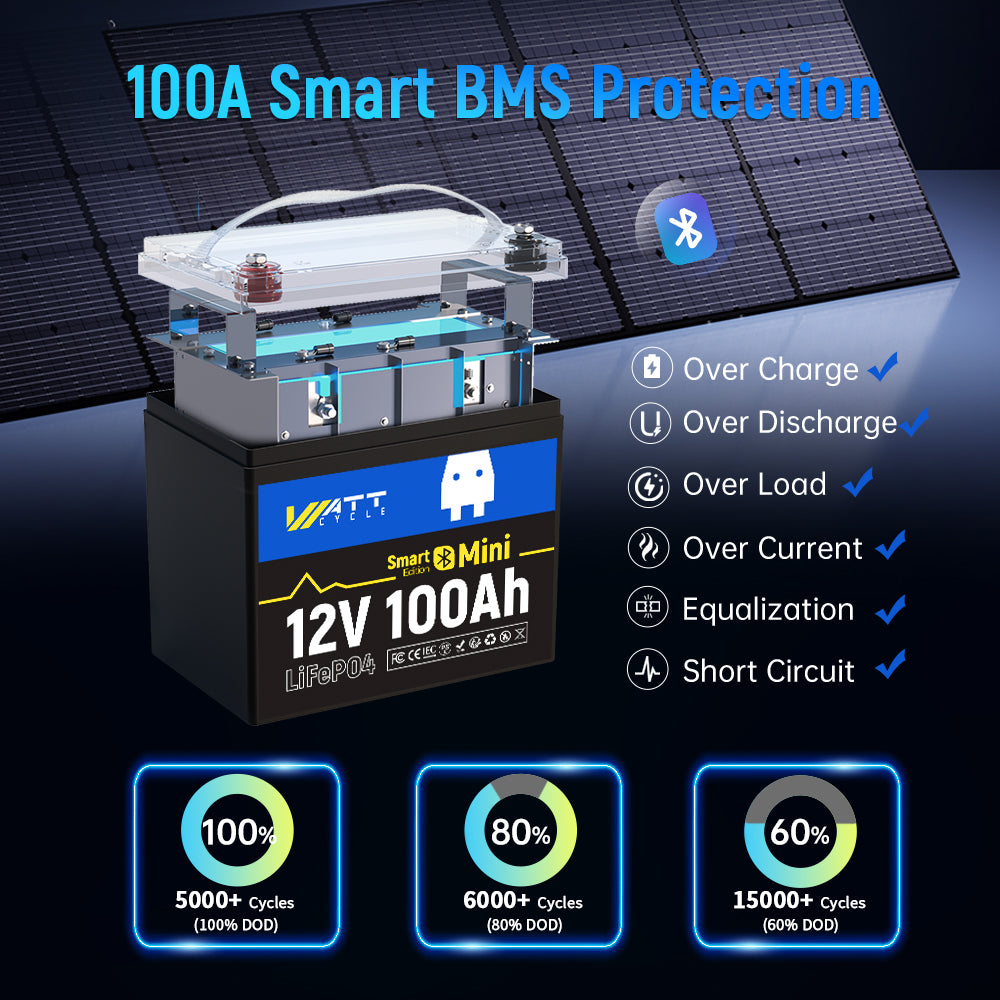

Over-charge Voltage Cut-off (>15V):
If the voltage of a single cell exceeds the specified threshold during charging, the BMS will stop charging.

Over-discharge Voltage Cut-off (<8.8V):
If a single cell falls below the specified threshold, when the battery voltage drops below 8.8V, the BMS will prevent further discharge. The battery will automatically reconnect when the voltage recovers to 10.8V.

High Temperature Charging (>158°F/70°C) and Discharging (>167°F/75°C):
If the internal temperature of the battery reaches 158°F (70°C), the BMS will not allow charging.
If the internal temperature of the battery reaches 167°F (75°C), the BMS will not allow discharging.

Low Temperature Charging (<32°F/0°C) and Discharging (<-4°F/-20°C):
The BMS will not allow charging below 32°F (0°C), but will continue discharging down to -4°F (-20°C).

Note: The operating temperature range for WattCycle 12V series products is -4°F (-20°C) to 140°F (65°C).

If you don't have a battery monitor, you can use a multimeter to monitor the voltage.

This is likely due to the overcurrent or short circuit protection being triggered. Please disconnect the battery cables from the load and test the battery voltage.

- If the voltage is above 10.8V, reconnect the battery cables.
- If the voltage is below 10.8V, please contact our technical team at service@wattcycle.com.

We offer free warranty service for up to 5 years.
Note: After purchasing the battery, please register for warranty on our official website www.wattcycle.com immediately.
Failure to register within one month will be considered as waiver of warranty service.
For more information, you can click here.

Battery capacity can be roughly estimated by the following voltage method.

Test steps:

1. Disconnect the charger or load.
2. Let it sit for 15 minutes.
3. Test the open circuit voltage.

It adopts a sealed packaging design and waterproof casing, and the sealed positive and negative electrodes can achieve IP67 protection.
This allows you to use it in humid environments.
In order to give the battery a better service life, we recommend that you use it in a dry, ventilated and cool environment.

Lithium batteries are generally not fireproof. Then, WattCycle takes a series of safety measures during design and use to prevent fire or explosion. These measures include using fireproof materials to construct battery cases (non-flammable ABS plastic), using battery management systems to monitor battery status, and using fuses and other measures to prevent overcharge or over discharge.

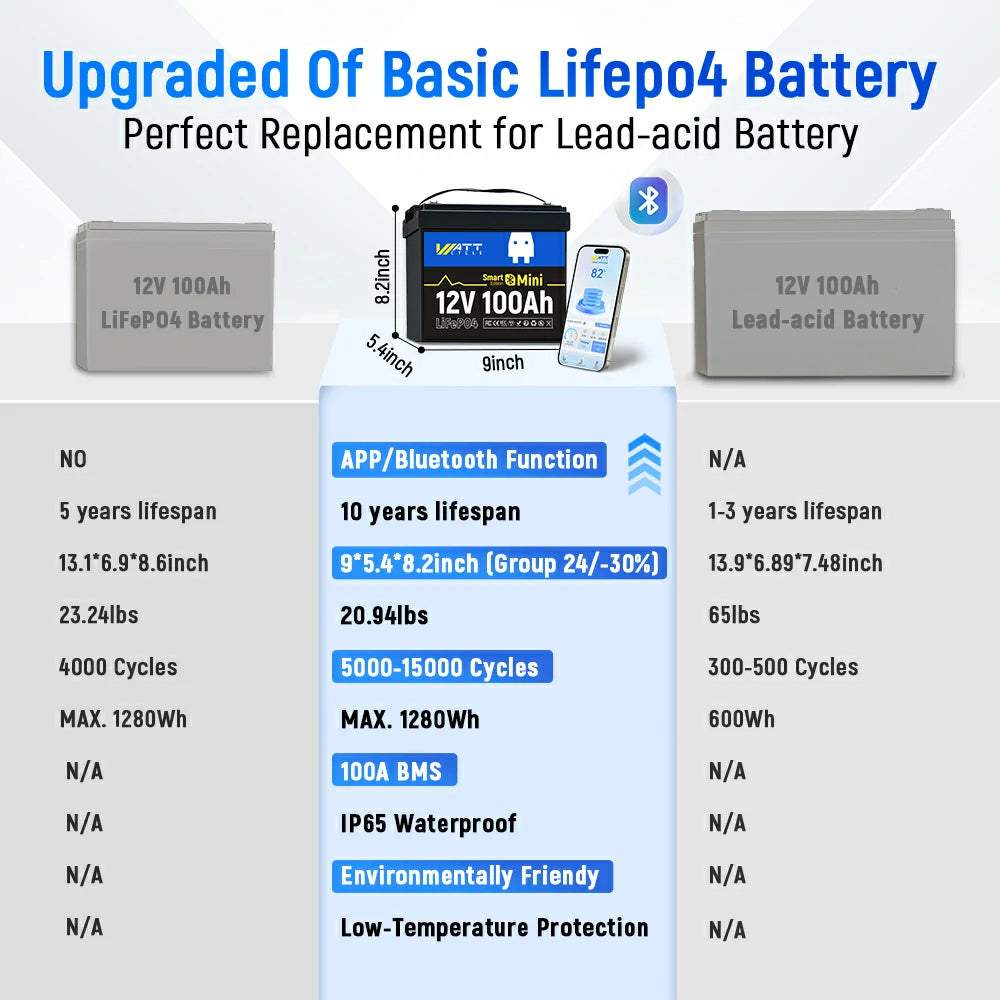

WattCycle 12V100Ah MINI is slightly smaller than WattCycle 12V100Ah, but the performance of the two is exactly the same.

Yes!Dimensions of a G24 battery box are approximately 10.5 inches long (L), 6.19 inches wide (W), and 8.88 inches tall (H).And the size of a WattCycle 12V 100Ah MINI LiFePO4 Battery is about 9.01″ (L) x 5.14″ (W) x 8.18″ (H).It is completely possible to use the G24 battery box to install the WattCycle 12V 100Ah MINI LiFePO4 Battery.e to help your customers.

Yes! It can be used for RV backup power. It has high energy density and long cycle life, providing long-lasting power support and suitable for various power needs of RVs, such as lighting, electrical equipment and other electronic equipment. Lithium batteries are lighter, charge faster, and have a longer life than traditional lead-acid batteries, making them ideal for RV backup power.
