48V 200Ah LiFePO4 Battery Set
- Compact: 19.0 x 6.6x 9.4 Inches | 45.20 lbs
- Safe: Low-temperature cut-off protection
- Premium: EV grade A+ LiFePO4 cells
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 200A BMS | 2560W | 2560Wh
- Scalable: Expandable max 4S4P, up to 40.96kWh
- Waterproof: IP65
- Certification: MSDS/UN38.3/FCC/CE/ROHS/UL
48V 200Ah LiFePO4 Battery Set is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
User Manual
User Manual
Shipping Service
Shipping Service
Destinations:
- We only ship orders toContinental
- Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico.
Shipping Fee:
- FREE shipping on all orders
- Shipping method: UPS Ground
Shipping time:
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 business days
- Shipping time: 2-5 business days
- The shipping will delay for some objective or uncontrolled reasons. We will notice our customer ahead for delays.
Tracking Your Order:
- Once your order ships, you will receive a confirmation email with a tracking number. You can use this tracking number to track the progress of your shipment on the carrier's website.
Warranty Policy
Warranty Policy
WattCycle Warranty Policy
Thank you for choosing WattCycle. This warranty policy applies to all products purchased through official WattCycle channels and authorized distributors. Please read this policy carefully before installation and use.
I. Warranty Commitment
WattCycle warrants to the original consumer that under normal use conditions, products shall be free from defects in material and workmanship from the date of original purchase.
1. Warranty Period
|
Product Category |
Specific Model/Series |
Base Warranty |
Extended Warranty (with Registration) |
|
LiFePO4 Batteries |
All new battery models |
5 years |
2 years (7 years total) |
|
Like-New Products |
All like-new models |
1 year |
— |
|
Battery Cells |
All models |
No warranty |
— |
|
Accessories |
Chargers, inverters, controllers, wiring cables, etc. |
1 year |
— |
Note: Extended warranty must be activated through product registration on the official WattCycle website within 3 months of purchase.
2. Warranty Period Calculation
- The warranty period begins from the original consumer’s purchase date.
- Valid proof of purchase (order screenshot, invoice, etc.) is required to establish the purchase date.
- Repaired or replaced products do not extend the original warranty period, which remains based on the original purchase date.
II. Warranty Claim Process and Fees
1. Claim Process
- Step 1: Contact WattCycle Customer Service (service@wattcycle.com), describe the issue, and provide proof of purchase.
- Step 2: Our technical team will contact you within 24-48 hours to assist with troubleshooting.
- Step 3: Once the issue is confirmed as a quality defect, customer service will provide a Return Merchandise Authorization (RMA) number and return instructions.
2. Fee Responsibility Rules
|
Scenario |
Resolution |
Shipping Responsibility |
Notes |
|
Quality issue (within 6 months) |
Free replacement/refund |
WattCycle covers shipping costs |
Requires quality defect confirmation, valid proof of purchase, within warranty period. |
|
Quality issue (after 6 months, within warranty) |
Free replacement |
WattCycle covers shipping costs |
Requires quality defect confirmation, valid proof of purchase, within warranty period. |
|
Personal reason (return within 30 days) |
Return for refund |
Customer bears return shipping |
Original packaging intact, product in good condition. Warehouse restocking fees will be charged. |
|
Personal reason (return after 30 days) |
Return for refund |
Customer bears two-way shipping |
Warehouse restocking fees and depreciation fees will be charged. |
|
Wrong item shipped / Missing item / Transit damage |
Free replacement |
WattCycle covers shipping costs |
/ |
|
Order cancellation (before shipment) |
Refund |
No shipping charges incurred |
/ |
|
Over 6 months (non-quality issues) |
Returns not accepted |
/ |
/ |
3. Refund Policy
- Refunds are applicable only for quality issues reported within 6 months of purchase. Quality issues identified after 6 months will be resolved through product replacement.
- The refund amount will be calculated after final verification, deducting any applicable fees, and returned via the original payment method.
- Refunds will be processed via the original payment method within 3-5 business days after receipt and inspection of the returned product.
III. Warranty Exclusions (Limitations of Liability)
This warranty does not apply to damage or malfunction caused by:
1. Accidents and Force Majeure
- Accidents, abuse, misuse, or negligence
- Natural disasters such as fire, flood, lightning, earthquakes, extreme temperatures
2. Improper Use and Installation
- Failure to follow installation, operation, or maintenance instructions in the product manual
- Voltage/current mismatch, reverse polarity connection
- Use of incorrect fuses or undersized cables
- Series or parallel connections exceeding permissible limits (e.g., systems exceeding 48V)
- Mixing with other battery brands
3. Unauthorized Modifications or Repairs
- Any disassembly, modification, or repair by unauthorized personnel
- Altered, damaged, or removed serial numbers
4. Normal Wear and Tear and Commercial Use
- Cosmetic wear or scratches from normal use.
- Natural capacity degradation over time (normal aging).
- Use exceeding the product’s designed cycle life or technical specifications.
5. Long-Term Inactivity
- Damage resulting from failure to perform periodic charging maintenance for over one (1) year.
6. Other
- Inability to provide valid proof of purchase.
- Products that have been fully refunded through other means.
IV. Final Provisions
- WattCycle reserves the right of final interpretation of this warranty policy.
- This policy may be revised periodically. All changes will be published on our official website.
Contact Information:
📧 Official Customer Service Email: service@wattcycle.com
🌐 Official Website: www.wattcycle.com
Youtube Reviews
Youtube Reviews
Sign up to be the first to know when it's here
Power Your Adventure Longer!
Stable & Reliable
Description
Description
-
High Capacity & Lightweight: WattCycle 12V 200Ah lithium battery with 2560W continuous output power and 2560Wh energy is only 20.5kg as well as its energy density is 124.88Wh/kg, while 2 pcs 12V 100Ah lead-acid batteries are 13.70Wh/kg.
-
EV Grade A+ LiFePO4 Cells: WattCycle 12V 200Ah deep cycle LiFePO4 battery is equipped with EV grade A+ battery cells, providing more than 5000+ cycle life, and 10 years lifespan. Compared with lead-acid batteries, WattCycle LiFePO4 batteries are non-toxic and eco-friendly energy, offering higher chemical stability, guaranteeing quality and safety.
-
Comprehensive BMS Protection: WattCycle 12V 200Ah deep cycle LiFePO4 battery is equipped with 200A BMS, which can protect against overvoltage, overcurrent, over-discharge, short-circuit, overcharge, and extreme temperature (high and low temperature). Also, it can cell balancing.
-
Up to 40.96 kWh Energy Solution: WattCycle 12V deep cycle LiFePO4 batteries support max. 4 in series and max. 4 in parallel. 200Ah lithium batteries can build a 48V 800Ah battery system, providing continuous charge- and discharge current 800A, massive 40.96kWh energy and 40.96kW output power.
-
Wide applications: All WattCycle batteries are deep cycle LiFePO4 batteries, they are the best choice for your RVs, home storage, and even your marine applications.
Reviews (1101)
Reviews (1101)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

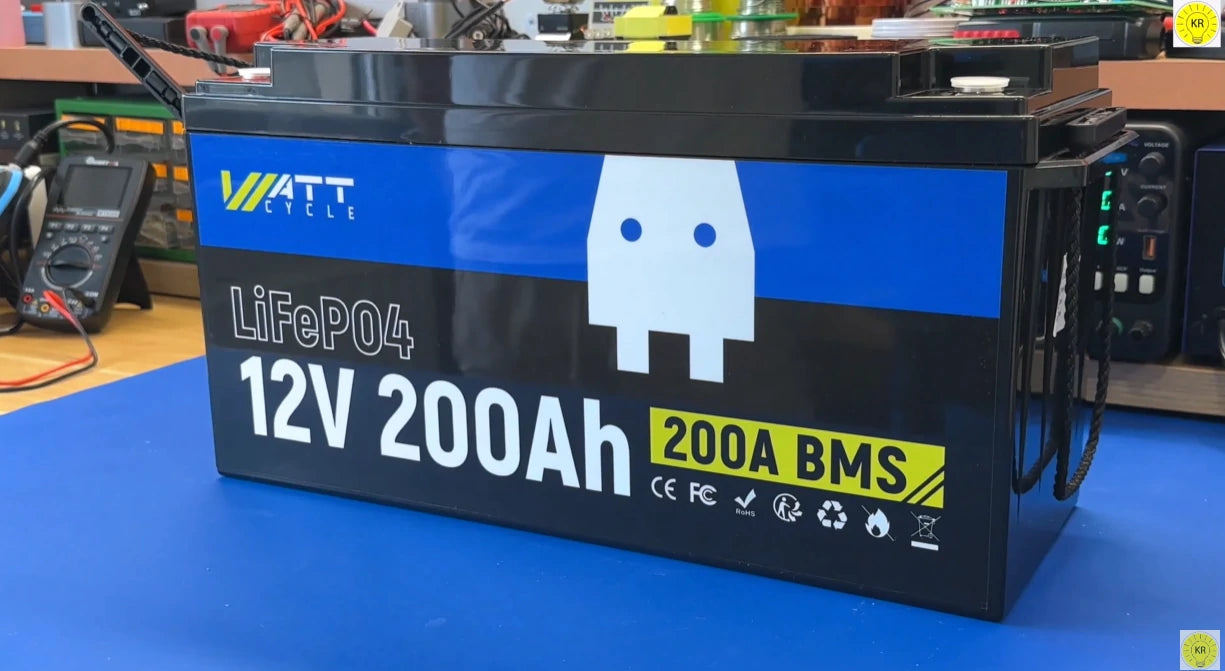

Featured Youtube Review
The Ultimate Power Solution: One Battery, Endless Possibilities
Only Grade A Cells, Powerful Core
- Brand New EVE Grade A+ Cells
- Superior Quality and Reliability
- Longer Lifespan
- High Energy Density
- Safety and Stability
- Consistent Performance
- High Performance in Extreme Conditions
- Environmental Friendliness

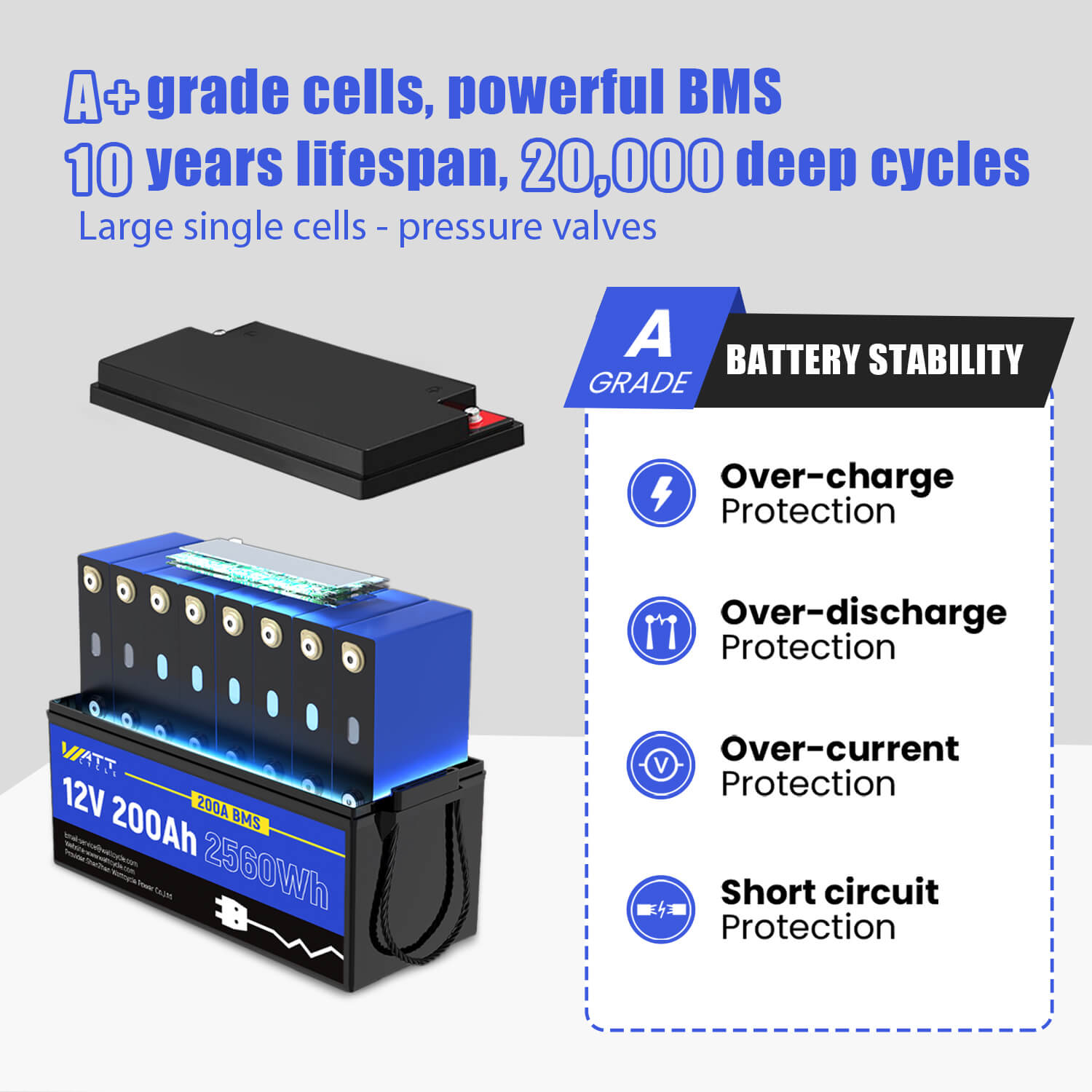

Primary Safety: EV-Grade BMS Protection
- Max. Cont. Discharge Current: 200A
- Max. Cont. Charge Current: 200A
- Max. Discharge Current (5s)：300±50A

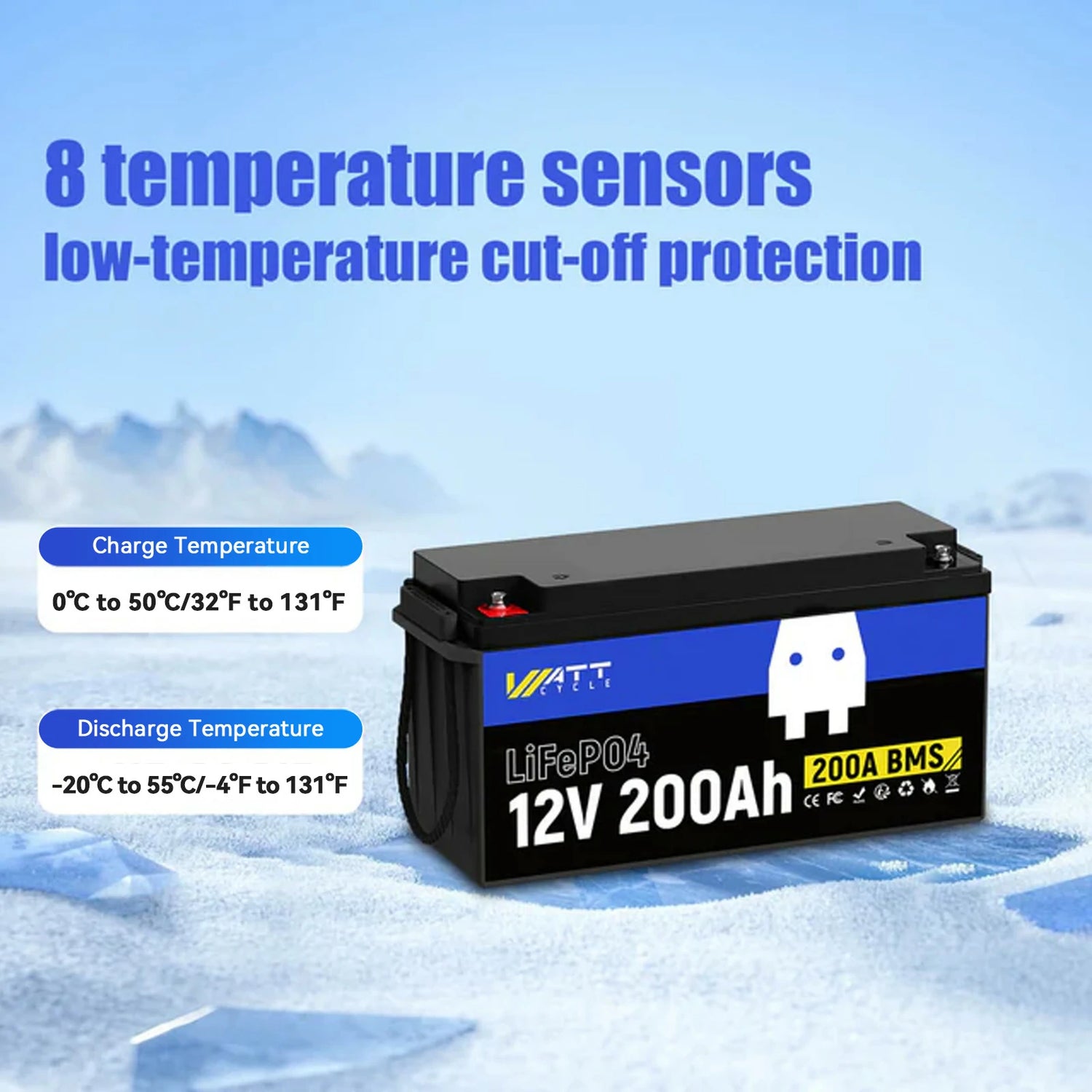

Brave the Cold Winter Journeys
Automatic Temperature Monitoring / Low-Temperature Protection / User-Friendliness / Wide Applicability
12V 200Ah in RV System
Connect in Series or Parallel
You can wire 12V 200Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.
Your One-Stop Juice Station
Choose the Charging Method That Suits You
-
14.6 V 20A Charger
1) 3 Charging Phase: I1, I2, I3
2) Recommended Charging Rate: 0.1C~5C
3) Full Charging: 5 hours (0.2C) -
Solar Energy Plate
1) Recommended Charging Current: 0.1C~0.5C
2) Recommended Charging Voltage: 14.4~14.6V -
Power Generator
1) Charging: DC to DC
2) Recommended Charger: 20A DC-DC Charger
3）Full Charging: 5 hours
Precautions for Usage
Tips for a better using experience and batteries' health.
Upgrade to the 12V 200Ah Battery
Your Trusted Solution for Transitioning from Lead-Acid to Advanced Lithium Technology
Tech Specs
GENERAL
| Dimensions (Inches) | 19.0 (L) x 6.6 (W) x 9.4 (H) |
| Weight | 45.20lbs / 20.5kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
BATTERY
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 200Ah |
| Energy | 2560Wh |
| Cycle Life | 5,000 cycles @100% DOD, 6,000 cycles @80% DOD, 15,000 cycles @60% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Certifications | SDS/UN38.3/FCC/CE/ROHS/UL |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 200A |
| Max. Continuous Output Power | 2560W |
| Max. Continuous Charge Current | 200A |
| Max. Continuous Discharge Current | 200A |
| Max. Discharge Current | 300±50A (≤5s) |
CHARGE
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 40A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 131℉ |
| Discharge Temperature： | -20℃ to 55℃ / -4℉ to 131℉ |
| Storage Temperature | 0℃ to 55℃ / 32℉ to 131℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
