Wattcycle 12V 100Ah Mini Bluetooth LiFePO₄ Battery Group 22NF Lightweight Compact Power
Wattcycle 12V 100Ah Mini Bluetooth LiFePO₄ Battery Group 22NF Lightweight Compact Power - 1 Pack is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
User Manual
User Manual
Shipping Service
Shipping Service
Destinations:
- We only ship orders to Continental
- Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico.
Shipping Fee:
- FREE shipping on all orders
- Shipping method: UPS Ground
Shipping time:
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 business days
- Shipping time: 2-5 business days
- The shipping will delay for some objective or uncontrolled reasons. We will notice our customer ahead for delays.
Tracking Your Order:
- Once your order ships, you will receive a confirmation email with a tracking number. You can use this tracking number to track the progress of your shipment on the carrier's website.
Warranty Policy
Warranty Policy
WattCycle Warranty Policy
Thank you for choosing WattCycle. This warranty policy applies to all products purchased through official WattCycle channels and authorized distributors. Please read this policy carefully before installation and use.
I. Warranty Commitment
WattCycle warrants to the original consumer that under normal use conditions, products shall be free from defects in material and workmanship from the date of original purchase.
1. Warranty Period
|
Product Category |
Specific Model/Series |
Base Warranty |
Extended Warranty (with Registration) |
|
LiFePO4 Batteries |
All new battery models |
5 years |
2 years (7 years total) |
|
Like-New Products |
All like-new models |
1 year |
— |
|
Battery Cells |
All models |
No warranty |
— |
|
Accessories |
Chargers, inverters, controllers, wiring cables, etc. |
1 year |
— |
Note: Extended warranty must be activated through product registration on the official WattCycle website within 3 months of purchase.
2. Warranty Period Calculation
- The warranty period begins from the original consumer’s purchase date.
- Valid proof of purchase (order screenshot, invoice, etc.) is required to establish the purchase date.
- Repaired or replaced products do not extend the original warranty period, which remains based on the original purchase date.
II. Warranty Claim Process and Fees
1. Claim Process
- Step 1: Contact WattCycle Customer Service (service@wattcycle.com), describe the issue, and provide proof of purchase.
- Step 2: Our technical team will contact you within 24-48 hours to assist with troubleshooting.
- Step 3: Once the issue is confirmed as a quality defect, customer service will provide a Return Merchandise Authorization (RMA) number and return instructions.
2. Fee Responsibility Rules
|
Scenario |
Resolution |
Shipping Responsibility |
Notes |
|
Quality issue (within 6 months) |
Free replacement/refund |
WattCycle covers shipping costs |
Requires quality defect confirmation, valid proof of purchase, within warranty period. |
|
Quality issue (after 6 months, within warranty) |
Free replacement |
WattCycle covers shipping costs |
Requires quality defect confirmation, valid proof of purchase, within warranty period. |
|
Personal reason (return within 30 days) |
Return for refund |
Customer bears return shipping |
Original packaging intact, product in good condition. Warehouse restocking fees will be charged. |
|
Personal reason (return after 30 days) |
Return for refund |
Customer bears two-way shipping |
Warehouse restocking fees and depreciation fees will be charged. |
|
Wrong item shipped / Missing item / Transit damage |
Free replacement |
WattCycle covers shipping costs |
/ |
|
Order cancellation (before shipment) |
Refund |
No shipping charges incurred |
/ |
|
Over 6 months (non-quality issues) |
Returns not accepted |
/ |
/ |
3. Refund Policy
- Refunds are applicable only for quality issues reported within 6 months of purchase. Quality issues identified after 6 months will be resolved through product replacement.
- The refund amount will be calculated after final verification, deducting any applicable fees, and returned via the original payment method.
- Refunds will be processed via the original payment method within 3-5 business days after receipt and inspection of the returned product.
III. Warranty Exclusions (Limitations of Liability)
This warranty does not apply to damage or malfunction caused by:
1. Accidents and Force Majeure
- Accidents, abuse, misuse, or negligence
- Natural disasters such as fire, flood, lightning, earthquakes, extreme temperatures
2. Improper Use and Installation
- Failure to follow installation, operation, or maintenance instructions in the product manual
- Voltage/current mismatch, reverse polarity connection
- Use of incorrect fuses or undersized cables
- Series or parallel connections exceeding permissible limits (e.g., systems exceeding 48V)
- Mixing with other battery brands
3. Unauthorized Modifications or Repairs
- Any disassembly, modification, or repair by unauthorized personnel
- Altered, damaged, or removed serial numbers
4. Normal Wear and Tear and Commercial Use
- Cosmetic wear or scratches from normal use.
- Natural capacity degradation over time (normal aging).
- Use exceeding the product’s designed cycle life or technical specifications.
5. Long-Term Inactivity
- Damage resulting from failure to perform periodic charging maintenance for over one (1) year.
6. Other
- Inability to provide valid proof of purchase.
- Products that have been fully refunded through other means.
IV. Final Provisions
- WattCycle reserves the right of final interpretation of this warranty policy.
- This policy may be revised periodically. All changes will be published on our official website.
Contact Information:
📧 Official Customer Service Email: service@wattcycle.com
🌐 Official Website: www.wattcycle.com
Youtube Reviews
Youtube Reviews
Sign up to be the first to know when it's here
Wattcycle 12V 100Ah Mini Bluetooth LiFePO₄ Battery Group 22NF Light...
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
How to Choose the Version
| Version |  |
 |
 |
| Size | 9.0 x 5.6 x 8.2 inch | 10.2 x 6.6 x 8.2 inch (Group 24) | 13.0 x 6.9 x 8.7 inch (Group 31) |
| Weight | 20.8 lbs | 23.0 lbs | 26.0 lbs |
| Nominal Voltage | 12.8V | 12.8V | 12.8V |
| Energy | 1280Wh | 1280Wh | 1280Wh |
| BMS | 100A | 100A | 110A |
| Bluetooth | √ | × | × |
| Low-tem Protection | √ | √ | √ |
| Shop now | Shop now | Shop now |
🔋 High Capacity, Compact Size
- 100Ah reliable power in a space-saving design, perfect for applications where size matters.
- Consistent voltage delivery for sensitive electronics, ensuring safe and efficient performance.
- Built-in overcharge/discharge protection, short-circuit prevention, and temperature resistance for long-term durability.
- Ideal for solar energy storage, RVs/campers, marine use, off-grid systems, backup power, and more.
Move It, Mount It, Power It.
Lightweight handle + dual-length studs adapt to your adventures.
Insulated caps and anti-vibration design for harsh environments.
- Dual-Length M8 Studs – Flexible Mounting for Complex Configurations
- Anti-Slip Nylon Grip – One-Hand Carry for 12kg Battery
- Insulating Caps Included – Prevent Accidental Short Circuits
WattCycle 12v 100Ah Mini LiFePO4 Lithium Battery Features

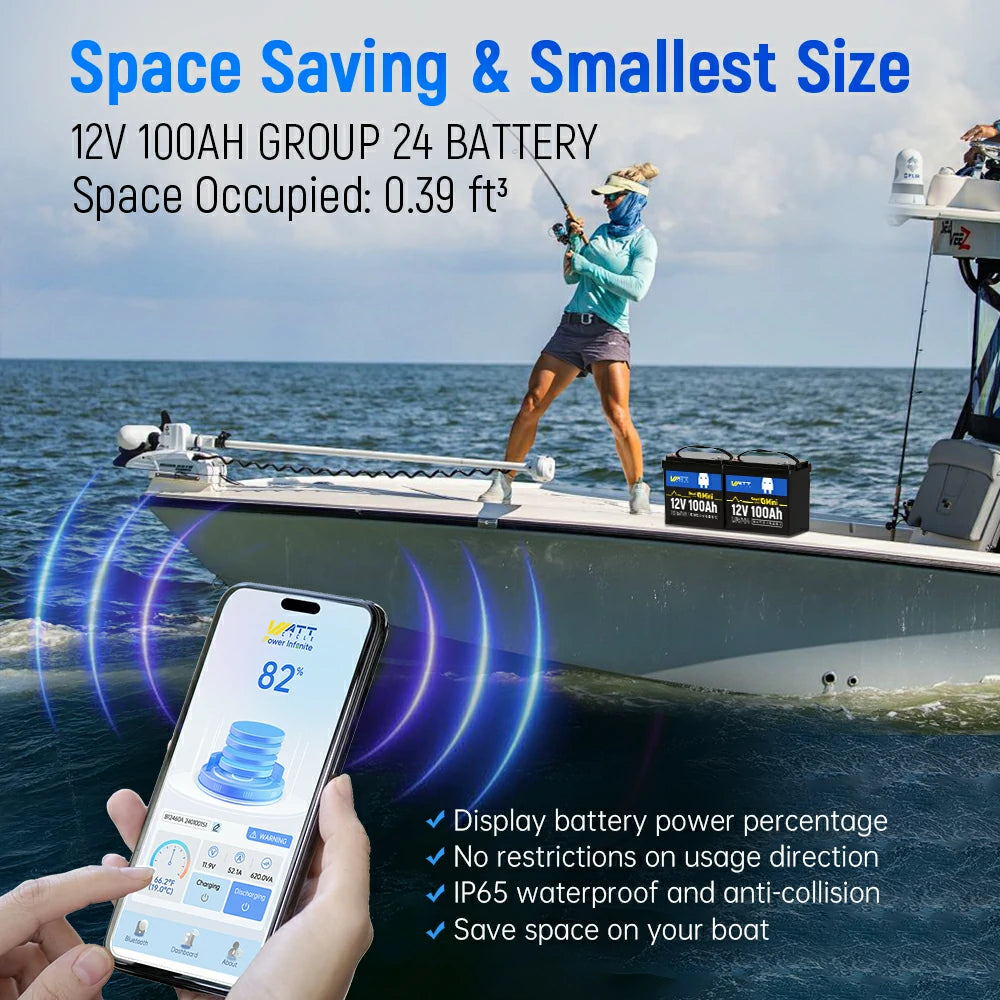

Looking for A Smaller & Lighter Battery with Higher Energy Capacity?
WattCycle 12v 100Ah Mini LiFePO4 Lithium Battery

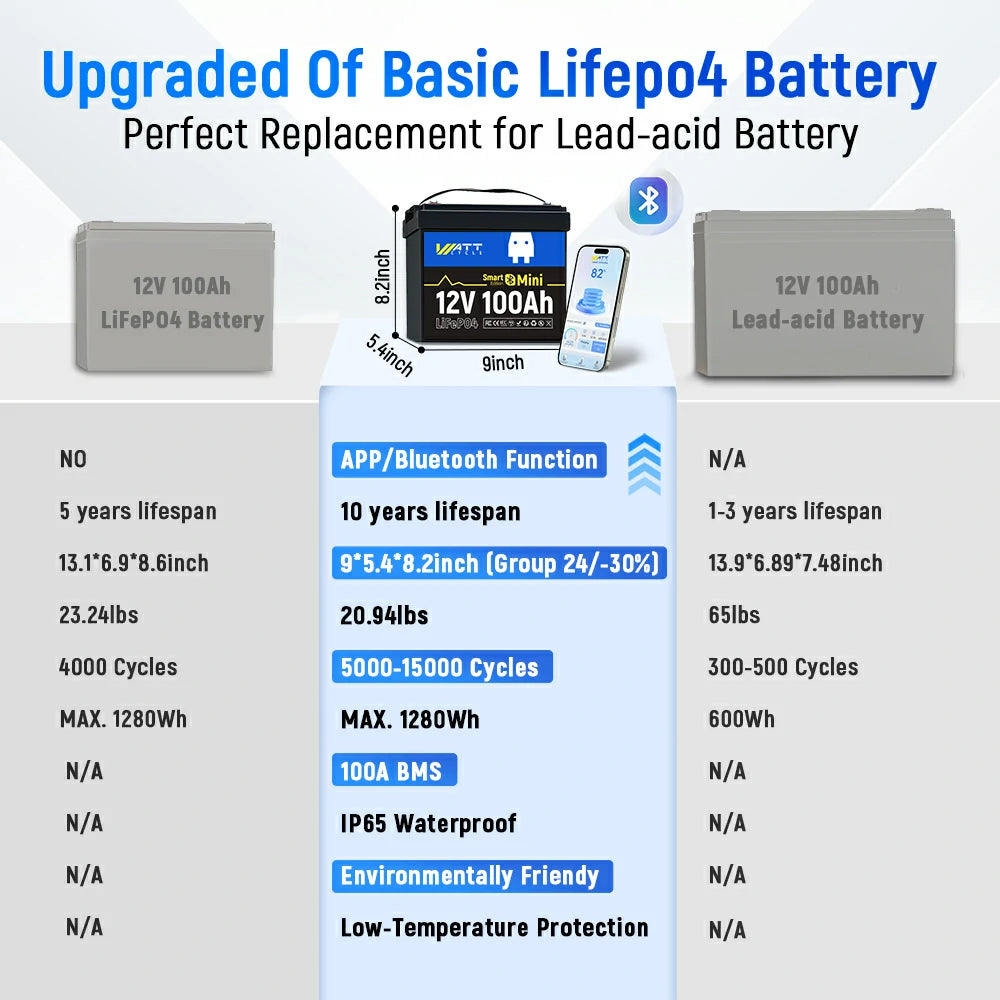

Compared to lead acid battery: 49% smaller, 65% lighter, 70% energy density increases
Compared to 12V 100Ah battery (WattCycle): 32% smaller, 10% lighter, 10% energy density increases

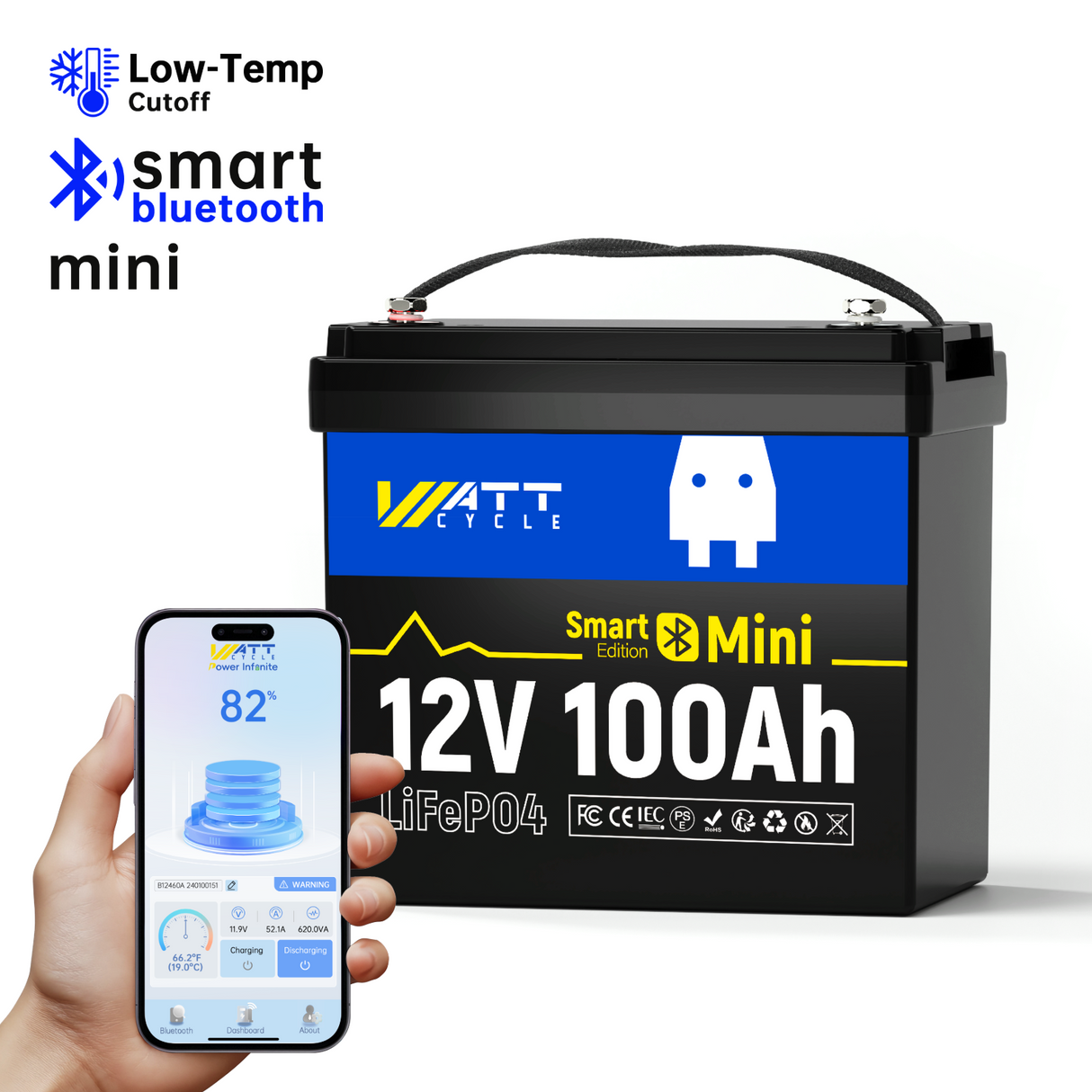

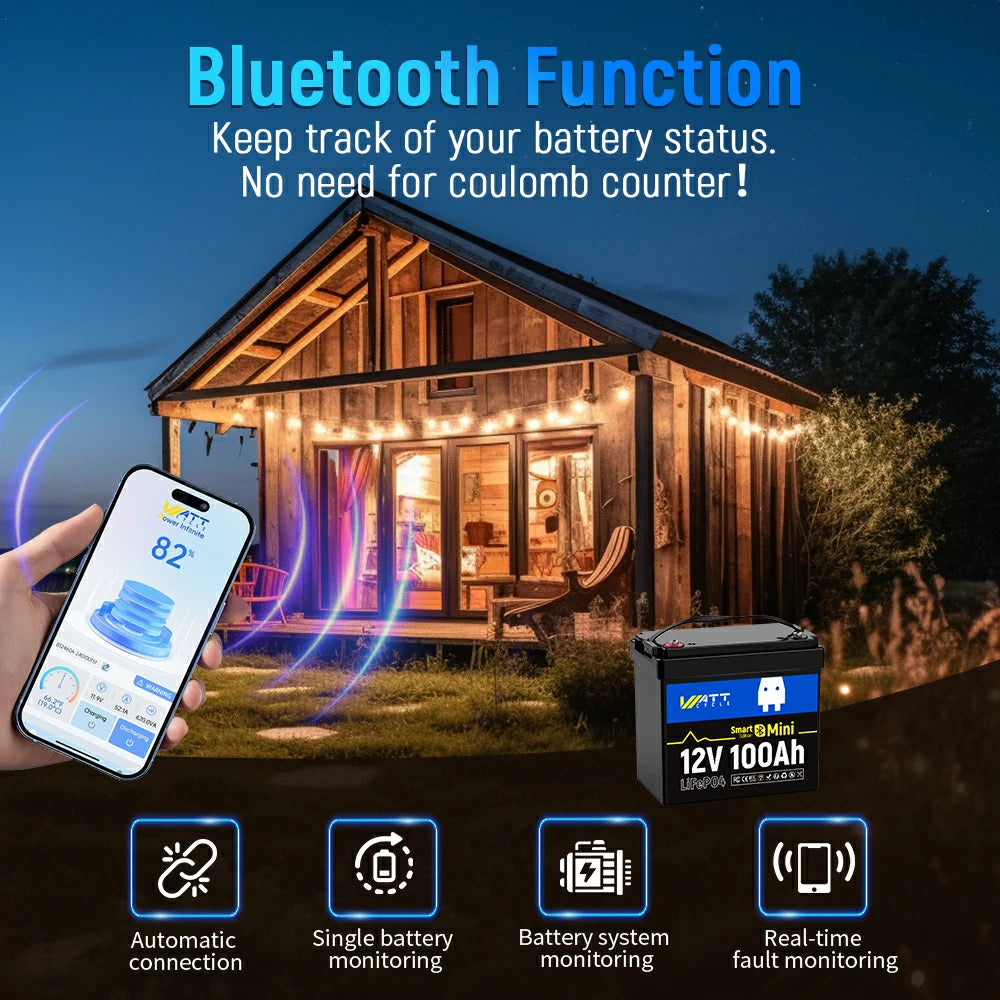

Remote Genius at Your Fingertips
Stay informed about your LiFePO4 Lithium battery's condition with built-in Bluetooth, allowing you to monitor real-time status and remaining power easily from your smartphone.
Flexible Connections for Versatile Applications

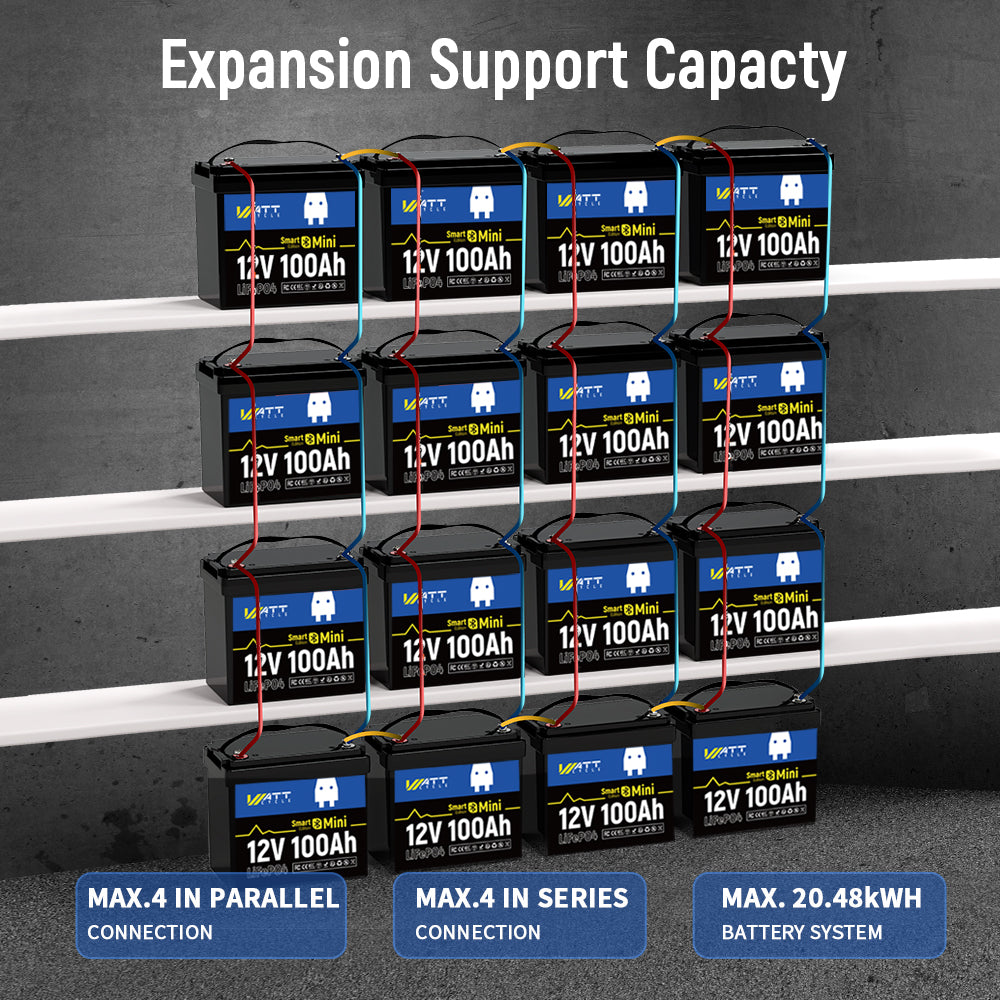

12v 100Ah Mini LiFePO4 Support 4S4P, Max. Power up to 20.48kw
3 Charging Modes
-

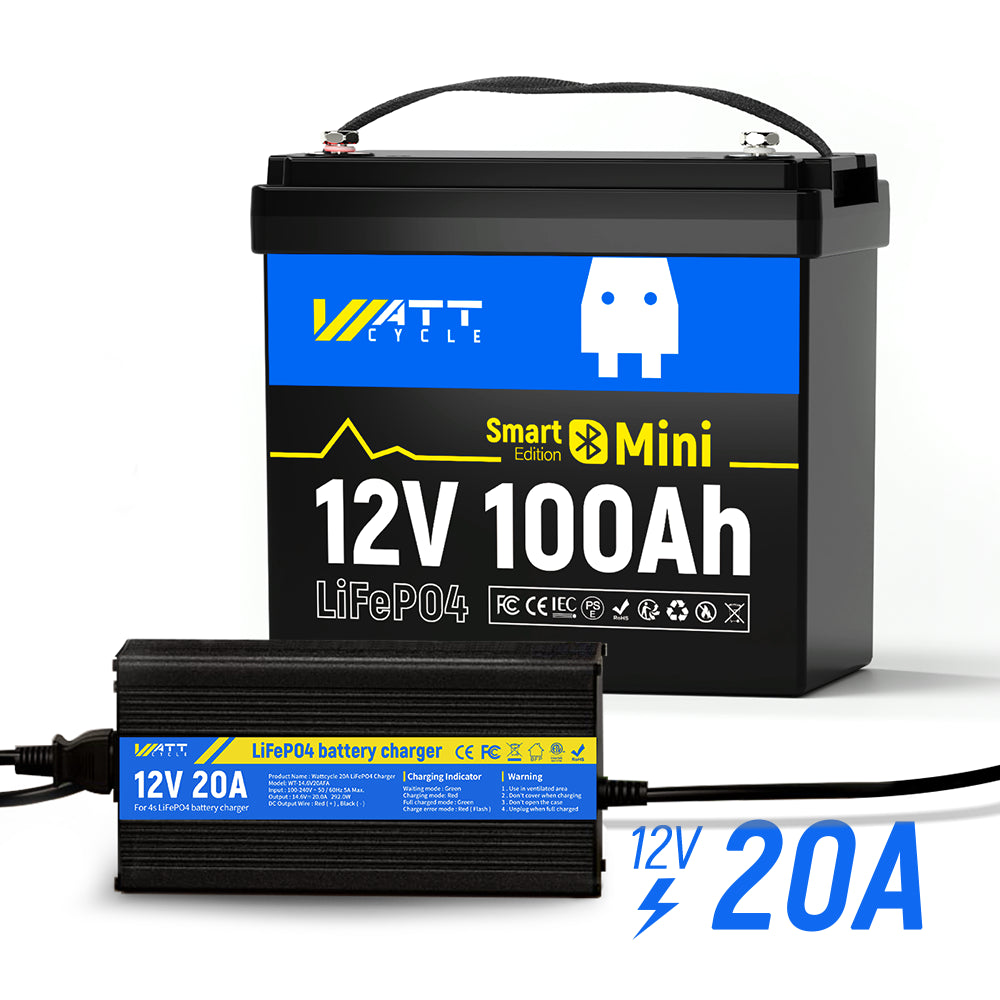

14.6V 20A Battery Charger
Charging Phases: Constant Current Charging / Constant Voltage Charging / Trickle Charging
Recommended Charging Rate: 20A (0.2C / 5hrs)
-
Solar Panel
Recommended charging rate: 0.5C to 1C
Charging duration: Under ideal conditions, it is about 18 hours.
Solar controller: MPPT controller
-
Generator
Recommended charging rate: 0.2C
(20A DC-DC Charger)
Charging duration: 5hrs
Tips for the longer batteries' lifespan
-
For the sake of safety, please do not use it as the starting power.
-
It can not be used for charging your lead-acid battery.
-
Please pay attention to the reminding for connections.
TECH SPECS
GENERAL
| Dimensions (Inches) | 9.0 (L) x 5.6 (W) x 8.2 (H) |
| Weight | 20.8 lbs / 9.5kg |
| Waterproof Rating | IP65 |
| Warranty | 5 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
CELLS
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5,000 cycles @100% DOD, 6,000 cycles @80% DOD, 15,000 cycles @60% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion (Parallel & Series) | 4S4P |
| Certifications | SDS/UN38.3/FCC/CE/ROHS/UL |
| Internal Resistance | ≤40mΩ |

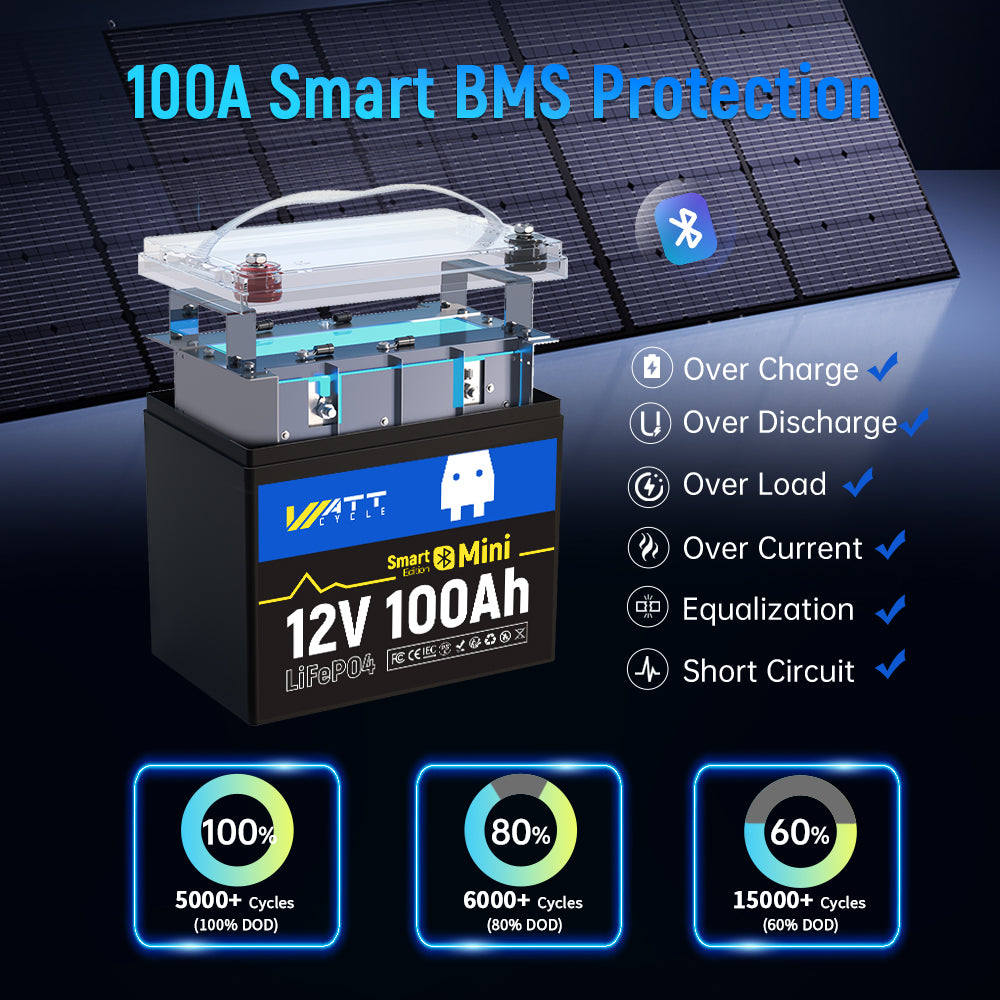

BMS
| BMS | 100A |
| Max. Continuous Output Power | 1280W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Discharge Current | 110A 10S; 150A 1S |
CHARGE SPECS
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 20A (0.2C) |

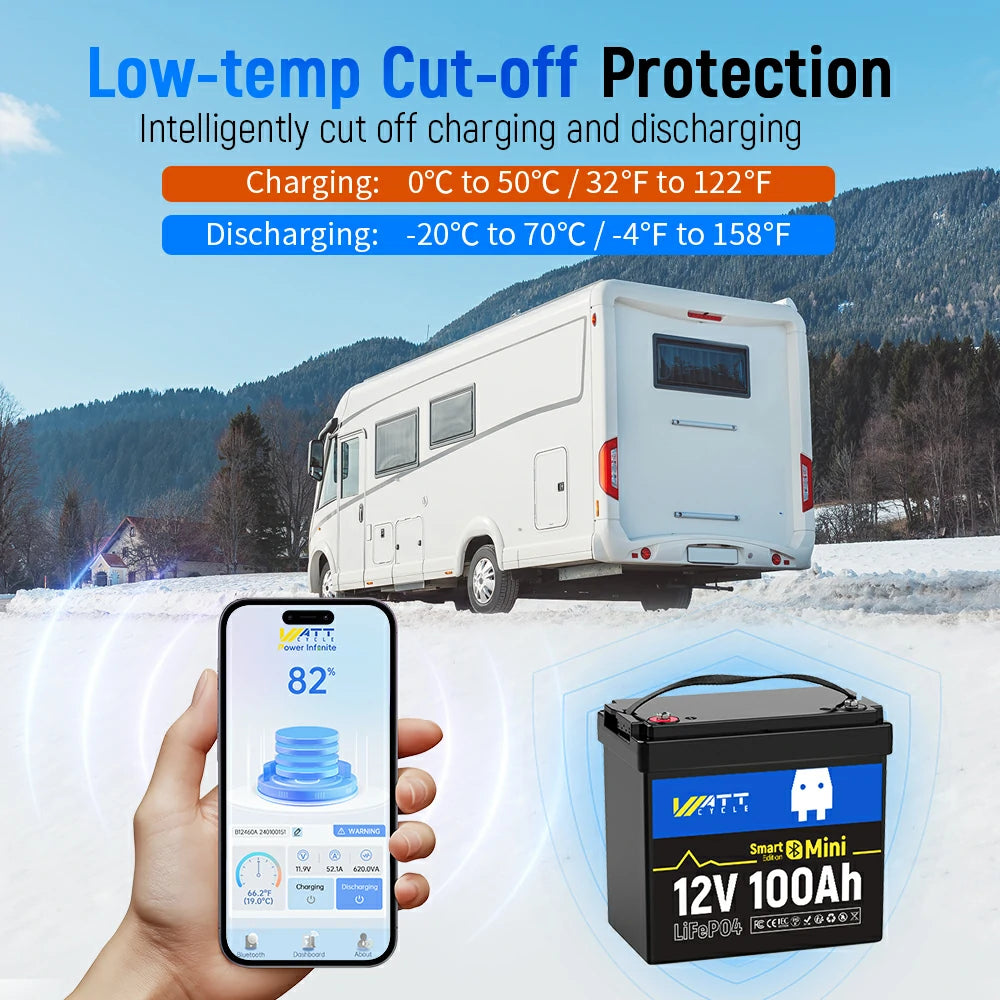

| Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
| Discharge Temperature： | -20℃ to 70℃ / -4℉ to 158℉ |
| Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
Frequently Asked Questions
Q1: What is the difference between 12V 100Ah and 12V 100Ah MINI Bluetooth? (WattCycle)
Q1: What is the difference between 12V 100Ah and 12V 100Ah MINI Bluetooth? (WattCycle)
A1:
There is only one difference between them: Bluetooth Control. They are the same as the other parameters, including size, weight, cycle life and so on.
Q2: How do I monitor the battery status?
Q2: How do I monitor the battery status?
A2:
The 12V 100Ah MINI Bluetooth LiFePO4 Battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the App.
This application is independently developed and designed by Shenzhen Wattcycle Power Co., Ltd. lt specializes in monitoring lithium batteries, providing real-time status readings such as the voltage of each battery series charging and discharging current, alarm prompts, protection status, etc. This allows users to clearly understand the health status of lithium batteries and ensure their safe use.
You can download the app by scanning the QR code in the user manual.
Q3: How can I download the App?
Q3: How can I download the App?
A3:
Apple APP Store and Google play. (QR code to download it is in the user manual) Download and open the app to directly scan the QR code and connect the battery or search for nearby Bluetooth batteries.
Q4: Dose it still have the low-temp protection?
Q4: Dose it still have the low-temp protection?
A4:
Yes, it does. It is recommended to charge it between 32℉ (0℃) and 122℉ (50℃ ).
Q5: How to charge WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery?
Q5: How to charge WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery?
A5:
Charging Your WattCycle LiFePO4 Battery: 3 Easy Options
1. Solar Power:
Harness the sun's energy! With effective sunshine for 4.5 hours a day, a 300W solar panel system can fully charge your battery in a single day.
Solar panel flexibility: Larger solar panels (greater than 300W) can also charge your battery, but charging times may vary depending on sunlight intensity and duration.
2. Generator/Alternator:
Compatible power source is key: Ensure your generator or alternator provides a DC output. In this case, a DC-to-DC charger is needed to connect it to the battery.
AC output option: If your generator/alternator uses AC output, consult our recommendations for a suitable battery charger to connect it to your battery.
Charging recommendations:
Recommended Charging Voltage: 14.6V ± 0.2V
Recommended Charging Current:
① 20A (0.2C): Charges the battery to 100% capacity in approximately 5 hours.
② 50A (0.5C): Charges the battery to around 97% capacity in approximately 2 hours (faster charging, slightly lower capacity).
3. LiFePO4 Dedicated Chargers (for 12V Batteries):
Recommended charger: We recommend using a 14.6V battery charger specifically designed for LiFePO4 batteries.
Charging recommendations:
Recommended Charging Voltage: 14.6V ± 0.2V
Recommended Charging Current:
20A (0.2C): Charges the battery to 100% capacity in approximately 5 hours.
50A (0.5C): Charges the battery to around 97% capacity in approximately 2 hours (faster charging, slightly lower capacity).
Overall, WattCycle LiFePO4 batteries offer you the flexibility to choose the charging method that best suits your needs.
Q6: How long to charge WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery?
Q6: How long to charge WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery?
A6:
We recommend using a 14.6V battery charger specifically designed for this battery.
Charging recommendations:
1) Recommended Charging Voltage: 14.6V ± 0.2V
2) Recommended Charging Current: 20A (0.2C)
Charges the battery to 100% capacity in approximately 5 hours.
Q7: What is the maximum number of WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery connected in series or parallel?
Q7: What is the maximum number of WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery connected in series or parallel?
A7:
Expand your power options! You can connect up to four (4) WattCycle 12V 100Ah lithium batteries in series or parallel configurations (denoted as 4S or 4P). This allows you to increase the voltage (series) or capacity (parallel) of your battery system to meet your specific needs.
For safe and optimal performance, please follow these connection guidelines:
1) Brand: Only connect WattCycle brand batteries (ensure compatibility).
2) Type: All batteries must be lithium type.
Voltage: All batteries must have the same voltage (12V in this case).
3) Capacity: All batteries must have the same capacity (100Ah).
4) BMS: Ensure all batteries have the same Battery Management System (BMS).
5) Purchase Date: Ideally, connect batteries purchased within 3-6 months of each other (for similar performance characteristics).
Not following these guidelines could damage your batteries.
We recommend consulting a qualified professional for assistance with battery connection.
Q8: What is the maximum output energy I can get?
Q8: What is the maximum output energy I can get?
A8:
20.80kWh.
With 4S4P, this allows you to quadruple the voltage (series) and capacity (parallel) of your battery system for maximum output energy.
Then the maximum output energy you get is equal to 20.80kWh. (12.8V*4*100Ah*4=20.80kWh)
Let customers speak for us
Exactly as described, includes comms cable and battery cables, screen is easy to read, appears to be accurate ah rating. Quality case. Excellent packaging (thick cardboard box with protective card edge strips with dense foam to cushion movement).
Only improvements they can make are instructions don't explain how to mount the rack and handles but does talk about not included stacking kit mounting. And the app isn't particularly well thought out. I understand it's a reskin of the BMS manufacturers app, but it could be a lot better with very little changes.
But overall 9/10, exactly what I needed at the price I needed.
I haven't had the battery long enough to see battery full potential and charging times. Soon though.
Bought this second battery to use in series with the first battery to make 24V battery bank to run my EG4 direct solar 12,000 Btu 120V ac mini split overnight. I can air condition 600 square foot area with just 2-12.8V 280ah batteries in serious. Although we did another video where we ran this mini split overnight with just one WattCycle 12.8V battery and a 120V ac output inverter Keeps area 600 sq ft area 76-78 degrees overnight even with it being 116 degrees outside yesterday. Still have 40-50 percent state of charge left in batteries in the morning when the battery bank is charged up again. I will definitely buy more WattCycle batteries. Have been using for several months now, extremely reliable for me. Highly recommend the WattCycle batteries.
Batteries arrived in good shape & well packed. Came with short & longer bolts which was helpful. I installed 4 of them in a boat as the primary house side. They replace 4 each 210 AHr AGM batteries that were half again bigger and twice as heavy (120 lbs each) as these ~60 lb 314 AHr LifePO4 batteries. This tripled my house capacity & removed 240 lbs of the weight. I added 250A MRBF Fuses to each +positive battery, as well as a 350A Class-T fuse on the overall DC+ side. Additionally, I added a Victron 500A Waterproof SmartShunt to monitor the charge/discharge levels. For charging, I added a Victron Orion XS 50A DC to DC charger for the alternator, and a 40A LifePO4 AC to DC Charger with a remotely activated plug. So far, the batteries seem to be working as advertised.
Had a few issues with shipping due the batteries being so heavy, may have been dropped by FedEx but WattCycle shipped out a replacement. Can’t fault the customer service. Just finished putting my server rack together before wiring it to the inverter.
I needed longer battery life, my old 100ah battery just wasn’t cutting it. With this battery I can run my fridge/freezer 3 times longer without worrying about running low on battery life.
This harness takes all the guess work out of linking your batteries in a series. Just connect all the wires up and plug the ends in and it’s done. They also come with really nice heat shrink connectors to hook up to your main power wires. 100% a must have for a 36v system.
Use to charge Wattcycle 280. Charges in reasonable time. Helpful display to match my Victron shunt and Bluetooth from battery. Added inline heavy duty on/off power switch to better control charging cycle.
Very well constructed, packaged, and documented battery.
