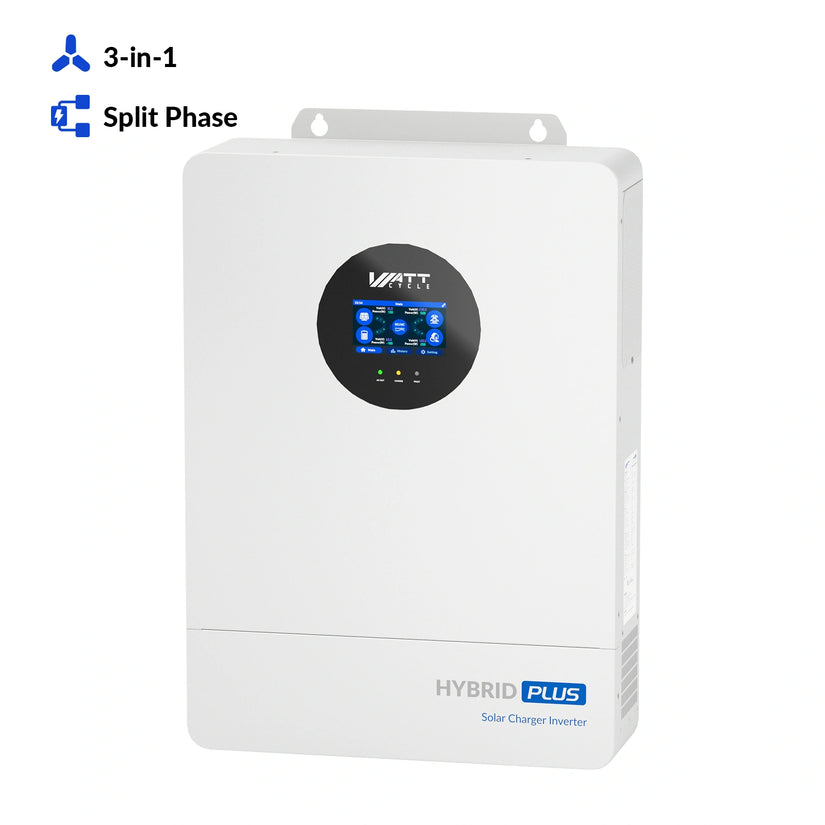

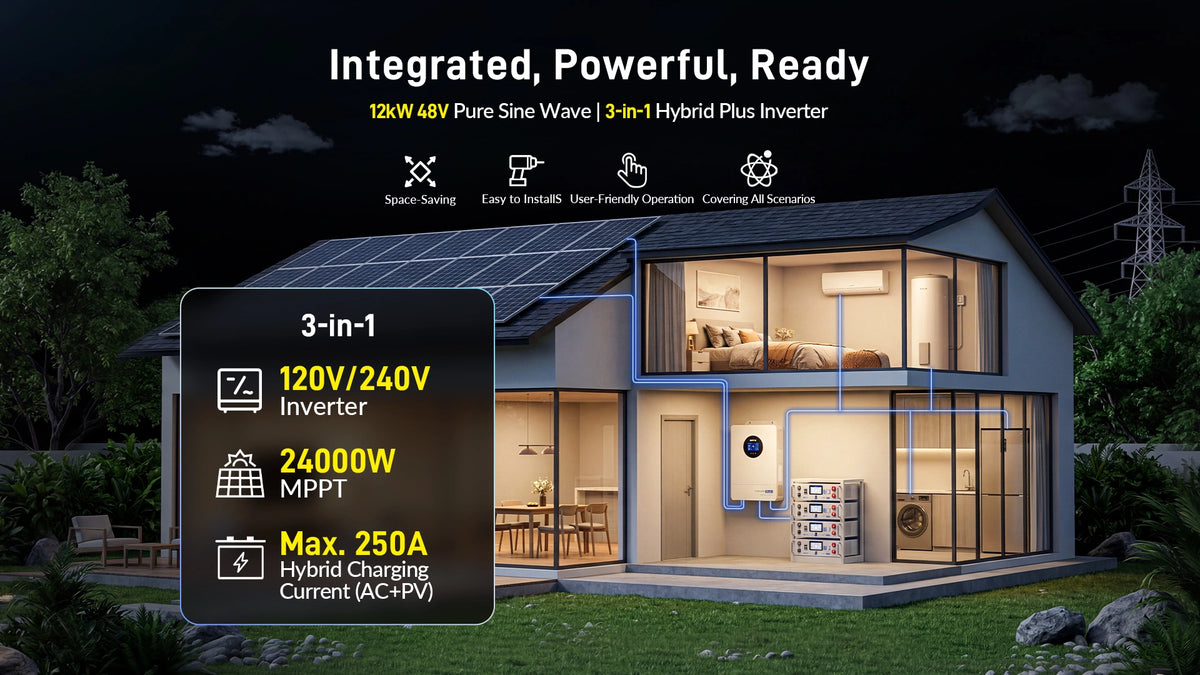

Upgrade V2: WattCycle 48V 12kW All-in-one Hybrid Inverter：Split Phase 120/240V, 24kW Dual MPPT, 250A Charger

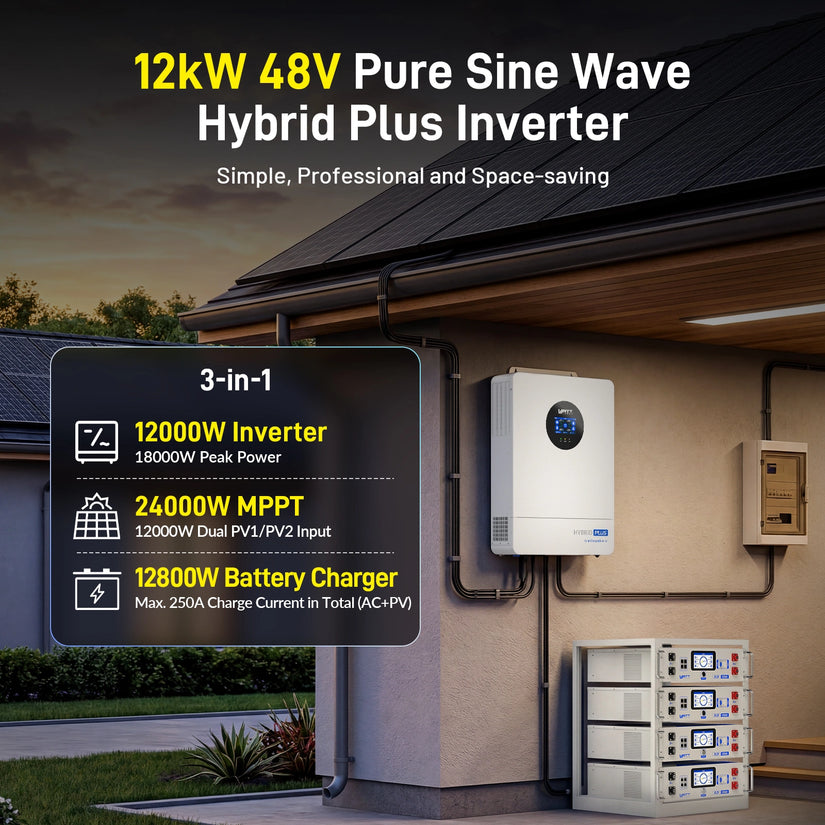

A: The definitive upgrade in the V2 model is the massive expansion of its solar charging capacity, moving from the original 18kW (9kW + 9kW) to an industry-leading 24kW (12kW + 12kW) Dual MPPT Solar Input.

Here is exactly how this 200% oversizing capacity transforms your home power backup:

• Conquer "Poor Weather" Anxiety: Solar panels rarely hit 100% efficiency due to winter low-sun angles, overcast skies, or morning haze. With a 24kW limit, you can over-panel your roof. Even if a storm drops your panel efficiency to 50%, your system is still pulling a full 12kW of raw power to run your home and top off your batteries.

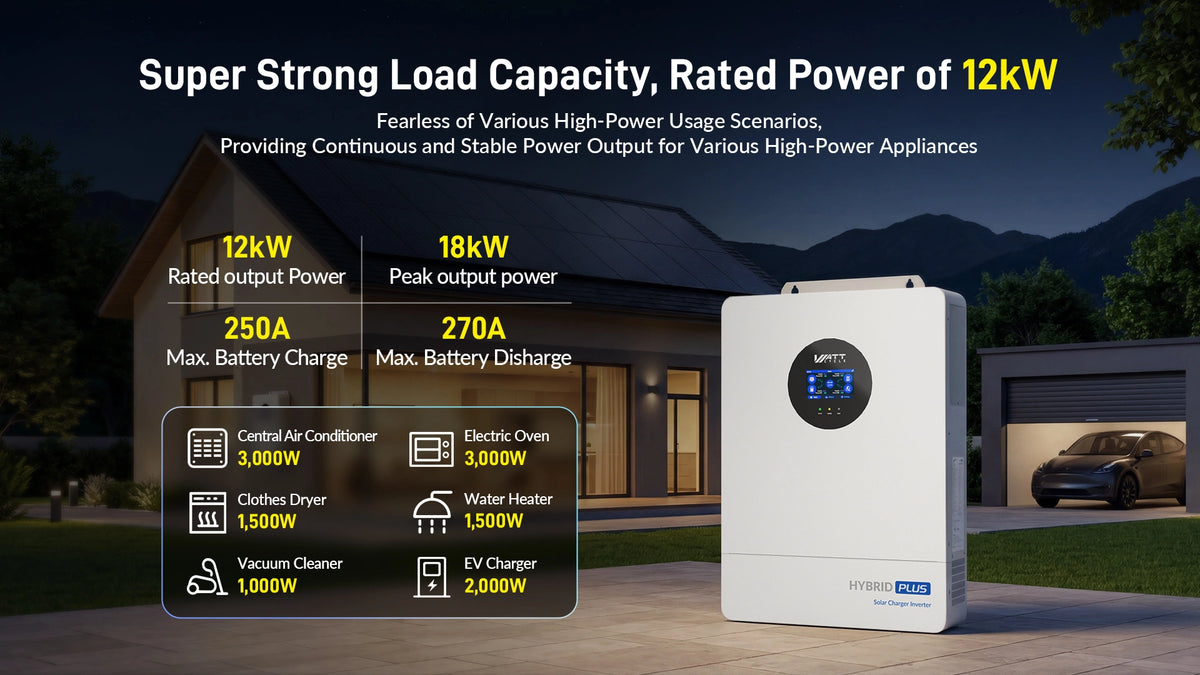

• Lightning-Fast Recharging: Paired with our 250A massive charging capability, the dual 12kW MPPT channels harvest maximum solar energy simultaneously before and after storms, refilling a giant 16.07kWh battery in record time.
• Zero Space & Panel Constraints: You no longer need to worry about splitting odd strings of high-wattage modern panels. The 12kW+12kW independent dual channels allow you to point panels in different directions (e.g., East/West roofs) to maximize daylight capture from sunrise to sunset.

A: Yes, you can. However, the inverter’s auto-sleep behavior depends on active inputs and loads:

• Auto-Sleep Threshold: When the AC load drops below 25W, the inverter will automatically enter sleep mode after about 5 minutes to conserve battery life.
• Solar Override: If there is active PV (solar) input, the inverter will stay awake to manage the incoming solar energy and will not enter sleep mode.
• Pro-Tip for Evening/Night: During dusk or overcast periods when solar input drops below 15W, the inverter's standby self-consumption (80–120W) may exceed the solar generation. To prevent unnecessary battery drain at night or during weak sun conditions, we highly recommend manually turning off the inverter's AC output.

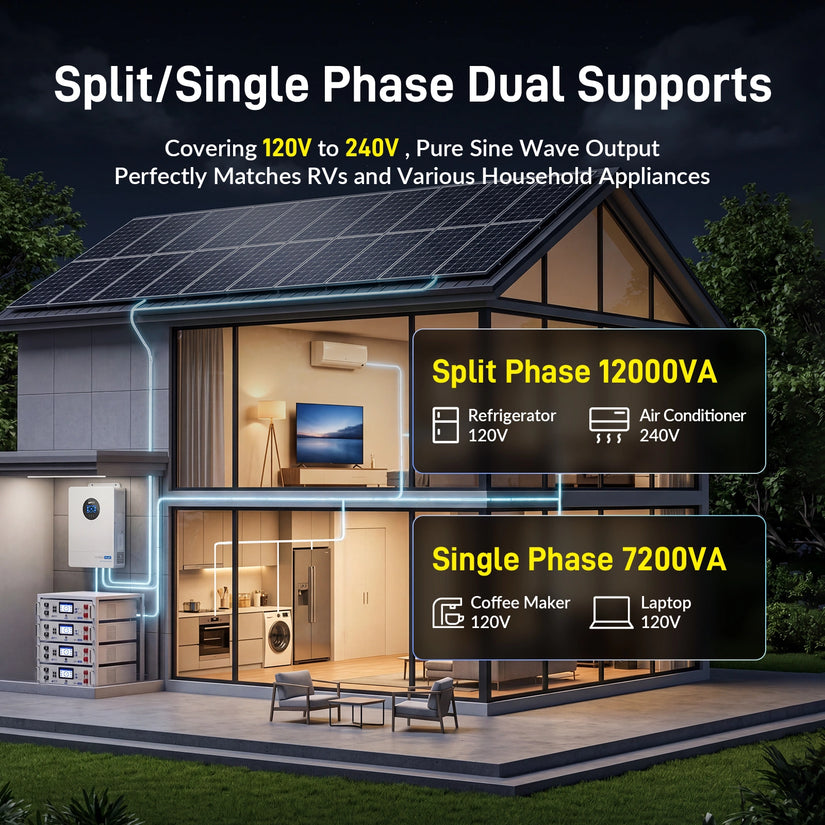

A: Yes, absolutely! While our inverter is a heavy-duty split-phase system, it natively supports Single-Phase 120V Dual Modes for standard household setups or RV integrations without complicated wiring.

Here is how to set it up as a standard 120V system:

• AC Input (Charging): Connect your line only to L1 and N (leaving L2 disconnected).
• AC Output (Load): Draw your power directly from L1 and N to power your standard 120V appliances or sub-panel.

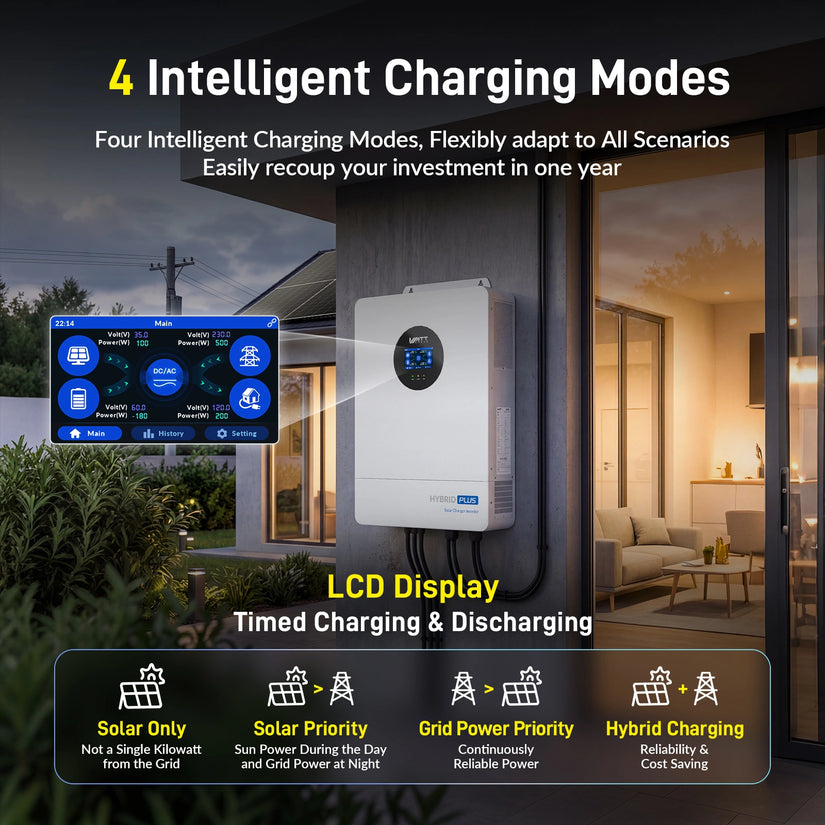

• Inverter Setting: Configure your output priority to Battery Priority (SOL).
• The Result: The system bypasses the 240V split-phase requirement and directly outputs standard, stable 120V utility-style power—making it perfect for RV parks, mobile workshops, or simple DIY emergency backups.
