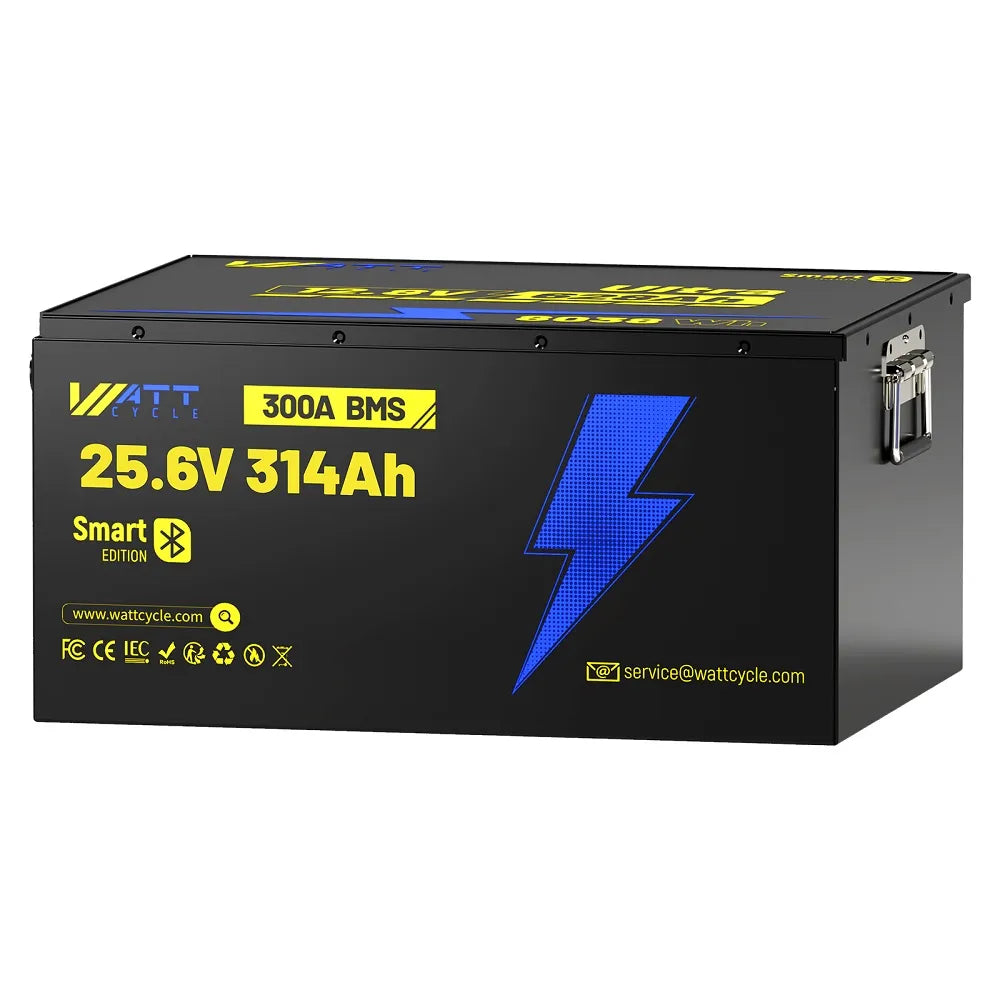

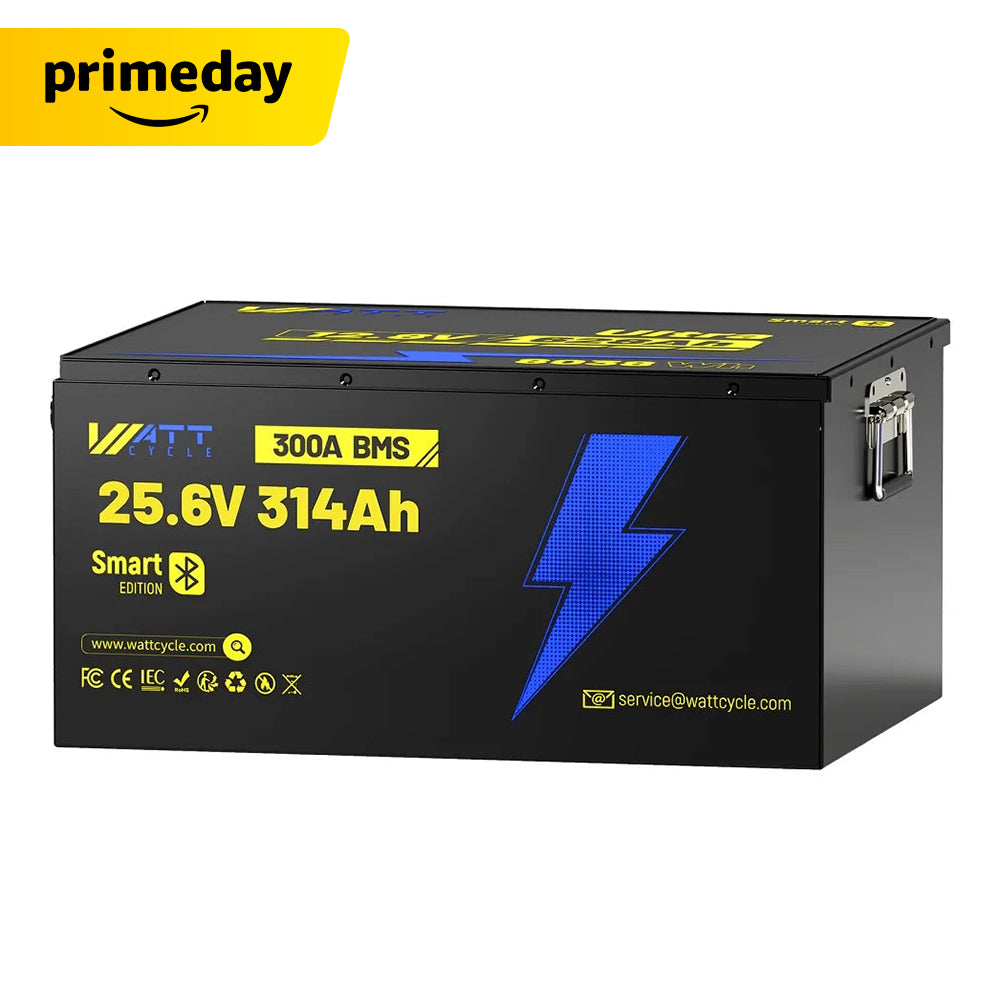

【⏰Prime Day】24V 314Ah Ultra Lithium Battery with Bluetooth

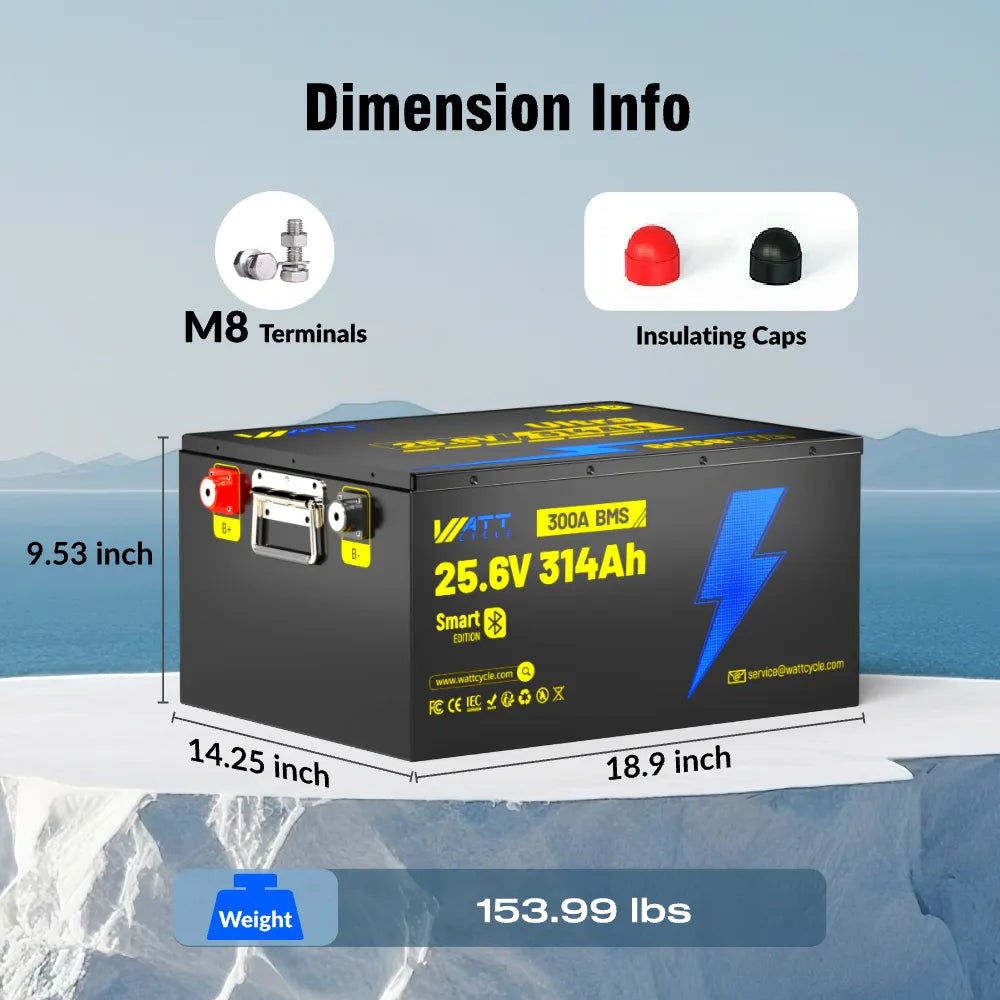

⚡Compact Design: 18.9 X 14.25 X 9.53 inch | 153.99 lbs
⚡Massive Capacity: 314Ah (25.6V) | ~8kWh energy storage in a single unit.
⚡Equivalent to 2-series 12V 314Ah MINI BT
⚡3X weight energy density of lead-acid batteries making it suitable for scenarios that require lightweighting (such as RVs and ships).
⚡Ultra-Long Cycle Life: 6,000+ cycles at 80% depth of discharge (DoD)—outperforming standard LiFePO4 batteries.
⚡High Power Output: Continuous 300A discharge (7,680W) for heavy-duty inverters and equipment.
⚡Smart Bluetooth Monitoring: Track real-time voltage, state of charge (SoC), temperature, and health via WattCycle app.
⚡Robust 300A BMS with 8X Protections: Over-current, short-circuit, and thermal safeguards.
⚡Low/high-temperature cutoffs (charge: -5°C/23°F to 60°C/140°F; discharge: -25°C/-13°F to 75°C/167°F).
⚡Scalable Design: Supports up to 2-series (51.2V) or 4-parallel (1,256Ah) configurations with 64.31kWh Max. usable energy.
⚡Military-Grade Build: UL94 V-0 fire-resistant ABS+PC casing and corrosion-resistant M8 terminals.

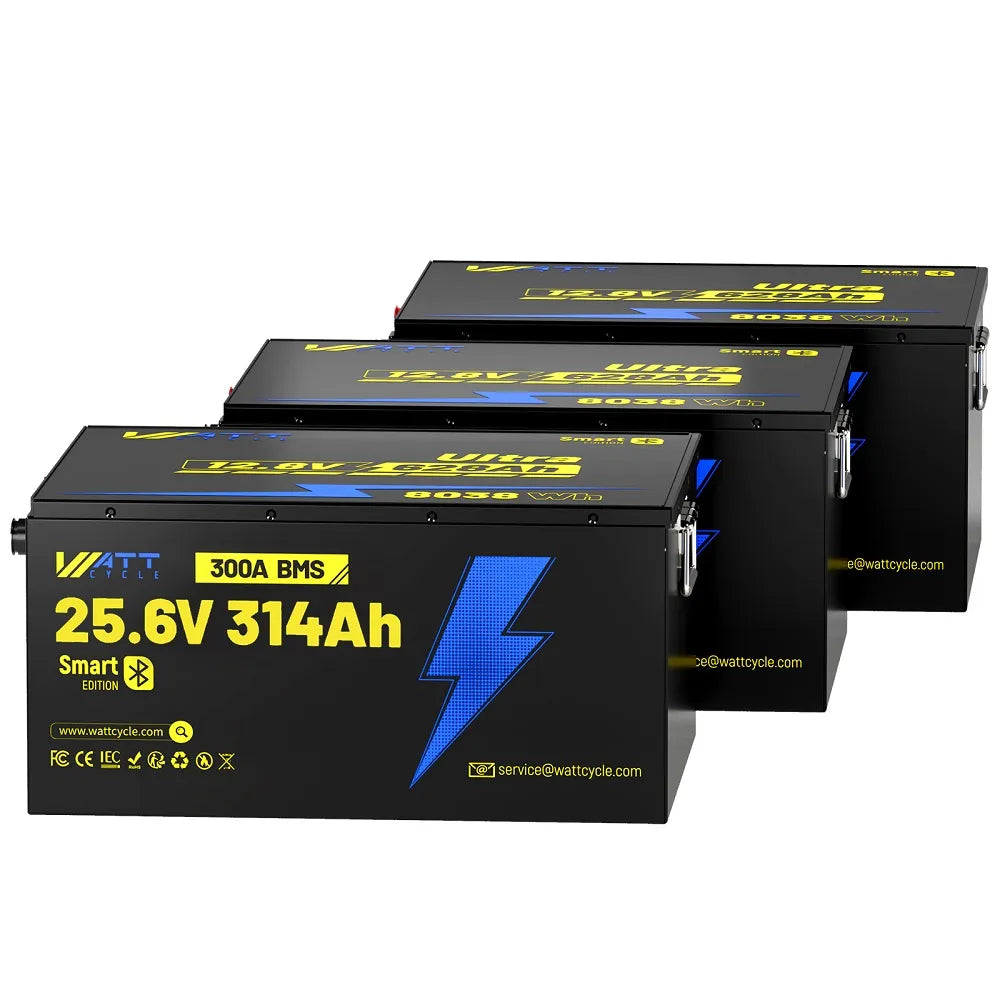

【⏰Prime Day】24V 314Ah Ultra Lithium Battery with Bluetooth - 1 PACK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
User Manual
User Manual
Shipping Service
Shipping Service
Thank you for choosing WattCycle for your LiFePO4 battery needs! We understand that getting your batteries quickly and safely is important to you. This policy outlines the shipping process for WattCycle orders.
Destinations:
- We only ship orders to Continental
- Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico.
- Please do not use PO Box addresses, which are not within the delivery range of FedEx. If you accidentally use such addresses, please contact us to change them in time to avoid delays in delivery.
Shipping Fee:
- FREE shipping on all orders
- Shipping method: UPS Ground & Fedex
Shipping time:
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 business days
- Shipping time: 2-5 business days
- The shipping will delay for some objective or uncontrolled reasons. We will notice our customer ahead for delays.
Tracking Your Order:
- Once your order ships, you will receive a confirmation email with a tracking number. You can use this tracking number to track the progress of your shipment on the carrier's website.
Disclaimer:
- While we strive to meet the estimated delivery times provided, these are estimates and actual delivery times may vary depending on factors beyond our control, such as carrier delays or weather conditions.
Changes to This Policy:
- We reserve the right to modify this Shipping Policy at any time. We will post any changes to this policy on our website.
We appreciate your support! If you have any questions about our shipping policy, please feel free to contact us at service@wattcycle.com.
Warranty Policy
Warranty Policy
Warranty Policy
At WattCycle, we stand behind the quality and performance of our batteries. We offer a comprehensive warranty to ensure your satisfaction with your purchase.
Please read the product manual carefully before installing and using the product, and use the battery correctly under the instructions of the manual.
Warranty Period
WattCycle warrants that the product will be free from defect in workmanship and material to the original consumer purchaser.
The warranty period starts on the date of purchase by the original consumer purchaser.
| LiFePO4 Batteries (>50Ah) | LiFePO4 Batteries (≤50Ah) | Cells / Like New Batteries | LiFePO4 Battery Charger | Accessories | |
| Website | 5+2 Years | 3 Years | 3 Years | 3 Years | 1 Year |
| Amazon | 5+2 Years | 3 Years | 3 Years | 3 Years | 1 Year |
| Temu | 5+2 Years | 3 Years | 3 Years | 3 Years | 1 Year |
| Ebay | 5+2 Years | 3 Years | 3 Years | 3 Years | 1 Year |
Note: Only registered customers can extend the warranty service by 2 years. Final interpretation rights belong to WattCycle.
Question: Will my lithium battery still be covered under warranty after being connected in series or parallel?
Answer: As long as your product meets the warranty conditions and you have registered for the warranty, you will receive the corresponding warranty period. Connecting the batteries in series or parallel (or other normal operations) will not affect your product's warranty duration.
Warranty Statement
Any defects in material, workmanship of your product will be covered after you provide any valid proof of purchase and information including but not limited to:
1. A purchased order number made through WattCycle official stores.
2. Sales invoice or order confirmation email that clearly shows the description of the product, its price, and sales channel.
Note: The limited warranty is restricted to the country of purchase. The warranty will be invalid on the items once they are taken or shipped to other countries.
Exclusions of Warranty
1. Misused, abused, damaged by accident or damaged due to force majeure. (e.g. lightning strikes, tornadoes, hurricanes, etc.);
2. Unauthorized modification, repair, dis-assembly or operation not in accordance with the official instructions or manuals;
3. Lost, stolen or full refunded product;
4. Warranty period expired;
5. The battery model on the warranty certificate does not match the actual item;
6. Product wear and tear through the usage of time.
Procedures for Warranty Claims
We’ll assist to analyze the consumer’s problem within 24 hours, and help solve the problem, restore battery usage, and introduce the optimal use method.
If our product fails to work normally, the consumer assists us in completing all the battery testing, and both parties confirm that the product does have quality problems, we’ll send a new battery replacement to the defective battery after it has been returned to our US warehouse by the pre-paid label we prepared. And the defective battery will be checked and tested by our technical team to analyze the problem.
From the date of purchase and within 6 months, if our products have quality problems and cannot work normally, we can provide replacement or refund services; Within 7 months from the date of purchase to the end of the warranty, if our products have quality problems and cannot work normally, we can provide replacement services.
Any product(s) returned for valid warranty service will be shipped at the expense and risk of us. We will provide a pre-paid label to customers who need to return the products to the designated place at the specified time.
Batteries that have been serviced or replaced under their warranty period do not receive extended warranties. Instead, the serviced/replaced battery(-ies) will abide by the original warranty period issued when first purchased.
Changes to This Policy:
We reserve the right to modify this Warranty Policy at any time. We will post any changes to this policy on our website.
Contact Us:
If you have any questions about our Warranty Policy, please feel free to contact us at service@wattcycle.com.
We encourage you to read this warranty policy carefully. By purchasing a WattCycle battery, you agree to the terms and conditions of this warranty.
【⏰Prime Day】24V 314Ah Ultra Lithium Battery with Bluetooth
Description
Description
Massive Capacity & Long Cycle Life:
- Experience exceptional power with our 24V 314Ah LiFePO4 battery, delivering a substantial 8.03 kWh of usable energy (8038Wh).
- Engineered for longevity, it boasts an impressive cycle life of over 5,,000 cycles at 1000% Depth of Discharge (DOD), providing reliable power for years to come.
Smart Bluetooth Monitoring (BMS):
- Take full control and monitor your battery's vital statistics effortlessly via the dedicated smartphone app.
- Track State of Charge (SOC), voltage, current, temperature, and more in real-time.
- Receive timely alerts and warnings directly to your phone for enhanced safety and proactive management.
Advanced Safety & Protection:
- Built with premium automotive-grade LiFePO4 cells for superior safety, stability, and performance.
- Integrated high-quality Battery Management System (BMS) provides comprehensive protection against:
- Over-charge / Over-discharge
- Over-current / Short circuit
- High temperature / Low temperature

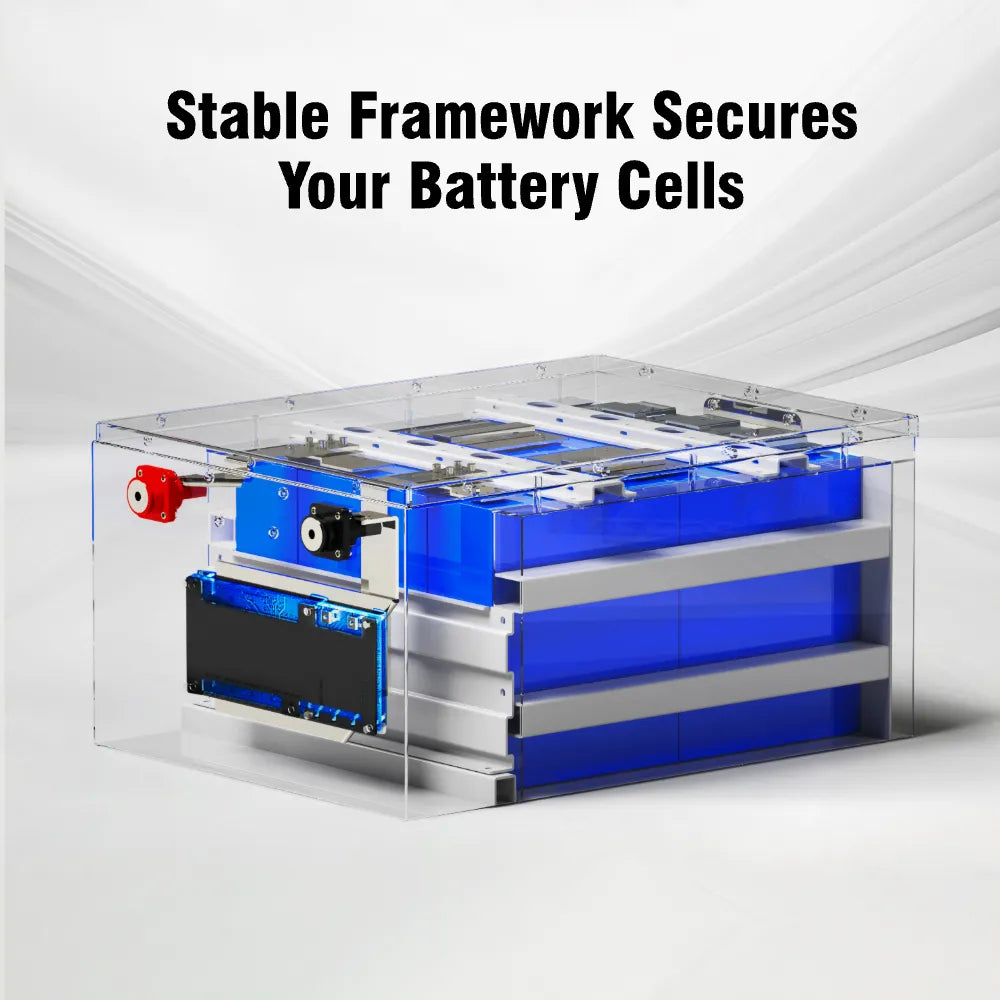

- Robust construction ensures safety and durability under various conditions.
Plug-and-Play Installation:
- Features standard M8 bolt terminals for easy, secure, and reliable connections to your system.
- Designed for straightforward integration into solar energy storage systems, RVs, boats, off-grid applications, and more.
Ideal Applications:
Solar Energy Storage Systems, Off-Grid Power, RVs, Campers, Marine (Boats/Yachts), Golf Carts, Floor Scrubbers, Home Backup Power, and various other deep cycle needs.
Why Choose Wattcycle?
- High-Quality LiFePO4 Cells
- Advanced Safety with Smart BMS
- Real-Time Bluetooth Monitoring
- Long Cycle Life & Deep Discharge Capability
- Easy Installation & Maintenance-Free
- Reliable Performance & 5-Year Warranty
Reviews (10)
Reviews (10)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

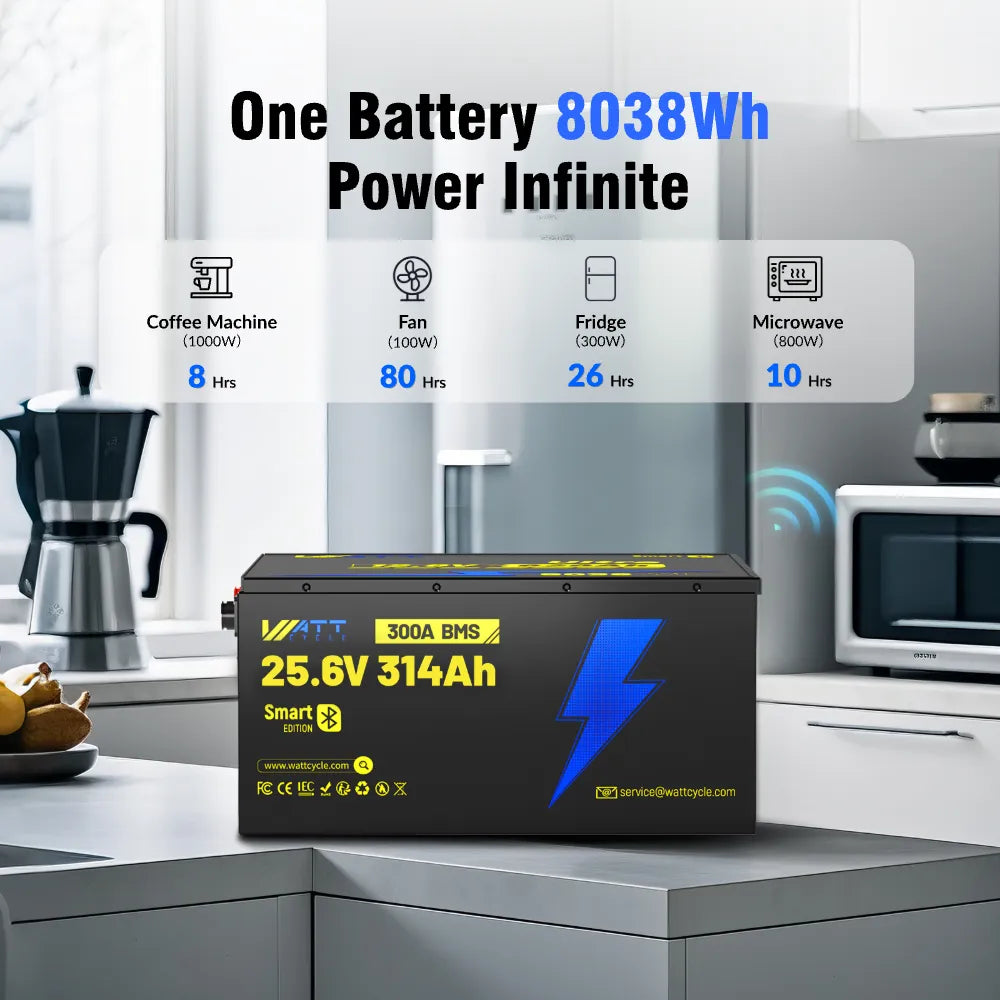

Powerful Capacity in a Compact Package
WattCycle 24V 314Ah Ultra Lithium Battery, delivering an impressive 8 038 Wh of usable energy in a cabinet just 18.9″ × 14.25″ × 9.53″ and weighing only 153.99 lbs. This 24V 314Ah Lithium Battery brings high-density power to your RV, marine or off-grid system without the bulk of legacy setups. Its slim footprint makes installation a breeze, whether you’re retrofitting an existing panel or designing a new energy hub.

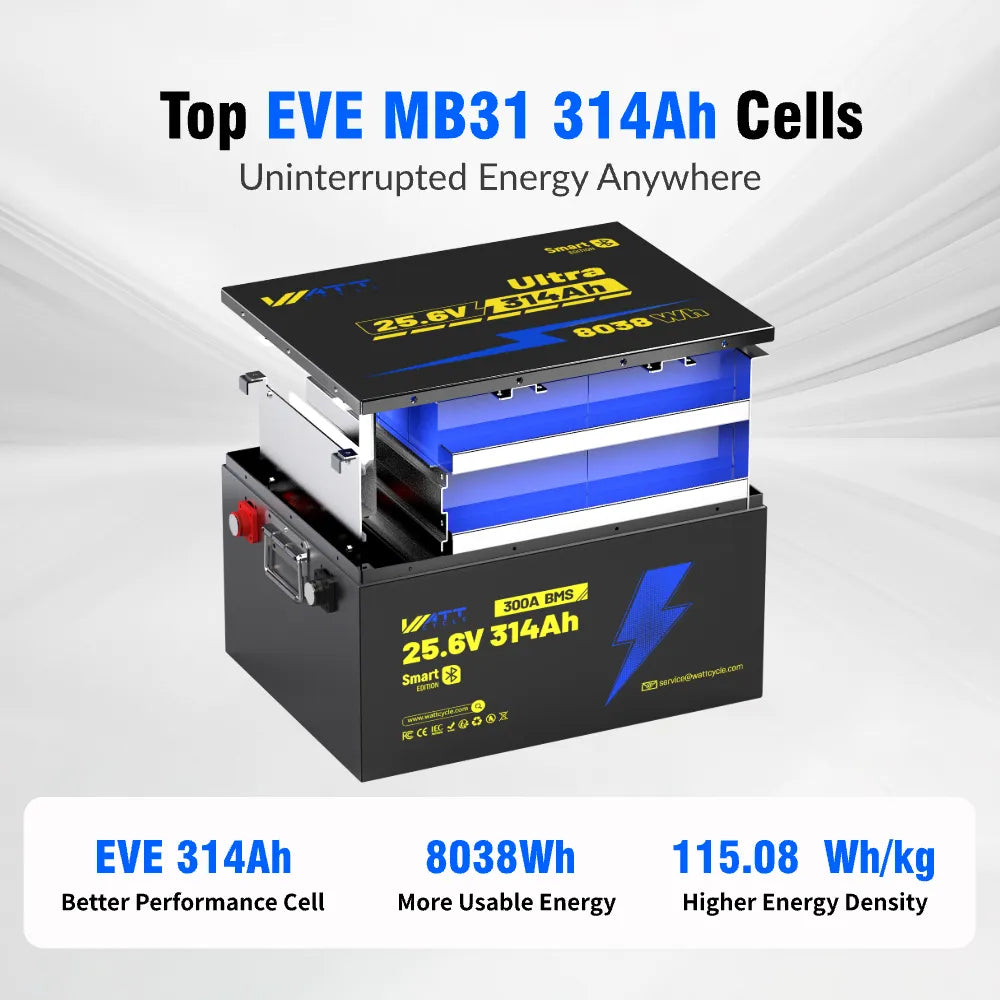

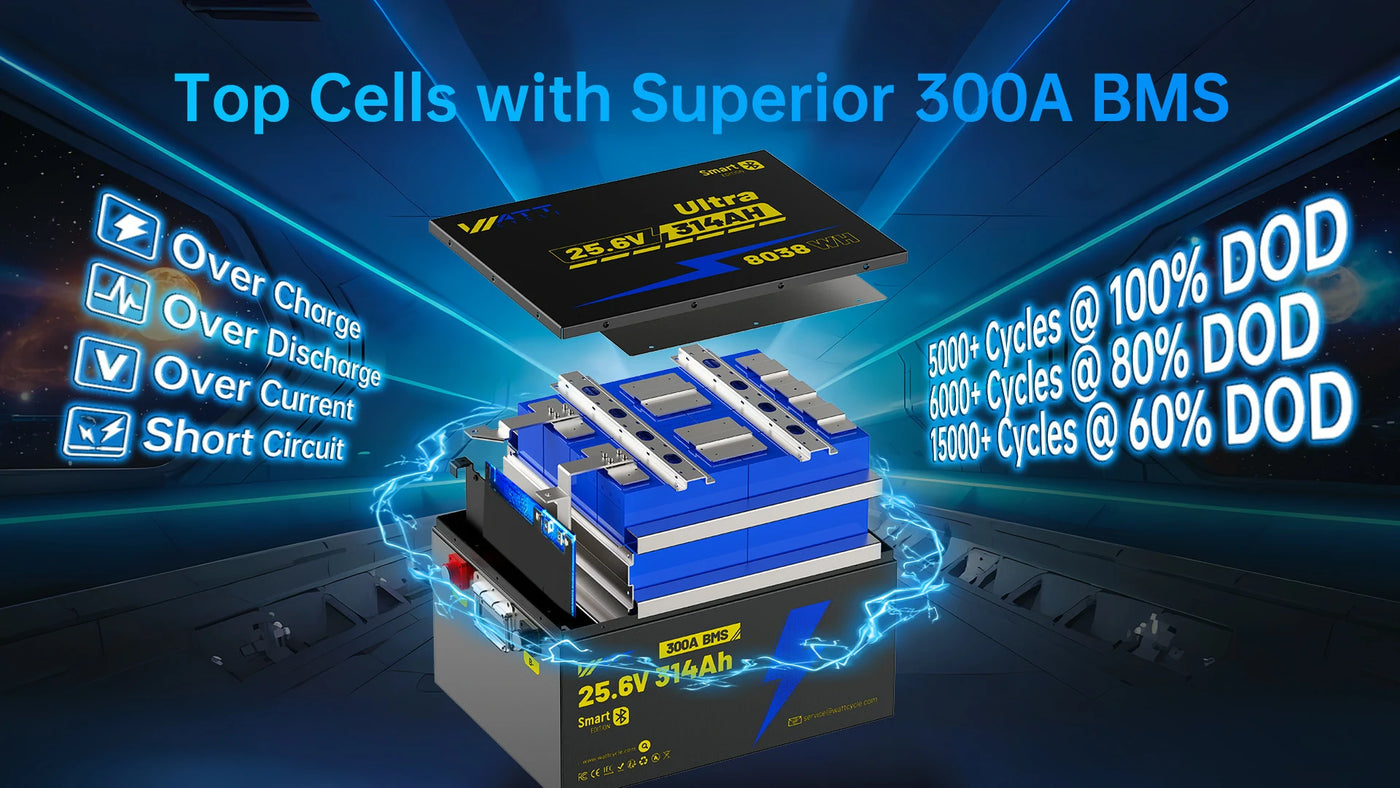

Premium Cell Chemistry with Smart Protections
Under the hood, WattCycle use EVE Grade A+ MB31 cells form the backbone of our 24V 314Ah LiFePO4 Battery, paired with a 300 A BMS that shields against over-current, short-circuit, over-charge and over-discharge events. You’ll enjoy up to 15 000 cycles and a decade-long service life—far beyond typical LiFePO4 modules. A solid aluminum frame and rugged ABS+PC casing (UL94 V‑0 rated) complete the military-grade build.

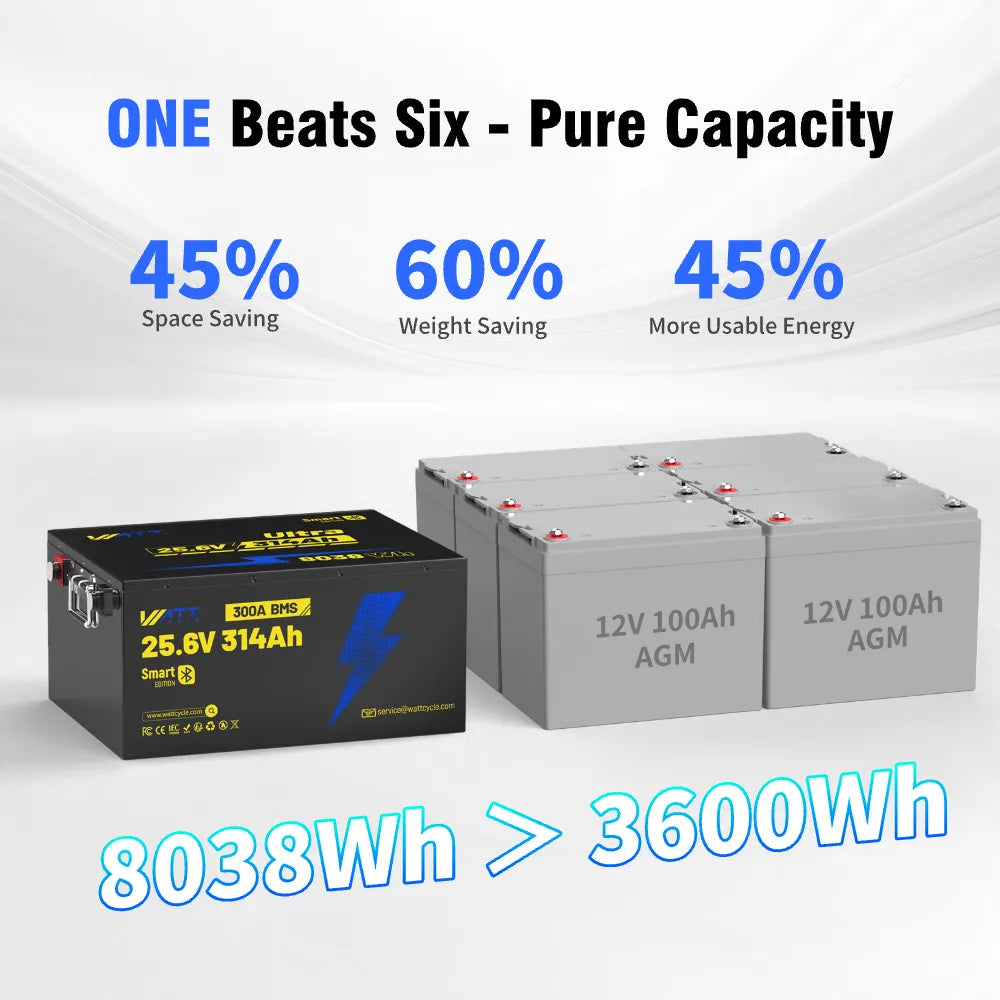

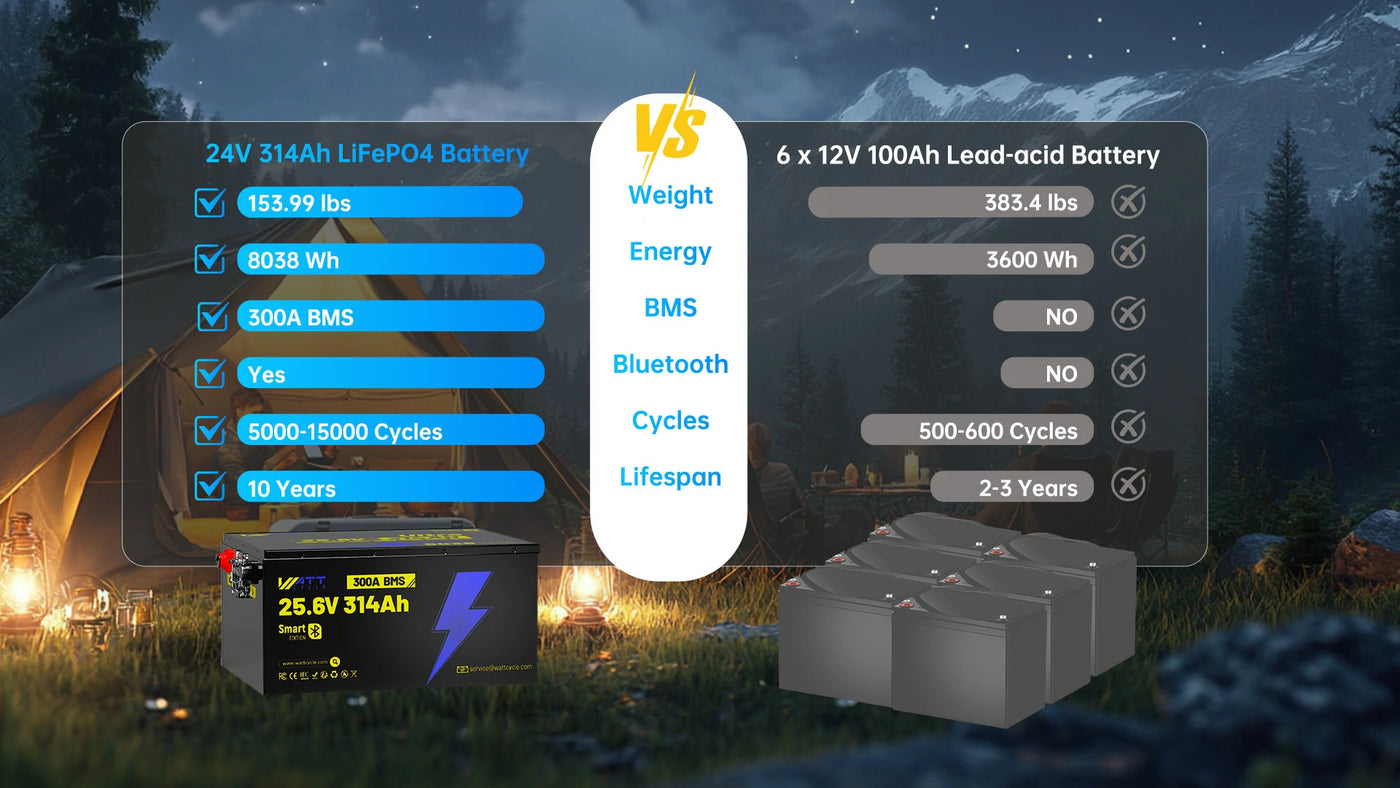

Leaner, Stronger Alternative to Lead-Acid
WattCycle 24V 314Ah Ultra Lithium Battery cuts weight by more than half while offering over 15% more energy and 3× the cycle life. Its consistent power output and sustained depth of discharge ensure you won’t be sidelined by sudden voltage sag or premature capacity loss. Upgrade to this 24V 314Ah Lithium Battery and feel the difference in performance and durability.
Rock-Solid 300 A BMS for Heavy-Duty Use
A top-tier 300 A battery management system monitors each cell in real time, automatically halting unsafe conditions and preserving your investment. With eight layers of protection—thermal, over-current, short-circuit, cell-imbalance and more—you can push heavy inverters and motors up to 7 680 W without hesitation. It’s safety and power hand in hand for demanding applications.

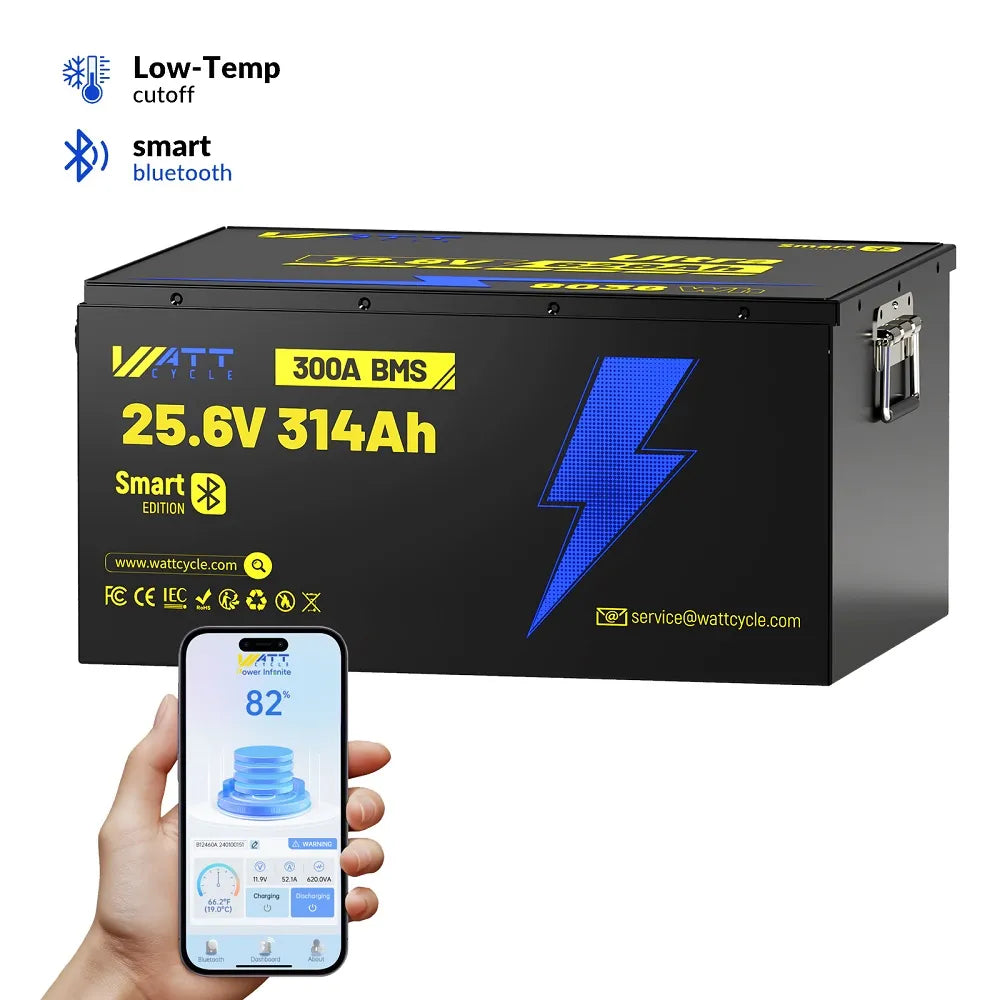

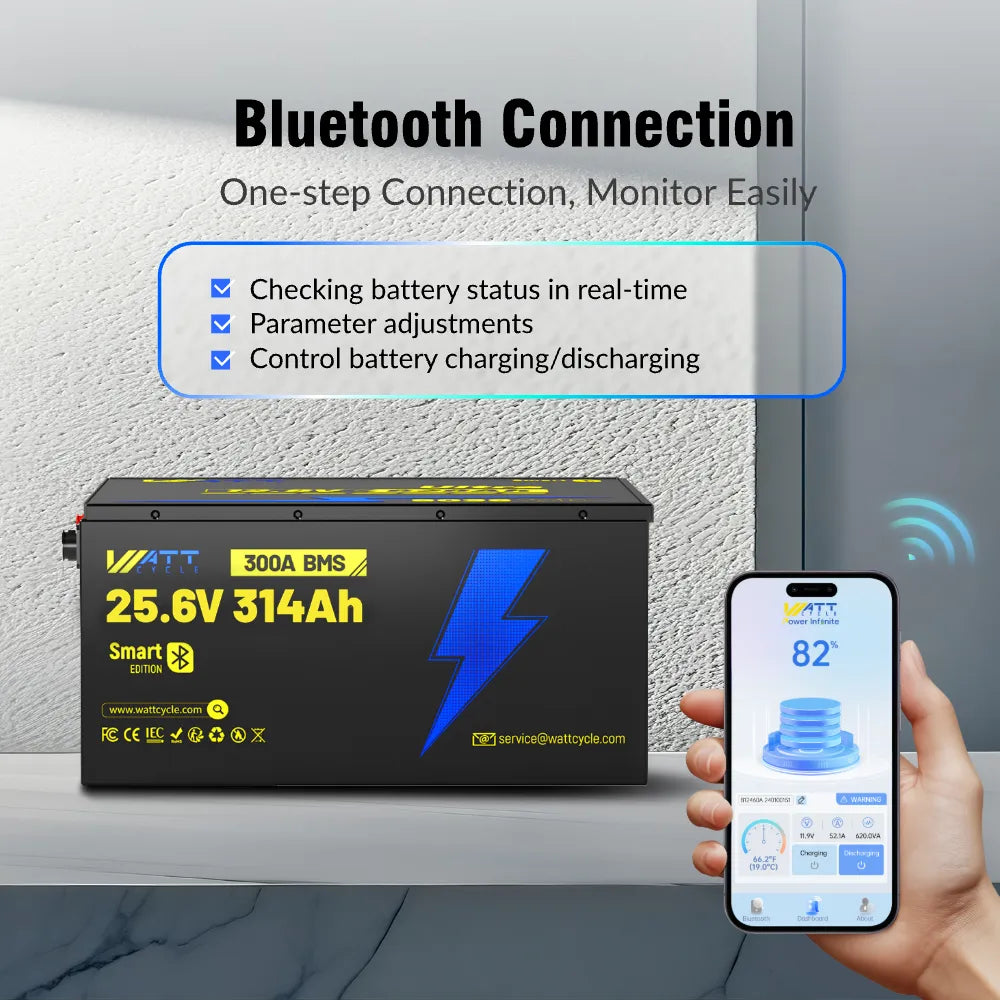

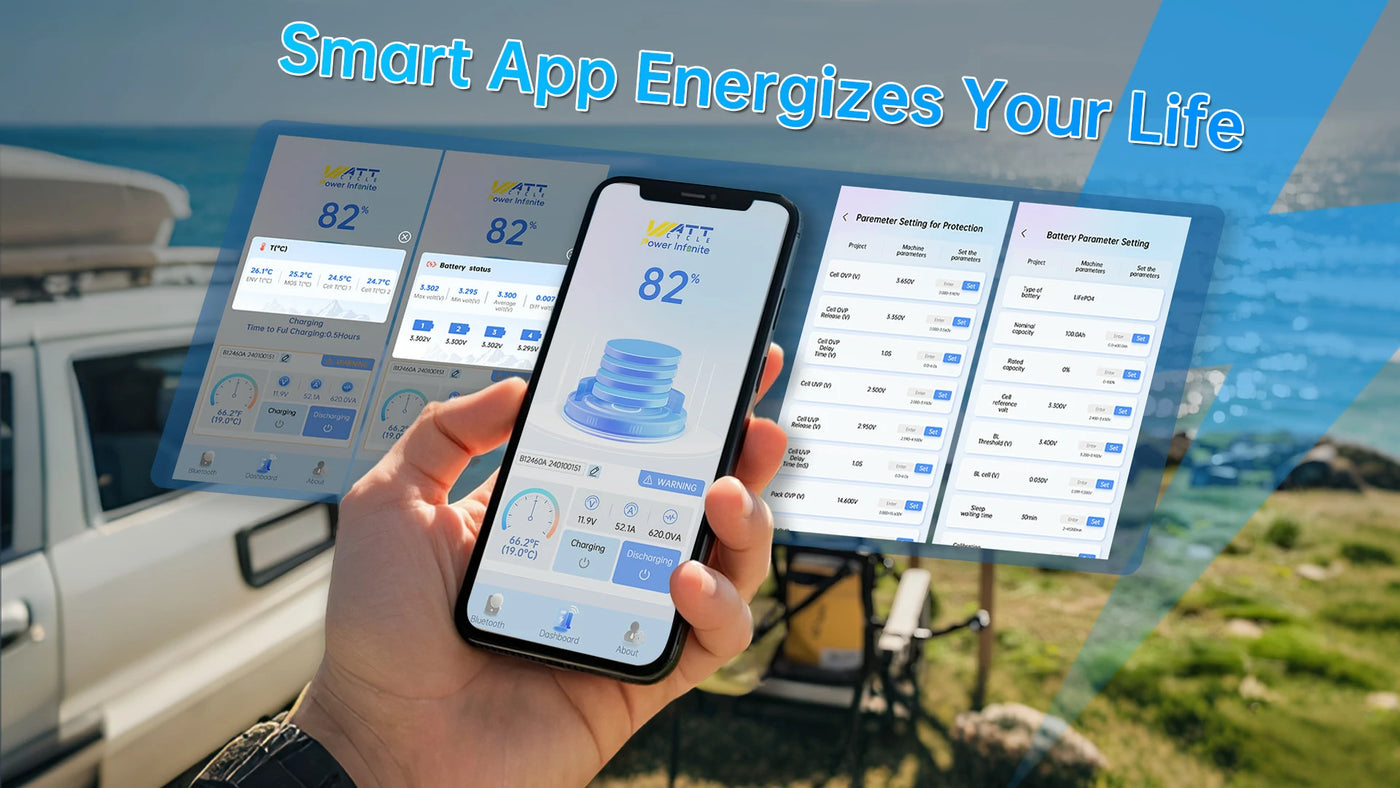

Real-Time Monitoring via Bluetooth
Stay in control with Bluetooth 5.0 connectivity and the WattCycle mobile app. Check voltage, state of charge (SoC), temperature and health metrics right from your smartphone—no extra hardware needed. Whether you’re on-site or miles away, this 24V 314Ah Ultra Lithium Battery keeps you informed so you can plan charging cycles and maintenance around your schedule.

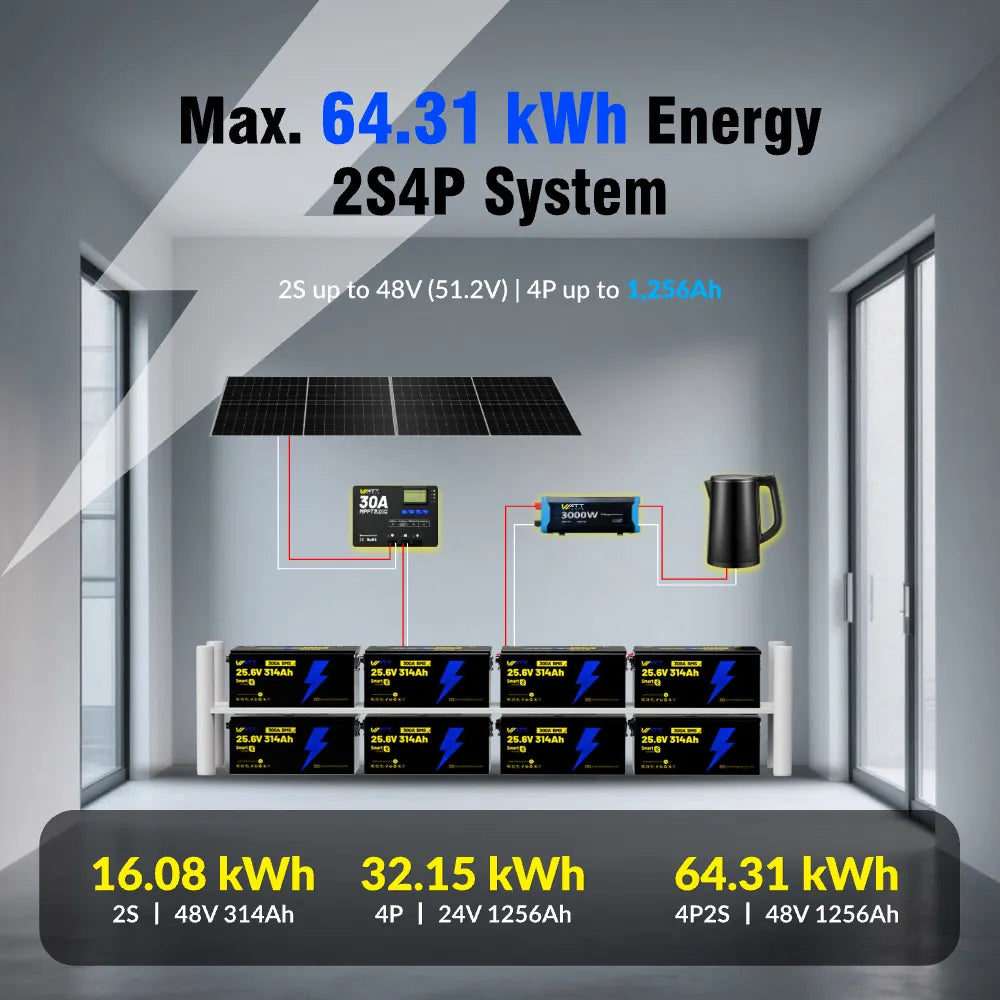

Flexible, Scalable Energy Architectures

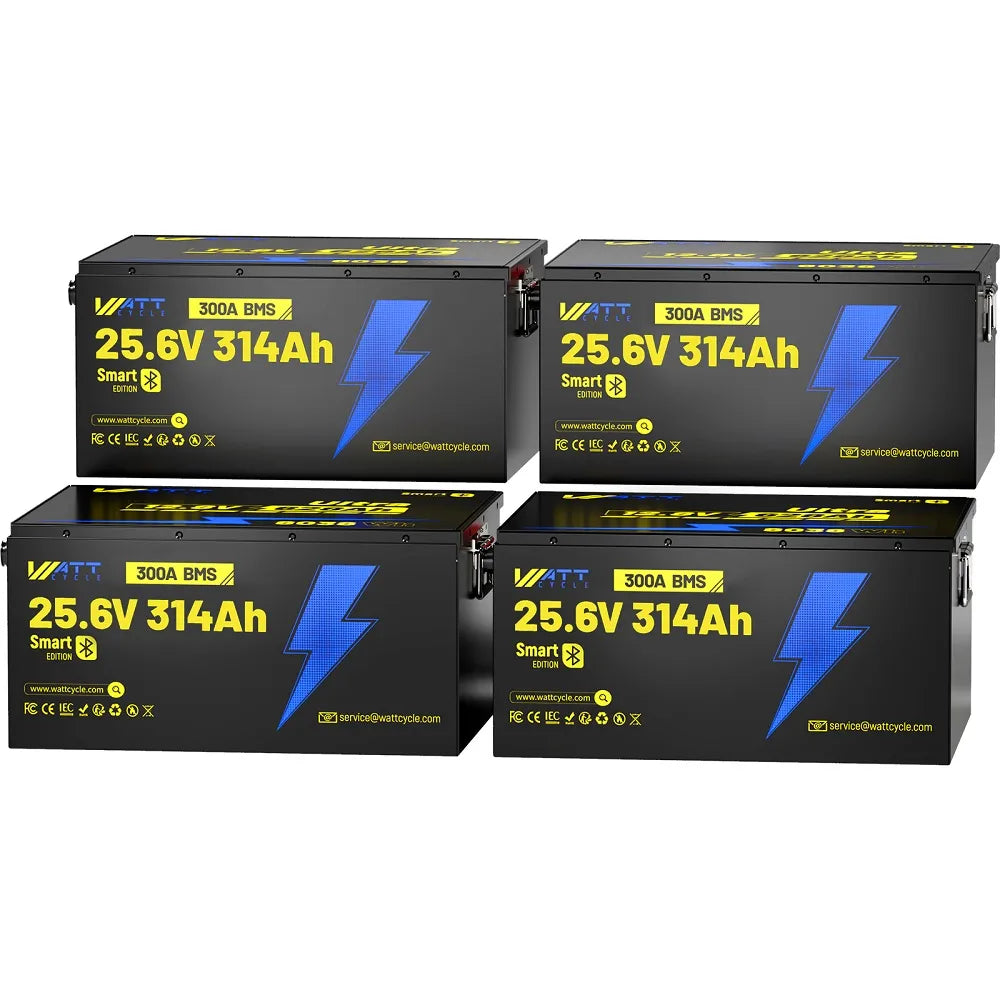

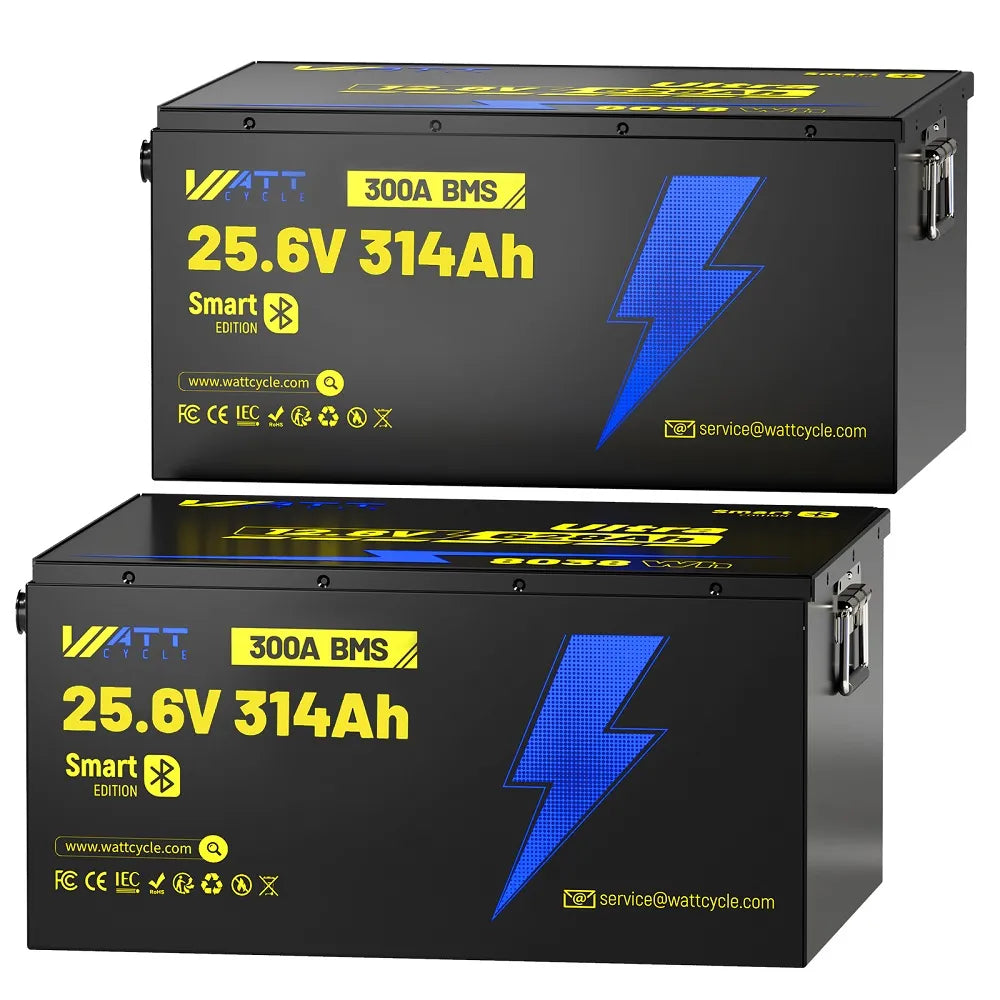

Design your ideal system with up to 2 series by 4 parallel configurations—build a 51.2 V, 1 256 Ah powerhouse for a maximum 64.31 kWh usable bank. Need more peak power? Support up to 15.36 kW of continuous load. From a single 24V 314Ah LiFePO4 Battery to a full rack, WattCycle scales with your needs

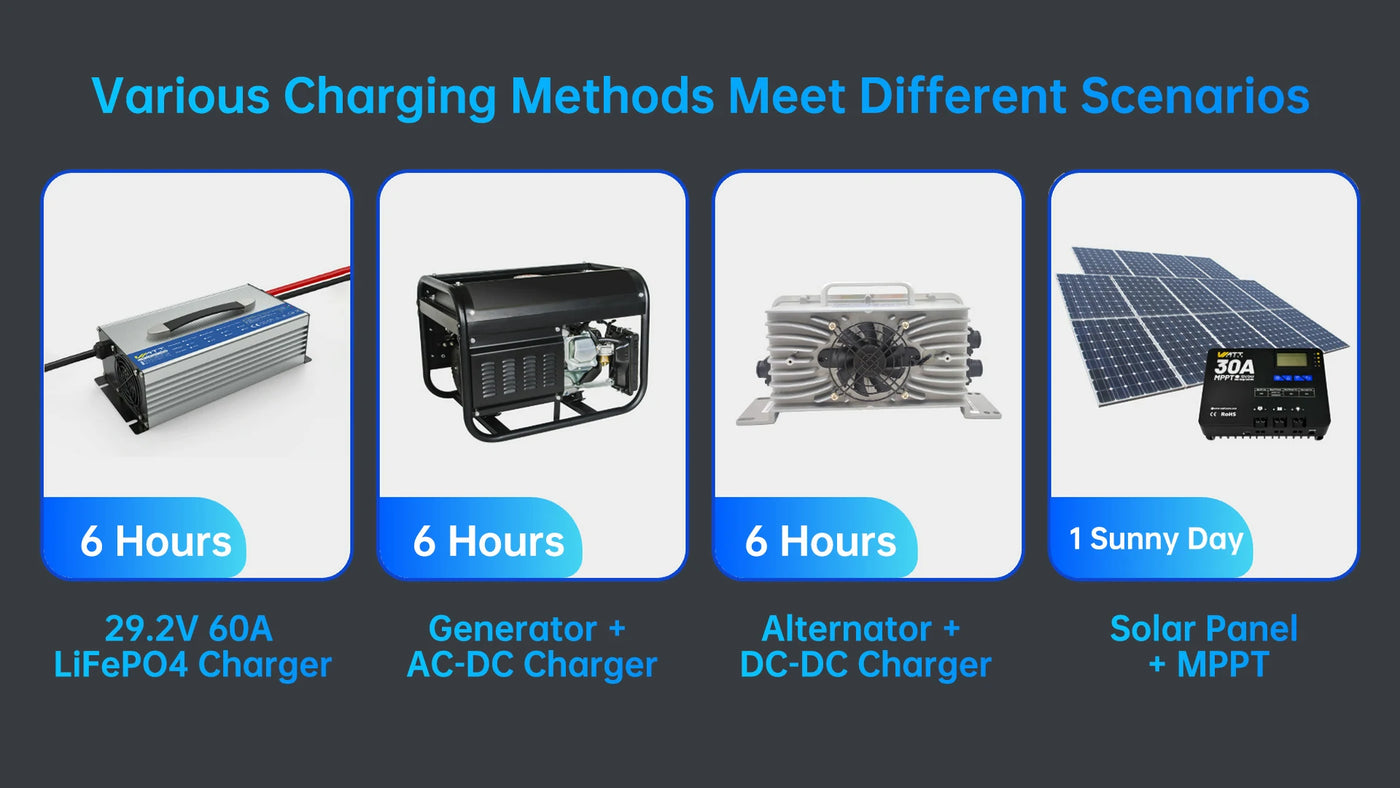

Four Speedy Charging Pathways
Power back up in hours, not days. Our dedicated 29.2 V, 60 A charger brings your battery to full in just six hours. Prefer solar? Pair with an MPPT controller and a suitably sized panel for recharging in roughly one daylight cycle. Generator plus AC-DC charger and alternator plus DC-DC converter each refill in six hours, giving you choice and resilience in any location.
Versatile Applications for Every Scenario
From home‑backup and off-grid cabins to marine vessels, RVs and critical UPS systems, the WattCycle 24V 314Ah Ultra Lithium Battery delivers steadfast performance. Its lightweight form factor streamlines installation in boats and campers, while the robust design endures rugged outdoor use. Wherever dependable, long-lasting energy is needed, this battery stands ready.
Tech Specs
| Dimensions | 18.9 X 14.25 X 9.53 inch | 480 X 362 X 242 mm |
| Weight | 153.99 lbs | 69.85 kg |
| Standard/Maximum Continuous Charging | 62.8A/300A |
| Maximum Continuous Discharging | 300A |
| Over-current Discharge Protection | 310A±10A |
| Over-current Charge Protection | 310A±10A |
| Short-Circuir Current Protection | Support |
| Release Condition | Cut Load |
| Charging High Temperature Protection | 140°F~158°F / 60°C~70°C |
| Discharge High Temperature Protection | 149°F~167°F / 65°C~75°C |
| High Temperature Protection Release Condition | Drop by 41°F~59°F / 5°C~15°C |
| Charging Low Temperature Protection | 23°F~41°F / -5°C~5°C |
| Discharge Low Temperature Protection | -13°F~5°F / -25°C~-15°C |
| Low Temperature Protection Release Condition | Rise by 41°F~59°F / 5°C~15°C |
| Rated Voltage | 25.6V |
| Standard Charging Voltage | 29.2V±0.2V |
| Shipping Charging Voltage | 25.6V~29.2V |
| Shipping Capacity | 50% |
| Cycle Life | 6000@80%DOD |
| Self Discharge Rate | <3%/Month |
| Series & Parallel Connections | 4 Parrallel(Max) 2 Series(Max) |
| Communications | Support |
| Case Material | ABS+PC/UL94 V-0 |
| Storage Temperature | 32°F~140°F/0°C~60°C |
| Terminal Bolt Size | M8 |
